Victron Shed Kit. 350 Watts of Solar Power, Victron Smart MPPT, Cable, Mounting & Gland. SH13

SKU: SH13-P-100/20
£778.00 £599.95 SAVE £178.05
IN STOCK
ORDERS ARE TYPICALLY DELIVERED WITHIN 1-3 BUSINESS DAYS.

Panel type: 2 x 175 Watt Polycrystalline Solar Panel

2 x 175 Watt Polycrystalline Solar Panel
2 x 175 Watt Monocrystalline Solar Panel
FREE TRACKED DELIVERY OVER £100
NEXT DAY DELIVERY AVAILABLE BEFORE MIDDAY
COLLECT FROM OUR WAREHOUSE FOR FREE
Product Details

This is a powerful solar panel kit for sheds or small off-grid requirements and is good for general needs. This solar kit is ideal for keeping your Leisure battery charged. The panel measurements are 1485mm by 668mm per panel, however, you will need to see the image attached for sizing for when installing these with corner mounts..

What is the difference between monocrystalline and polycrystalline solar panels?

The main difference between the two technologies is in the crystal purity of the panel cells. Monocrystalline solar panels have solar cells made from a single crystal of silicon while polycrystalline solar panels have solar cells made from several fragments of silicon melted together. The crystalline purity of the cells of monocrystalline solar panels is therefore much higher than that of polycrystalline solar panels.

The SmartSolar MMPT charge controllers are great especially in case of a cloudy day, when the light changes continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to the PWM charge controllers. MPPT controllers maximise the energy to achieve full charge in the shortest possible time and maintains battery health extending its life. With the built-in Blue tooth technology, you can connect via victronconnect portal to monitor your system.

This kit is fairly easy to install if you have basic DIY skills. We are always on hand to help if you need some guidance. There are a few handy videos for installation for you to watch if you need a few handy tips for installation.

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

Day/night timing of the load output This option allows for a pre-set ON-time after dusk. Programmable battery charge algorithm Pre-programmed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only) Two 5 Volt USB outputs Maximum current (both outputs combined): 2A

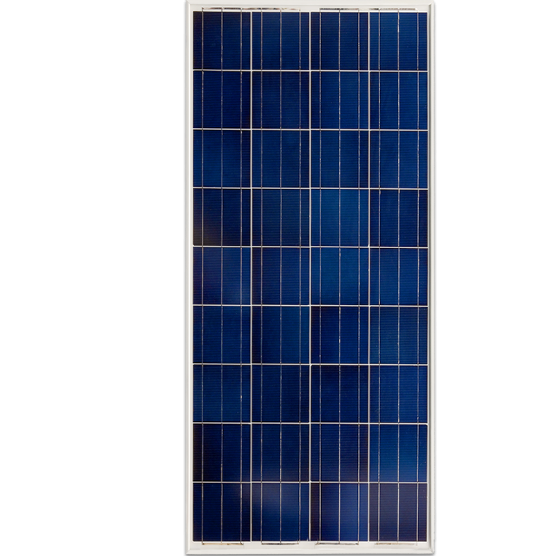

Victron 175watt solar panels

Low voltage-temperature coefficient enhances high-temperature operation.
Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance.
5-Year Limited Warranty on materials and workmanship.
Sealed, waterproof, multi-functional junction box gives a high level of safety.
High-performance bypass diodes minimize the power drop caused by shade.
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.

Whats in the Box

  • Victron 2 X 175 Watt solar panel
  • Victron 100/30 smart MPPT solar charge controller
  • CT1 Adhesive Sealer White
  • 2 X 6 piece roof fixings including cable gland
  • 1 x pair of 5m solar extensions with MC4's
  • 4 way fuse holder and fuses
  • 2 x pin connectors
  • Drawing
  • Panel fitting guide

Please feel free to call us on 01626 905454 where we will be able to offer you some assistance.
