Build your perfect shed solar setup
Bespoke Shed Solar Kit Builder
Choose the blocks that match how you use your shed, garden office or workshop. Each option adds a curated set of compatible products, so you can build a complete shed power system rather than picking individual parts.
Solar System Required
Choose the right solar panels for your shed, garden office or workshop. Each option includes a compatible Victron MPPT solar charge controller and the core install parts needed to connect the panel to the battery system.
Not sure? Choose the largest panel setup that physically fits your shed roof and suits how often you use the space.

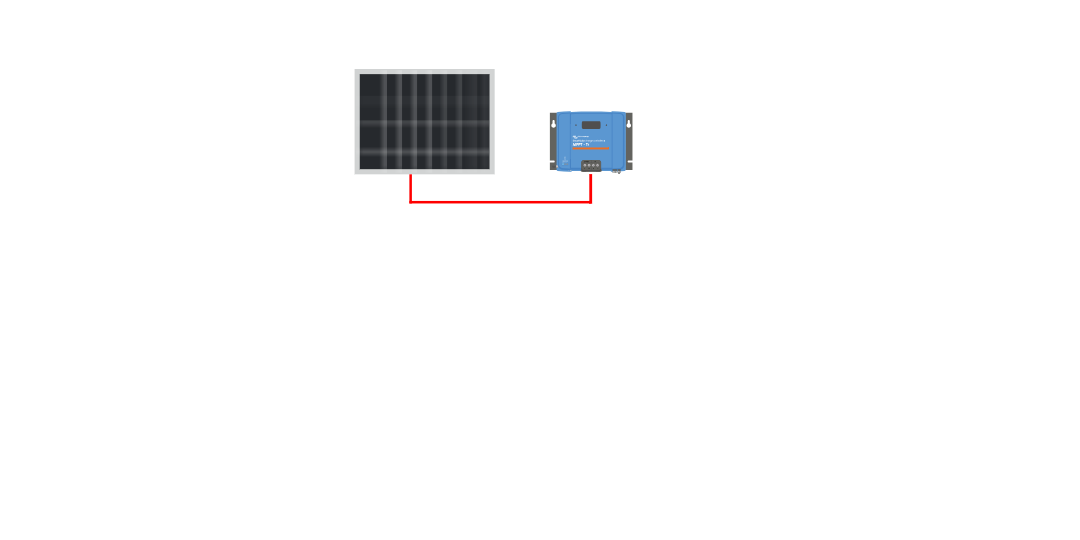

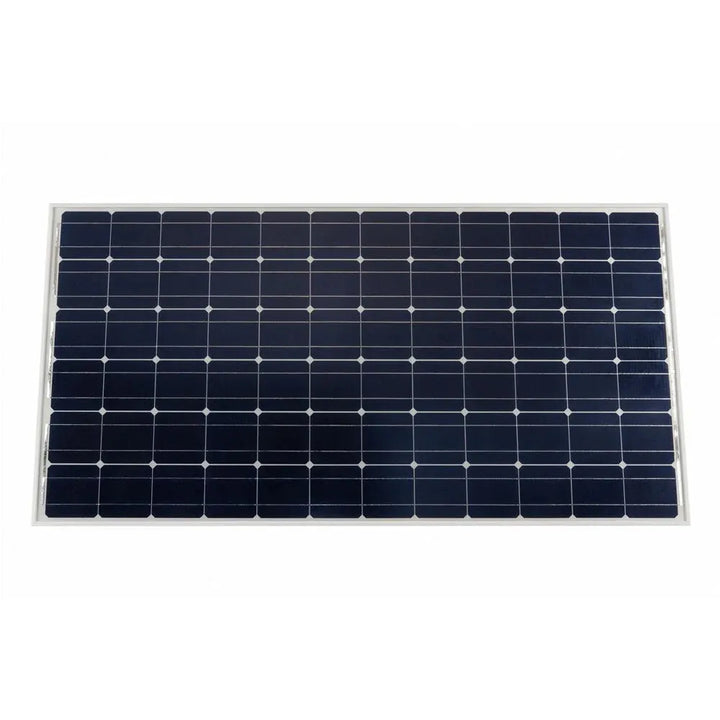

Victron 190W Solar Panel (1485 x 668 x 30mm)
Compact shed roof
This is a 190 watt Victron solar panel for compact shed roof spaces. It pairs with the Victron SmartSolar 75/15 MPPT solar charge controller and includes the matching cable and fuse parts.
Also included 6 more
Victron MPPT 75/15 - SmartSolar Charge Controller Solar Extension PAIR OF 5M Solar Extension cables complete with MC4 one end Victron Energy Fuse holder for MIDI-fuse Midi Fuse 30A 32V 6mm2 Single Core Thin Wall Cable Black - Per Metre ×4 6mm2 Single Core Thin Wall Cable Red - Per Metre ×4

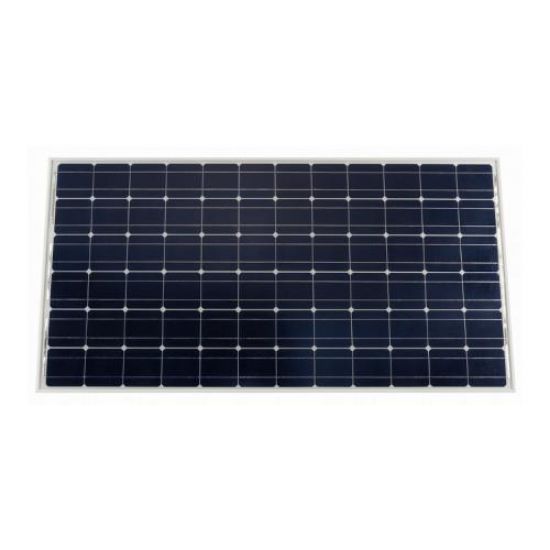

Victron 285W Solar Panel (1550 x 880 x 35mm)
Larger shed roof
This is a 285 watt Victron solar panel for larger shed, workshop or garden office roof spaces. It pairs with the Victron SmartSolar 100/30 MPPT solar charge controller.
Also included 6 more
Victron MPPT 100/30 - SmartSolar Charge Controller - SCC110030210 Solar Extension PAIR OF 5M Solar Extension cables complete with MC4 one end Victron Energy Fuse holder for MIDI-fuse Midi Fuse 40A 32V 10mm2 Single Core Thin Wall Cable Black - Per Metre ×4 10mm2 Single Core Thin Wall Cable Red - Per Metre ×4

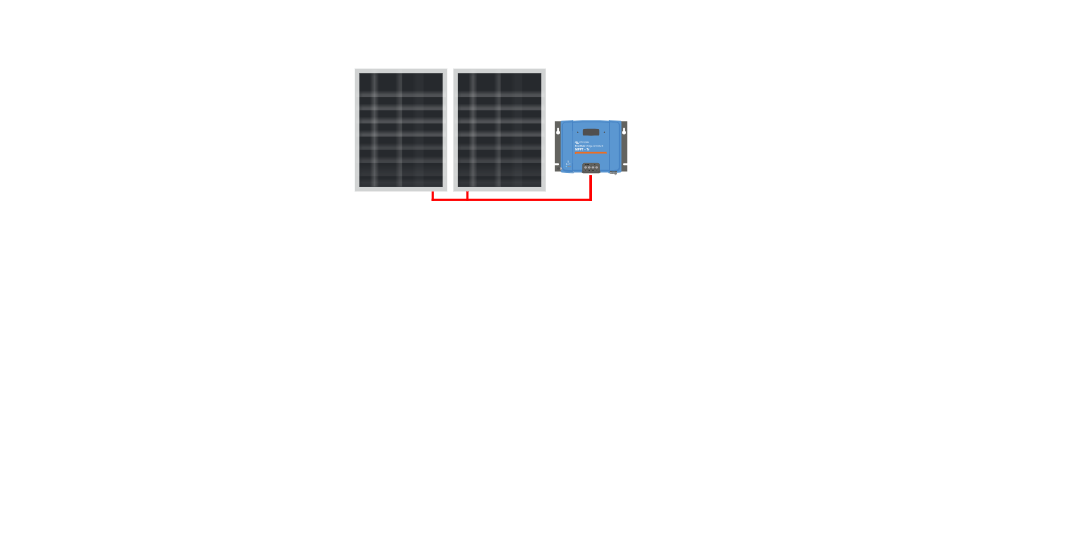

Victron 380W 2 x 190W Solar Panel Bundle (2 x 1485 x 668 x 30mm)
Twin shed panels
This is a 380 watt bundle made from 2 x 190W Victron solar panels for higher shed power demand. It pairs with the Victron SmartSolar 100/30 MPPT solar charge controller.
Also included 6 more
Victron MPPT 100/30 - SmartSolar Charge Controller - SCC110030210 Solar Extension PAIR OF 5M Solar Extension cables complete with MC4 one end Midi Fuse 40A 32V Victron Energy Fuse holder for MIDI-fuse 10mm2 Single Core Thin Wall Cable Black - Per Metre ×4 10mm2 Single Core Thin Wall Cable Red - Per Metre ×4

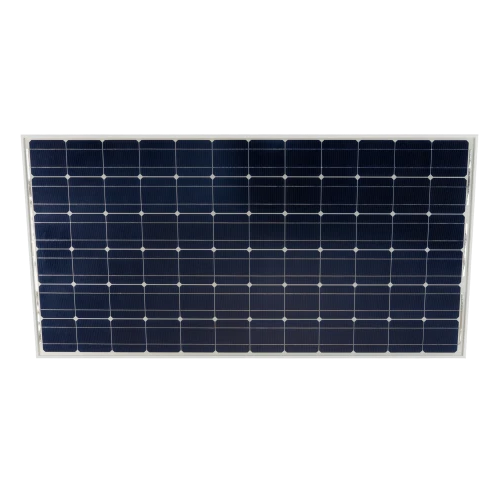

Victron 130W Solar Panel (1020 x 668 x 30mm)
Smallest shed panel
This is a 130 watt Victron solar panel for the smallest shed roof spaces or low-demand systems. It pairs with the Victron SmartSolar 75/15 MPPT solar charge controller.
Also included 6 more
Victron MPPT 75/15 - SmartSolar Charge Controller Solar Extension PAIR OF 5M Solar Extension cables complete with MC4 one end Midi Fuse 30A 32V Victron Energy Fuse holder for MIDI-fuse 6mm2 Single Core Thin Wall Cable Black - Per Metre ×4 6mm2 Single Core Thin Wall Cable Red - Per Metre ×4
Mounts & Fixings Optional
Select the brackets and fixings you need to secure your solar panels to a shed roof or suitable mounting surface.
Not sure? Single-panel solar options normally need one fixing kit; the twin-panel solar option normally needs a two-panel fixing kit.

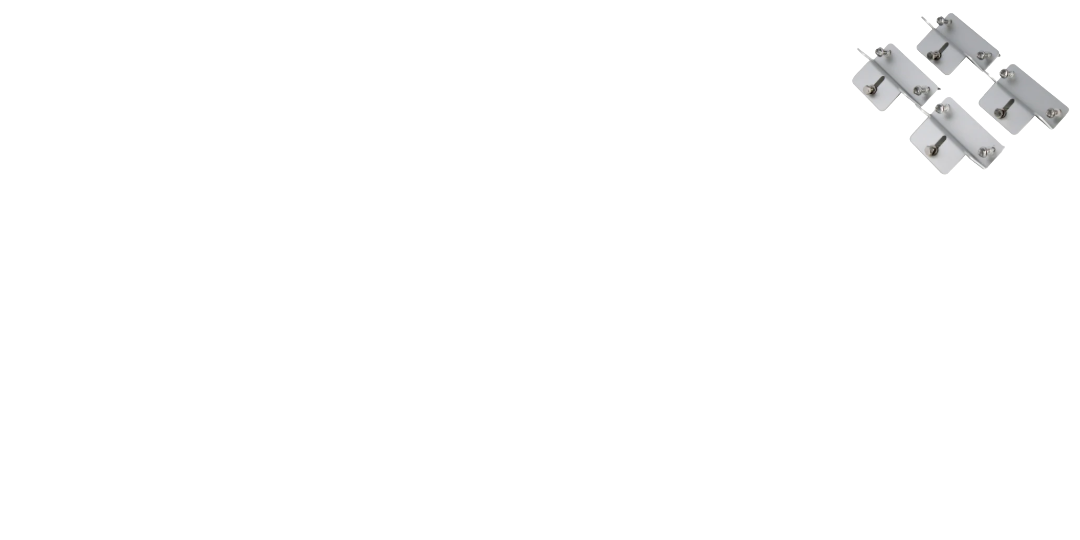

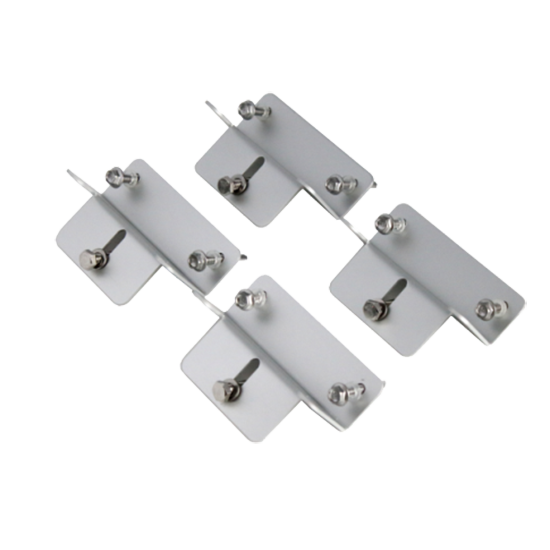

4 Aluminium Alloy Solar Panel Brackets x 1
1 shed panel
A thin-profile 4 piece aluminium solar panel bracket set for mounting one panel to a shed roof or suitable flat surface.
Adds to your kit
£9.95

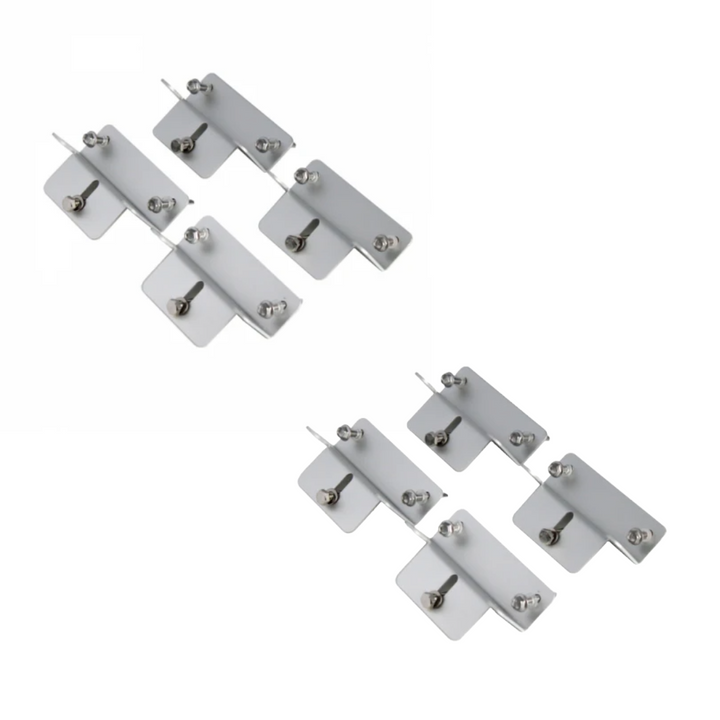

4 Aluminium Alloy Solar Panel Brackets x 2
2 shed panels
A two-pack aluminium bracket bundle for mounting two solar panels to a shed roof or suitable flat surface.
Adds to your kit
£19.90
Battery Optional
Choose the right battery storage for your shed solar system, from simple light-use batteries to higher-capacity lithium options.
Not sure? Lithium gives more usable capacity and longer cycle life; AGM and leisure batteries are lower-cost options for lighter shed use.
100Ah AGM Super Cycle
AGM shed use
This is a 100Ah 12V Victron AGM Super Cycle battery. It is suited to light shed, garden office or weekend workshop usage.
Adds to your kit
£174.20

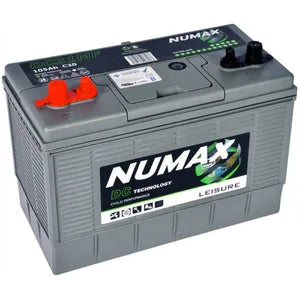

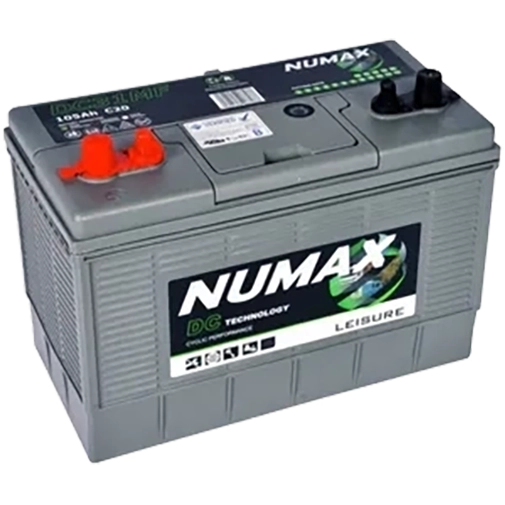

105Ah Leisure Battery
Light shed use
This is a 105Ah 12V Numax leisure battery. It is suited to lighter shed loads such as LED lighting, small chargers and occasional use.
Adds to your kit
£108.15

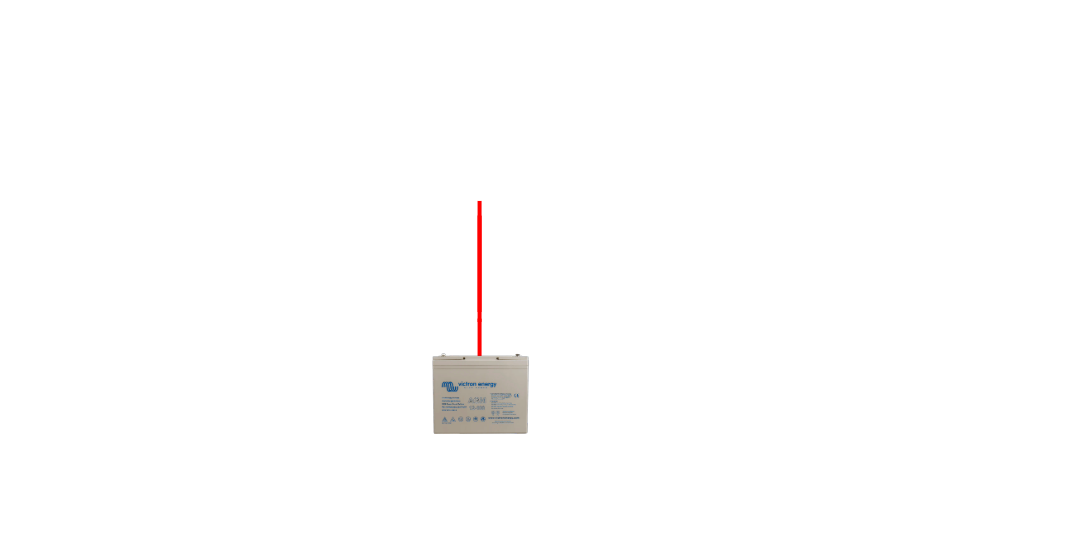

100Ah Victron Lithium SuperPack
Lithium shed option
This is a 100Ah Victron lithium battery option for shed systems where lower weight, higher usable capacity and lithium performance are preferred.
Adds to your kit
£404.75

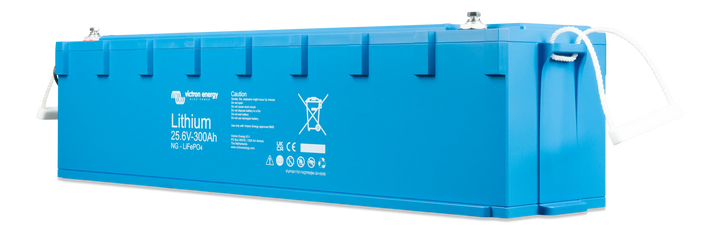

300Ah Victron Lithium NG Battery & BMS
High-capacity lithium
This is a high-capacity Victron Lithium NG battery option supplied with the matching Victron VE.Bus BMS NG for larger shed, garden office or workshop power systems.
Also included 1 more
Victron VE.Bus BMS NG - BMS300200300

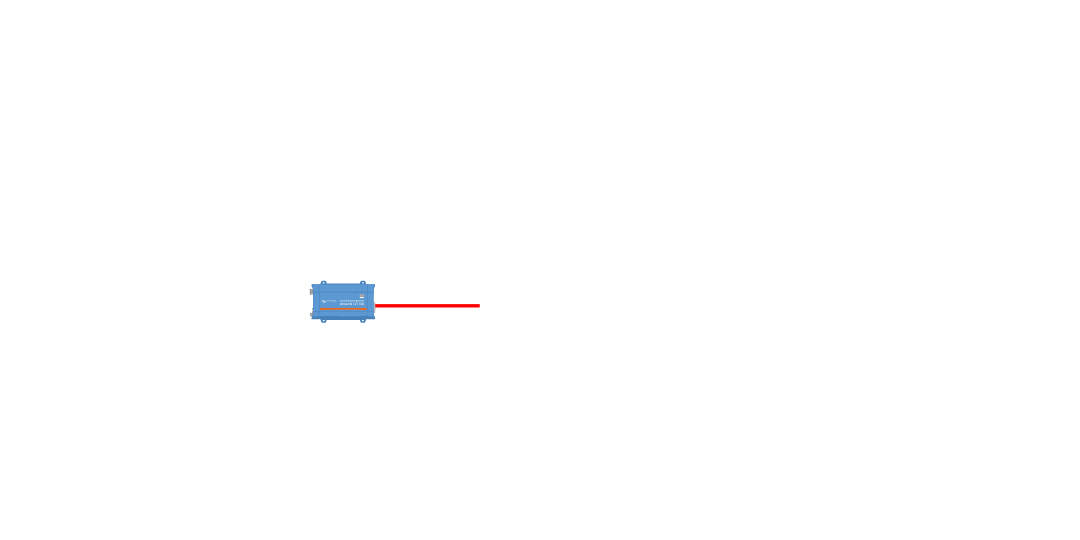

Inverter or Inverter/Charger Optional
Add an inverter if you need 230V AC power in your shed, garden office or workshop from your battery system.
Not sure? Choose based on the largest 230V appliance, charger or tool you want to run. Higher-power tools may need a larger inverter and battery bank.

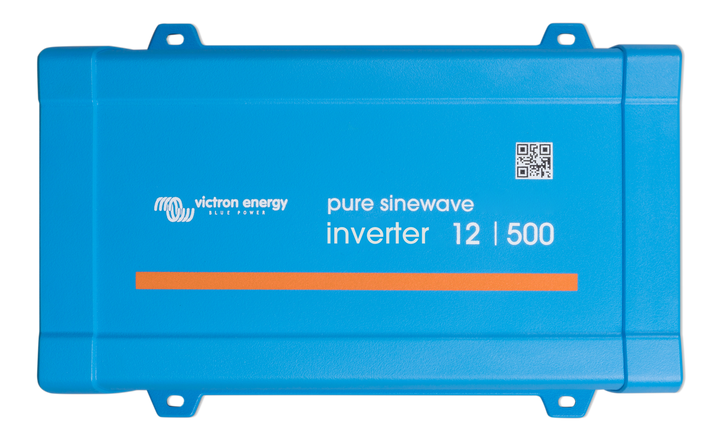

500VA Inverter
400W output
This 500VA (400W) inverter is suitable for low-power shed loads such as laptops, small chargers, LED lighting and compact electronics. This is for 12V systems. Minimum recommended battery size: 60Ah.
Also included 3 more
Victron Energy Fuse holder for MIDI-fuse 10mm2 Single Core Thin Wall Cable Black - Per Metre 10mm2 Single Core Thin Wall Cable Red - Per Metre ×4

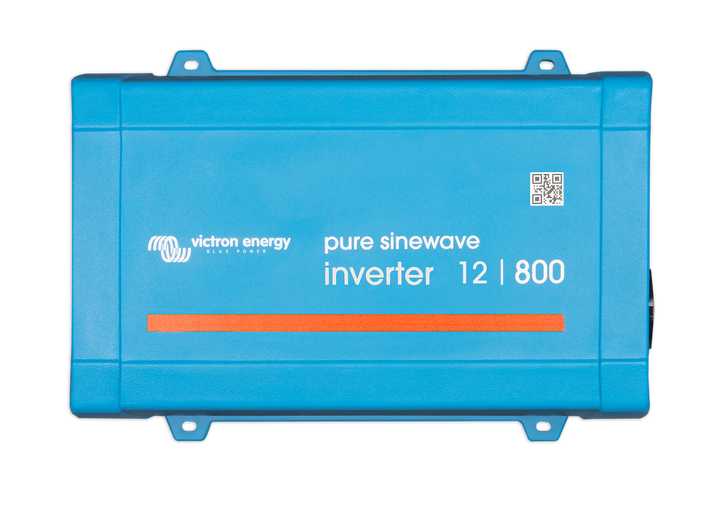

800VA Inverter
640W output
This 800VA (640W) inverter is suitable for medium shed loads such as larger chargers, screens, lighting circuits and small appliances. This is for 12V systems. Minimum recommended battery size: 100Ah.
Also included 4 more
Victron 150A 32V MIDI-Fuse - Single Piece Victron Energy Fuse holder for MIDI-fuse 25mm² DC Cable Black - Per Meter ×4 25mm² DC Cable Red - Per Meter ×4

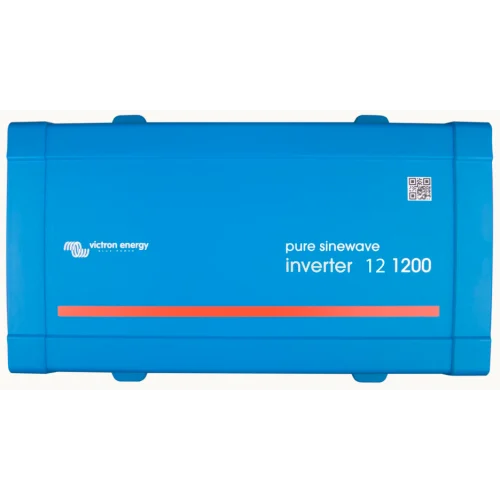

1200VA Inverter
960W output
This 1200VA (960W) inverter is suitable for shed systems that need a little more power, such as computers, printers, tool chargers and small workshop equipment. This is for 12V systems. Minimum recommended battery size: 150Ah.
Also included 4 more
Victron Energy Fuse holder for MEGA-fuse MEGA-fuse 200A/80V (Single pc) 25mm² DC Cable Black - Per Meter ×4 25mm² DC Cable Red - Per Meter ×4

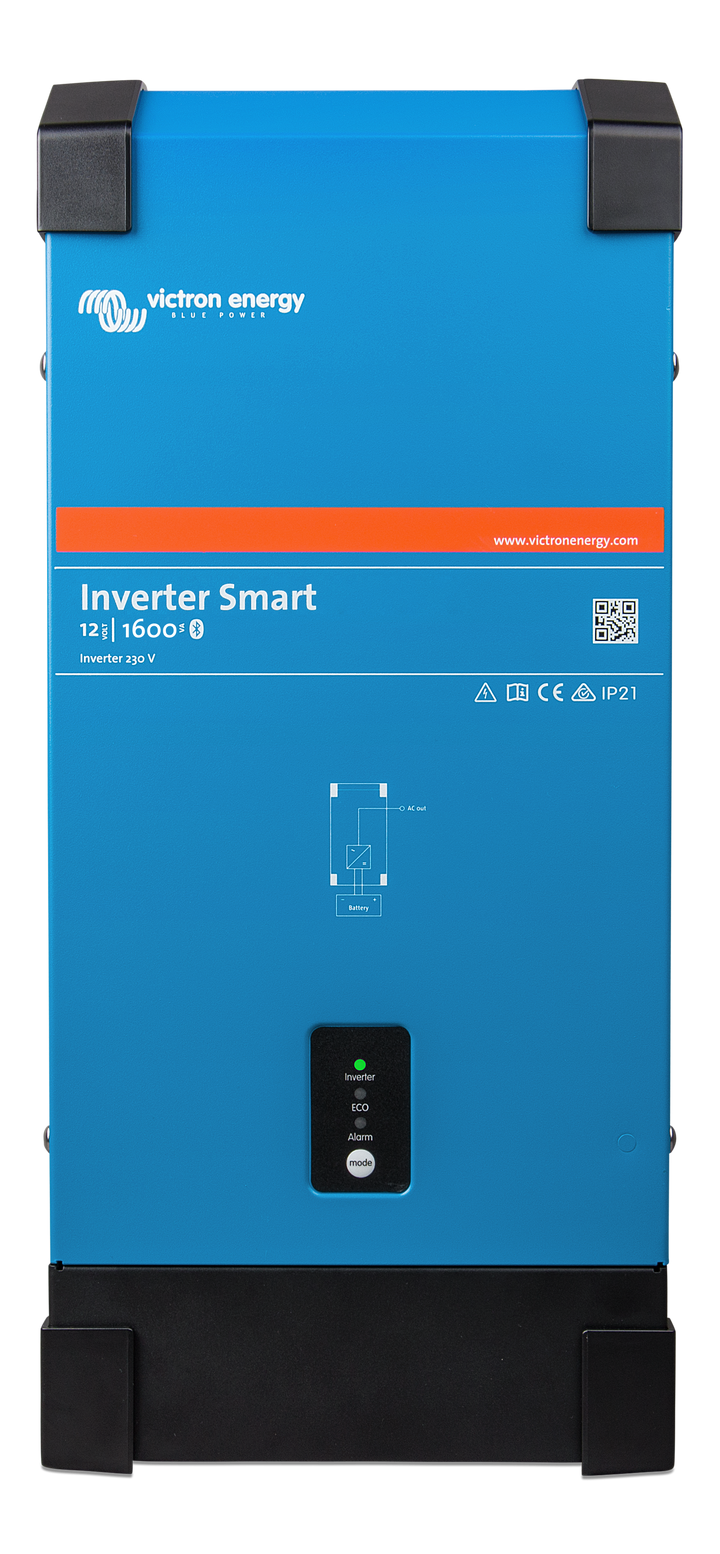

1600VA Inverter
1280W output
This 1600VA (1280W) inverter is suitable for larger shed, workshop or garden office loads. This is for 12V systems. Minimum recommended battery size: 300Ah.
Also included 3 more
Victron Energy Fuse holder for MEGA-fuse 70mm² DC Cable Black - Per Meter 70mm² DC Cable Red - Per Meter ×4

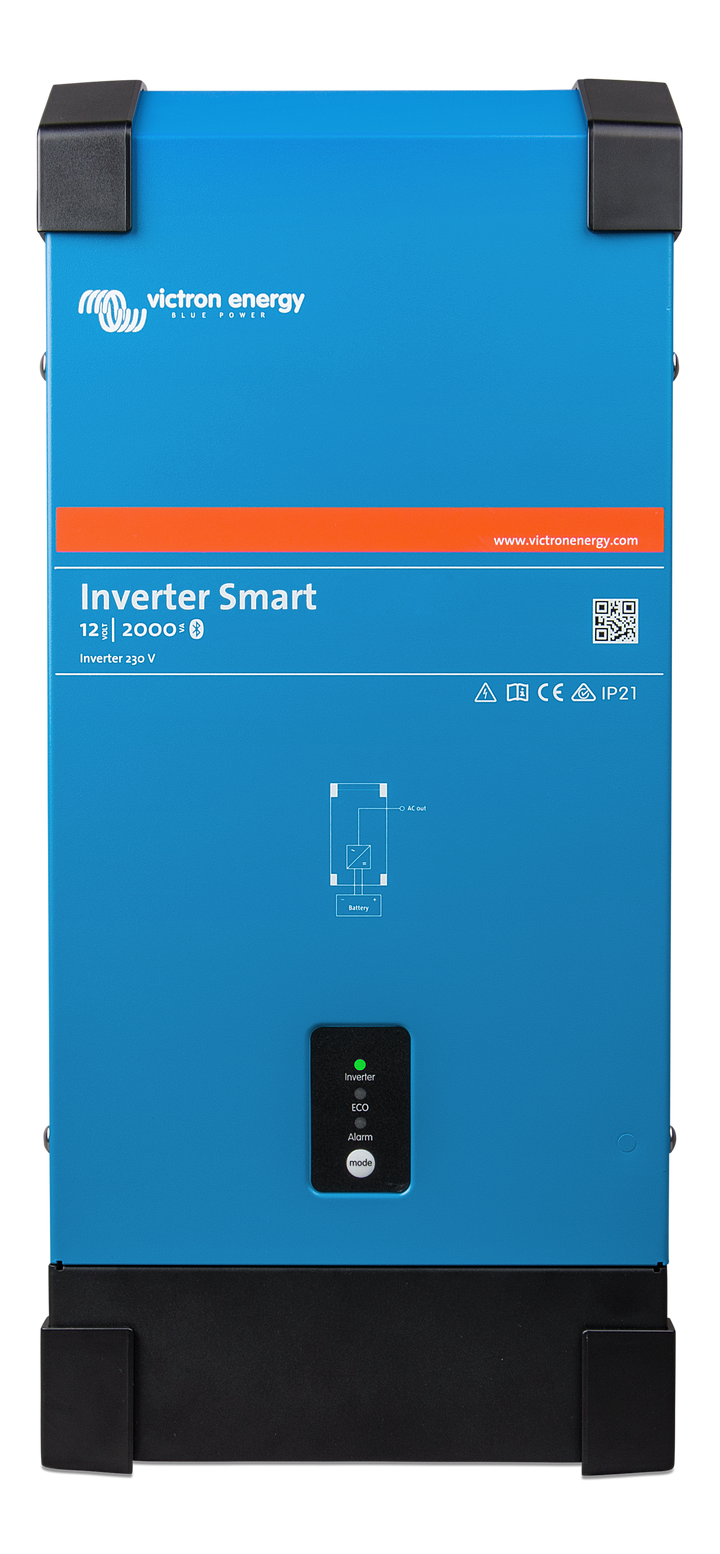

2000VA Inverter
1600W output
This 2000VA (1600W) inverter is suitable for larger 230V shed loads where a higher output is required. This is for 12V systems. Minimum recommended battery size: 350Ah.
Also included 3 more
Victron Energy Fuse holder for MEGA-fuse 70mm² DC Cable Black - Per Meter 70mm² DC Cable Red - Per Meter ×4

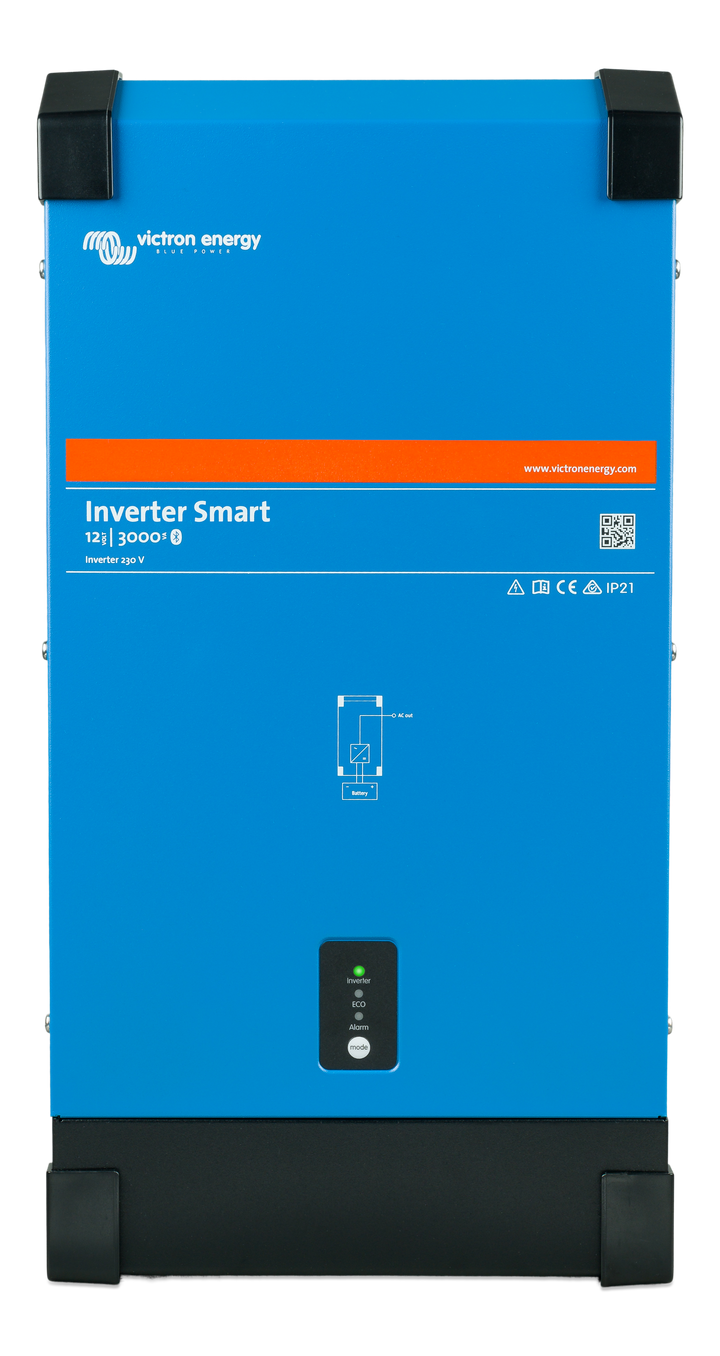

3000VA Inverter
2400W output
This 3000VA (2400W) inverter is suitable for high-demand shed or workshop systems with larger 230V loads. This is for 12V systems. Minimum recommended battery size: 400Ah.
Also included 4 more
MEGA-fuse 400A/80V (Single pc) Victron Energy Fuse holder for MEGA-fuse 95mm² DC Cable Black - Per Meter ×4 95mm² DC Cable Red - Per Meter ×4
Battery Monitoring Optional
Add battery monitoring so you can see the state of charge and keep track of your shed power system.
Not sure? A monitor is useful for avoiding over-discharge, especially when powering a shed, workshop or garden office off-grid.

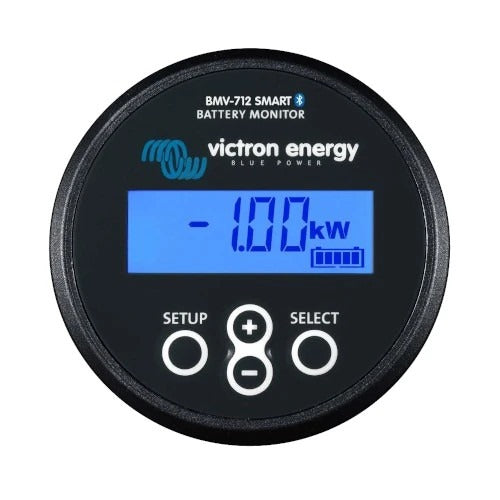

Victron BMV-712 Smart Battery Monitor - Black
Display + Bluetooth
A Victron BMV-712 Smart battery monitor with display and Bluetooth for keeping track of your shed battery bank.
Adds to your kit
£101.51
Victron Lynx Shunt Battery Monitor
Lynx system
A Victron Lynx Shunt battery monitor with built-in fuse holder, suited to larger or more advanced shed power systems using a GX device.
Adds to your kit
£0.00

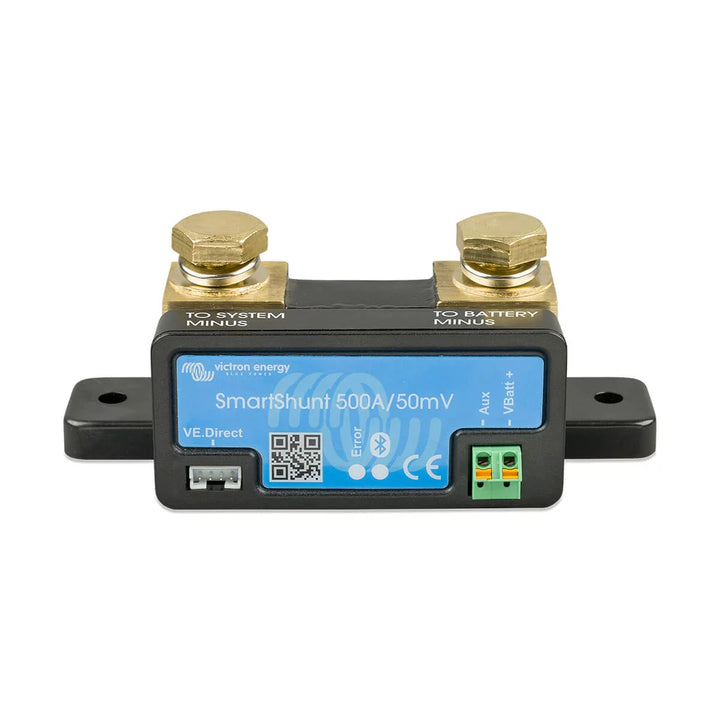

Victron Smart Shunt
No display
A Victron SmartShunt battery monitor with Bluetooth app monitoring and no separate display, suited to neat shed installations.
Adds to your kit
£68.96
Accessories Optional
Finish your shed kit with optional extras for system monitoring and future expansion.
Optional extras for more advanced shed, workshop or garden office systems.
Victron Cerbo GX & Victron GX Touch 50
GX Touch 50
A Victron Cerbo GX with GX Touch 50 display for monitoring and managing your shed power system.
Also included 1 more
Victron Cerbo GX MK2 Monitoring System
Victron Cerbo GX & Victron GX Touch 70
GX Touch 70
A Victron Cerbo GX with GX Touch 70 display for monitoring and managing larger shed, workshop or garden office systems.
Also included 1 more
Victron Cerbo GX MK2 Monitoring SystemFinal step
Review your bespoke kit
Check every included product, confirm availability and add the complete system to your cart.
Your configuration and current total are ready. You can still go back and change any selection before adding the kit.
Included products
Loading your included products…
Complete compatible kit, checked against your configuration.
Request a free consultationComplete compatible kit—including required cables, fuses and connectors.
