12V/100Ah AGM Super Cycle Battery (M6) - BAT412110081

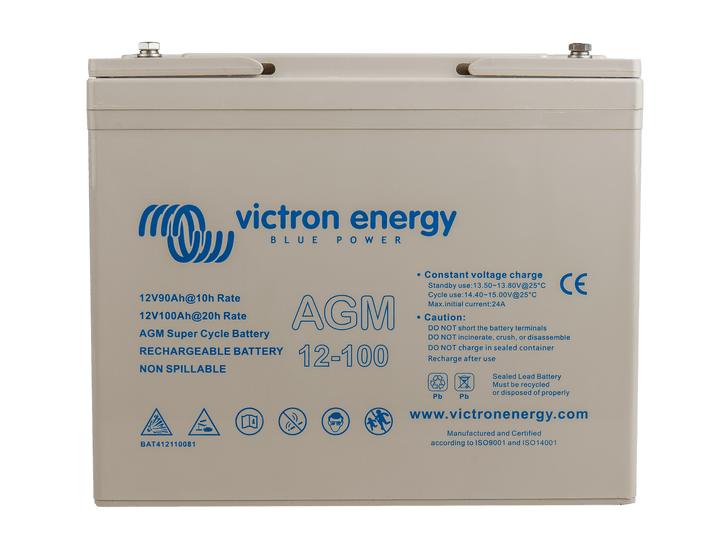

The Victron 12V/100Ah AGM Super Cycle Battery (M6) is engineered for demanding applications requiring deep cycling capabilities. With a design life of 7–10 years, this VRLA (Valve Regulated Lead Acid) battery is ideal for off-grid, marine, and backup power systems. It features a low internal resistance, making it suitable for high current discharge applications such as inverters, thrusters, and winches. The battery is non-spillable and maintenance-free, offering both safety and convenience.
Dimensions (L x W x H):
-
Length: 209.5 ±2 mm
-
Width: 260 ±2 mm
-
Height: 168 ±2 mm
-
Total Height (including terminals): 215 ±2 mm
-
Terminal Post Diameter: 16 mm
-
Terminal Post Height: 50 mm
These dimensions ensure compatibility with standard battery compartments and ease of installation.
1000 cycles @ 40% DoD
700 @ 60% DoD
300 cycles @ 100% DoD
Weighing only 26KG and more compact than other batteries at only 260mm x 168mm x 215mm.
These batteries come with Victron's 2 year world wide warranty and they have a design life of 7-10 years.
Features:
A truly innovative battery
The AGM Super Cycle batteries are the result of recent battery electrochemistry developments. The paste of the positive plates is less sensitive to softening, even in case of repeated 100% discharge of the battery, and new additives to the electrolyte reduce sulfation in case of deep discharge.
Exceptional 100% depth of discharge (DoD) performance
Tests have shown that the Super Cycle battery does withstand at least three hundred 100% DoD cycles. The tests consist of a daily discharge to 10,8V with I = 0,2C₂₀, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C₂₀. The two hours rest period in discharged condition will damage most batteries within 100 cycles, but not the Super Cycle battery.
Cycle life ≥ 300 cycles @ 100% DoD (discharge to 10,8V with I = 0,2C₂₀, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C₂₀) ≥ 700 cycles @ 60% DoD (discharge during three hours with I = 0,2C₂₀, immediately followed by recharge at I = 0,2C₂₀) ≥ 1000 cycles @ 40% DoD (discharge during two hours with I = 0,2C₂₀, immediately followed by recharge at I = 0,2C₂₀)
Victron Energy recommend the Super Cycle battery for applications where an occasional discharge to 100% DoD, or frequent discharge to 60-80% DoD is expected.
Smaller and lighter
An additional advantage of the new chemistry is a slightly smaller size and less weight compared to our standard deep cycle AGM batteries.
Low internal resistance
The internal resistance is also slightly lower compared to our standard deep cycle AGM batteries.
