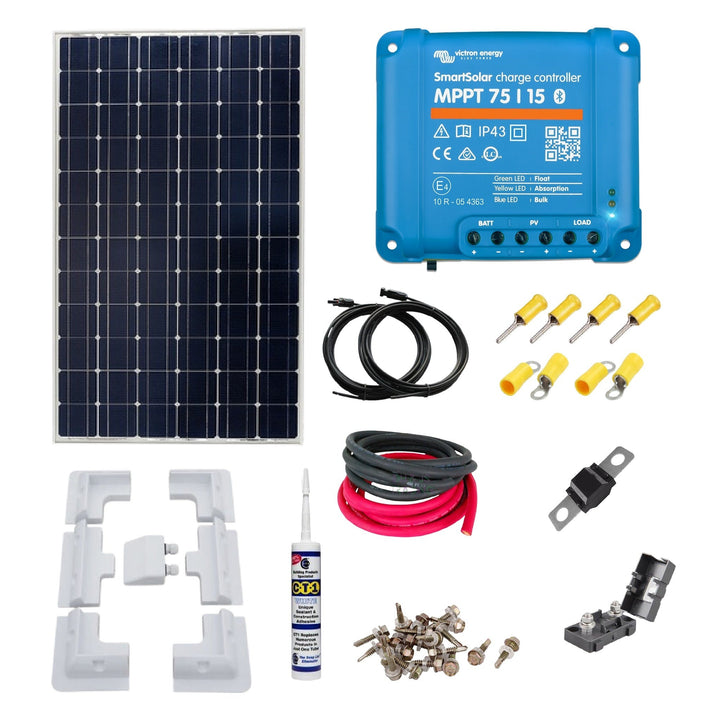

Callidus Trade Kit-11. A solar panel kit including a blue Victron Smart MPPT charge controller, cables, mounting equipment, and solar panels.
Callidus Trade Wiring Diagram
Solar panel with blue panels and white frame on a white background
Callidus Trade: Victorn Energy Smart Solar MMPT 55 | 15 Charge Controller
Fast Delivery
Expert Support

Victron 185 Watt Solar Panel & Victron Smart MPPT Charge Controller, Cable, Mounting & Gland. KIT11

Power your battery anywhere with clean, free solar energy!

The Victron KIT11 is a complete 185W solar kit for campervans and motorhomes. It features a monocrystalline panel, a Smart MPPT controller with Bluetooth, and a full mounting set. Capable of producing up to 700Wh per day, it provides a reliable DIY solution for keeping your batteries charged while off-grid.

Your wiring diagram will be emailed to you as part of your shipment confirmation.

★ ★ ★ ★ ★

Trusted by 300+ customers

IN STOCK
High Daily Energy Yield: Produces up to 700Wh of solar energy per day to keep your fridge, lights, and electronics powered. Smart Bluetooth Monitoring: Track your solar production and battery health in real time via the VictronConnect app on your smartphone. Complete DIY Solution: Supplied with all necessary mounting brackets, cables, and CT1 sealant for a professional, leak-free installation. Superior Efficiency: Features a high-quality 185W monocrystalline panel designed to perform well even in variable UK weather conditions. Trusted UK Support: Benefit from expert advice and in-house technical support from an official UK Victron Energy distributor. Panel Size: 1485mm x 668mm x 30mm Free Shipping!

Here are brief instruction suggestions for connecting and installing the solar panel kit:

Mount the solar panel:

  • Ensure you have enough room on your chosen surface and it is sturdy enough to hold the panels
  • Secure the Victron Energy 185W Solar Panel to the brackets
  • Attach brackets to the roof using CT1 Sealant & Adhesive

Install the charge controller:

  • Mount the Victron MPPT 75/15 SmartSolar Charge Controller in a protected location

Input the cables through the roof:

  • Use the 5M Solar Extension cables with MC4 connectors
  • Make sure to label the positive and negative cables before putting them through the gland
  • Route cables through the Cable Gland in the brackets

Install the fuse:

  • Mount the Victron Energy Fuse holder
  • Insert the 30A Midi Fuse

Wire the system:

  • Use 6mm2 black cable for negative connections
  • Use 6mm2 red cable for positive connections
  • Ground the MPPT Charge controller (consult manual for instructions)
  • Attach Y23 pin connectors and Y6/Y7 terminals as needed

Connect components:

  • Connect the MPPT charge controller to your battery (not included in kit) BEFORE connecting it to your panel
  • Wire solar panel to charge controller

Double-check all connections and ensure proper polarity

Activate the system and test functionality

For detailed installation, consult product manuals and consider professional installation if unsure. Safety precautions are essential when working with electrical systems. Incorrect installation or set up may result in the damage of your components and other associated direct and indirect risks.

£345.00 £265.00 SAVE £80.00
or pay interest-free installments
Klarna
PayPal

Add Extras to Your Order

25% Off
105Ah 12V Deep Cycle Leisure Battery

105Ah 12V Deep Cycle Leisure Battery

The Numax DC31MF 12V 105Ah Leisure Battery provides a reliable and maintenance-free power source for various leisure applications.

£145.00

£108.15

SKU: KIT11-P
Add to Wishlist
Receive via free tracked delivery between -

Frequently Bought Together

Total price:£530.75 £414.81
Who's it for?

This kit is ideal for motorhome or campervan owners seeking an easy to install solar panel kit to keep their leisure batteries charged.

Product Details

This is a powerful solar panel kit for motorhomes and is ideal for keeping essentials running. This solar kit will keep your leisure battery charged and keep you connected, off-grid. It includes everything you will need to connect the Victron 185W solar panel to your camper or motorhomes existing leisure battery. Please bare in mind the size of the solar panel + the solar panel mount when sizing this kit up for your roof.

This kit is fairly easy to install if you have basic DIY skills. We include a diagram and instructions and we are always on hand to help if you need some guidance. There are a few handy videos for installation for you to watch if you need any tips for installation.

The 6mm cable included is 1 metre long.

Your wiring diagram and instructions will be emailed to you as part of your shipment confirmation

Please feel free to call us on 01626563563 where we will be able to offer you some assistance.

The 185W panel is 1485mm x 668mm x 30mm.
