This solar panel kit would provide charge to your leisure battery via the solar charge controller ensuring your battery maintains its optimal performance extending your off-grid adventure providing more power to your Motorhome or Campervan.
This is the right kit for you if you are building a Camper/ Motorhome and you want to add a complete Solar kit with 230 volt power and battery charger that just works on-grid or off. this kit has everything you need for a none smart alternator. This kit contains all the items seen in the pictures
This kit is the smallest of the Victron multiplus and is great to power things light fridges, laptops, light and any other low draw power items.
if you require more power please look at our kits

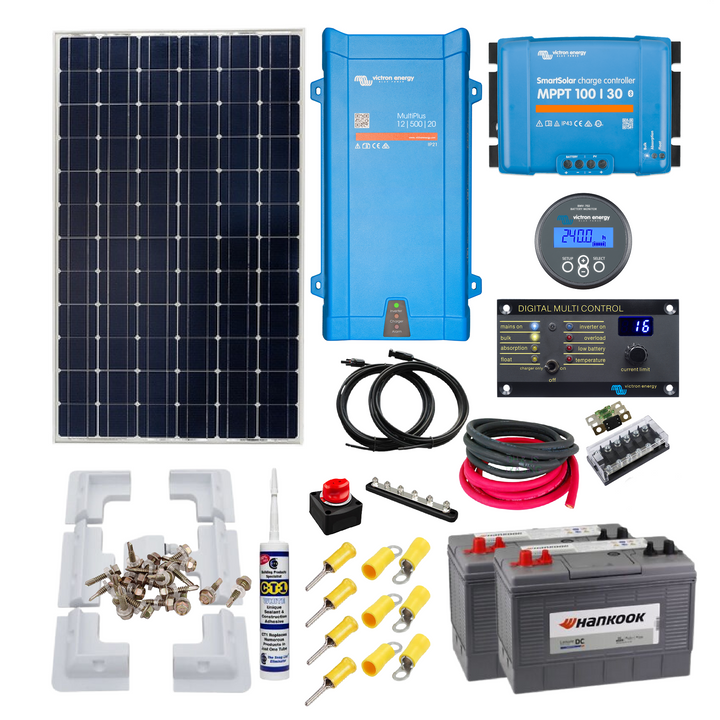

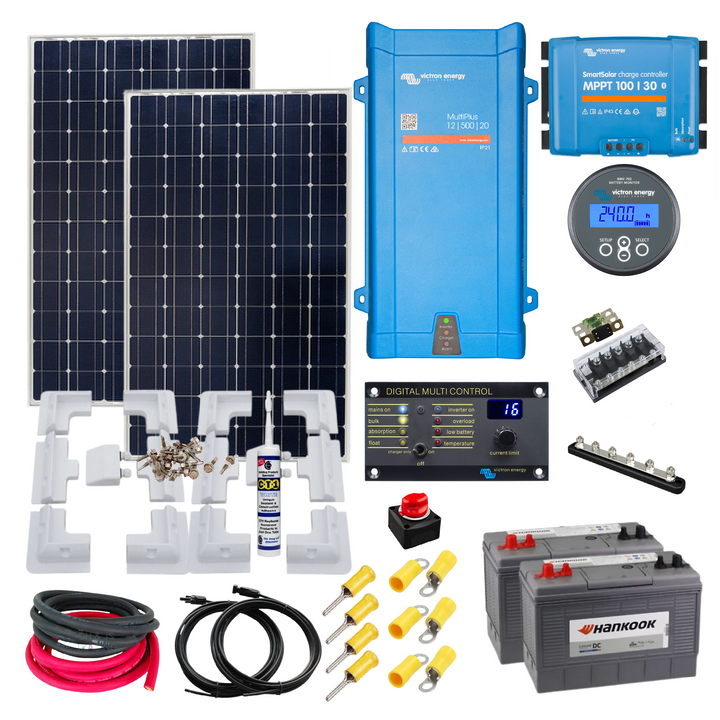

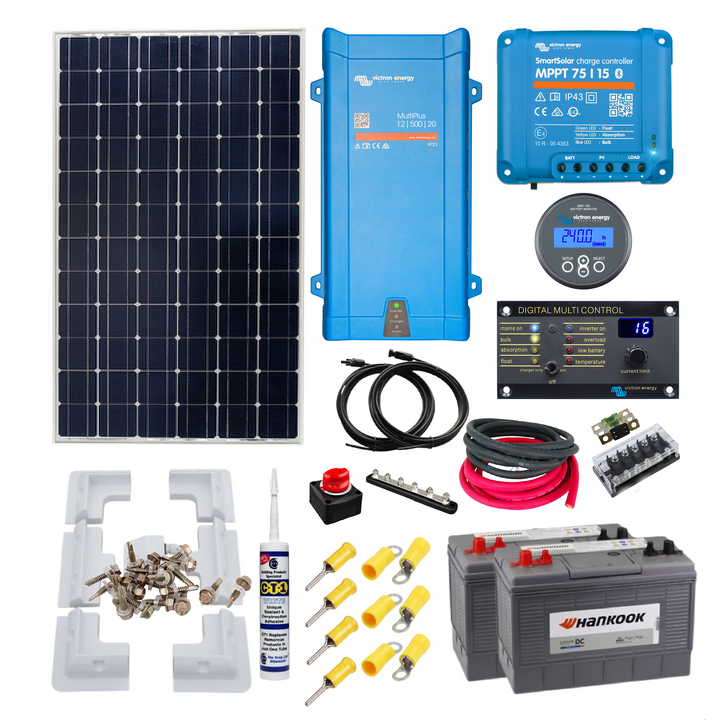

What's in the Box?
- Victron Multiplus 12/500/20-16 230V (PMP121500000)
- Battery Monitor BMV-702 (BAM010702000)
- 2 x 100ah (c20) Leisure battery
- Digital Multi Control 200/200A (REC020005010)
- Victron SmartSolar MPPT 75/15 (SCC075015060R) (Victron SmartSolar MPPT 100/20 (SCC110020160R) when upgrading to 305W panel) or Victron SmartSolar MPPT 100/30 when choosing 2 panel option
- Victron 115W Mono solar panel (SPM041151200) OR Victron 175W Mono solar panel (SPM041751200) OR Victron 305W Mono solar panel (SPM043052002) OR 2 x Victron 175W Mono solar panel (SPM041751200)
- Fuse holder for MIDI fuse (CIP000050001) including 125A MIDI fuse (CIP132125010), 30A MIDI fuse (MIDI30)
- Fuse holder 6 way for MEGA fuse (CIP50060000) with 2 x 125A MEGA fuse and 1 x 60A MEGA fuse (CIP136060010)
- 1 x Battery switch (VBS127010010)
- 2 metres 16mm2 cable black
- 2 metres 16mm2 cable red
- Battery link cable - 350mm of 16mm2 cable red, and 350mm of 16mm2 cable black with a selection of lugs
- Pair of 5 metre solar extensions with MC4's (5QM40)
- 1 metre 6mm2 DC cable red (for battery to controller)
- 1 metre 6mm2 DC cable black (for battery to controller)
- Blade fuse holder with 1 x 30A blade fuse, 2 x 20A blade fuse, 1 x 10A blade fuse
- Pins and ferrels (4 x each)
- 1 x 6 piece mounting kit with gland ( x2 when choosing 2 panel option)
- CT1 sealant
- 12 x fixing screws (12 x 2 when choosing 2 panel option)
- Splitters (when choosing 2 panel option)
