Victron Battery Monitor BMV-700H

Key Monitoring Capabilities

• Real-Time Data: Displays battery voltage, current, and power consumption in Watts.

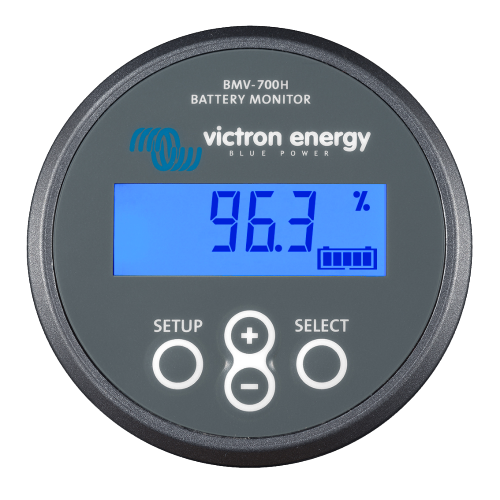

• State of Charge: Shows remaining battery capacity as a percentage (0–100%).
• Time-to-Go: Provides an estimate of how long the battery will last at the current rate of discharge.
• Ampere-Hours Consumed: Tracks total energy usage.
• Historical Data: Stores a wide range of historical events used to evaluate usage patterns and overall battery health.

Technical Specifications

• Supply Voltage Range: 60 – 385 VDC
• Current Draw (Backlight Off): < 4 mA
• Battery Capacity (Ah): 1 – 9999 Ah
• Operating Temperature Range: -40°C to +50°C (-40°F to 120°F)
• Programmable Relay: 60V / 1A normally open (function can be inverted) to manage non-critical loads or trigger a generator.
• VE.Direct Communication Port: Built-in port for wired or wireless (via optional Bluetooth dongle) monitoring and configuration.

Resolution & Accuracy (with included 500A shunt)

• Current Resolution: ± 0.01 A
• Voltage Resolution: ± 0.01 V
• Amp Hour Resolution: ± 0.1 Ah
• State of Charge Resolution: ± 0.1%
• Time-to-Go Resolution: ± 1 minute
• Current Measurement Accuracy: ± 0.4%
• Voltage Measurement Accuracy: ± 0.3%

Installation & Mechanical

• Mounting Type: Flush mount
• Body Diameter: 52 mm (2.0 inch)
• Body Depth: 31 mm (1.2 inch)
• Front Diameter: 63 mm
• Front Bezel Dimensions: 69 x 69 mm (2.7 x 2.7 inch)
• Shunt Connection Bolts: M10 (0.3937 inch)
• Protection Category: IP55 (Not intended for outdoor use)
• System Compatibility: Suitable for systems with grounded negative only (battery monitor is not isolated from the shunt).

Included Components

• BMV-700H High Voltage Battery Monitor
• 500A / 50mV Shunt with quick-connect PCB
• 10-metre 6-core UTP cable with RJ12 connectors
• 2-metre battery cable with 1A slow-blow fuse for positive connection
• Separate front bezels for a square or round display appearance
• Securing ring for rear mounting and screws for front mounting

Standards & Compliance

• Safety: EN 60335-1
• Emission / Immunity: EN 55014-1 / EN 55014-2
• Automotive: ECE R10-4 / EN 50498
