12V Battery To Battery Charger Kit – Includes Victron Orion 30A DC-DC Charger with built-in Bluetooth. KIT61
NEXT DAY DELIVERY AVAILABLE BEFORE MIDDAY
COLLECT FROM OUR WAREHOUSE FOR FREE
This 12V battery to battery charger kit includes everything you will need to wire in the Victron Orion DC-DC charger included in this kit into your campervans electrical system.
The Orion is connected up to your vehicles starter battery and it safely and intelligently charges your leisure battery whilst you are driving.
The Orion has built in Bluetooth allowing you to monitor, change settings or update the charger using any Bluetooth enabled smart phone, tablet or other device.
It is fully programmable and compatible with smart and standard alternators and has a built in engine running detection mechanism. It uses an adaptive 3-stage charge algorithm: bulk – absorption – float. For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery.
The non-isolated model is for use in systems where the batteries share a common ground.
See the datasheet and manual for the Orion in the datasheets tab.
We have designed this kit for a 12V System including both 10mm2 & 16mm2 cable.
Wiring Run |
12V |
|
Fuse |
60A |
|
0.5m |
6mm2 |
|
1m |
10mm2 |
|
2m |
10mm2 |
|
5m |
16mm2 |
|
10m |
16mm2 |
|

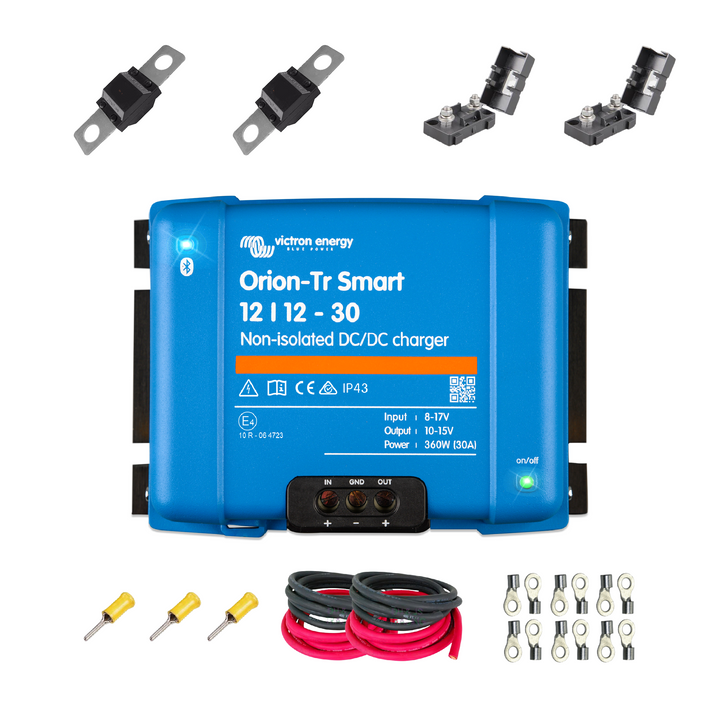

What's in the Box?
- Victron Orion-Tr Smart DC-DC Charger Non Isolated 12/12 30 Amp (ORI121236140)
- 6 meters of red 16mm cable
- 2 meters of black 16mm cable
- 4 meters of red 10mm cable
- 1 meter of black 10mm cable
- 2 x 60A Midi Fuse
- 2 x Midi Fuse Holder
- 3 x 10mm2 x 14mm pins
- 4 x 10mm2 x 6mm lugs
- 2 x 10mm2 x 8mm lugs
- 4 x 16mm2 x 6mm lugs
- 2 x 16mm2 x 8mm lugs

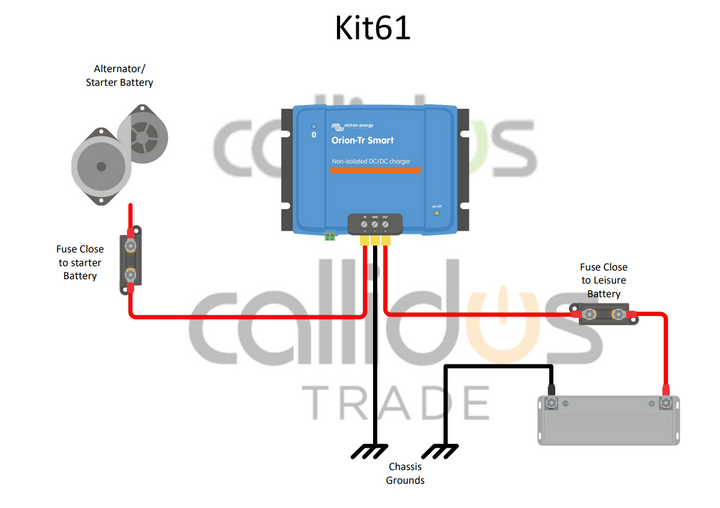

- Diagram
