BCD 402 2 batteries 40A (combiner diode)

£31.99
pay interest-free installments
Klarna
PayPal
OUT OF STOCK

Ensure uninterrupted power with the Victron BCD 402 40A Diode Battery Combiner, designed for 12V and 24V systems, featuring M6 bolt connections for secure installations.

Maximum Continuous Current: 40A, suitable for various applications. Dual Battery Support: Combines two DC power sources in parallel to ensure continuous power. Voltage Compatibility: Compatible with both 12V and 24V systems. Secure Connections: Features M6 bolt connections for reliable and secure installations. Dimensions: 60 x 120 × 75mm Weight: 0.8kg
Add to Wishlist

UK-wide delivery Free tracked delivery on orders over £250.

Next-day delivery UK-wide option at checkout. Delivery times apply from dispatch.

SKU: BCD000402000
Product Details

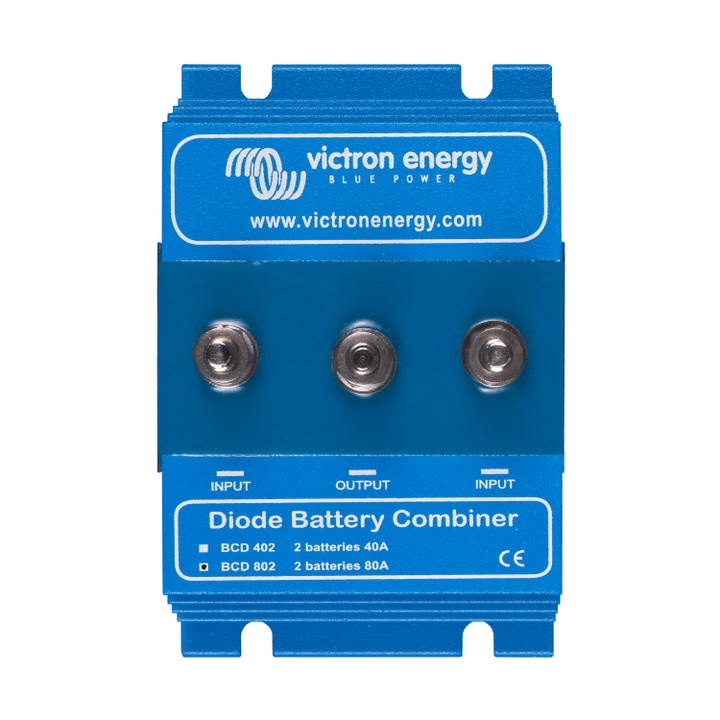

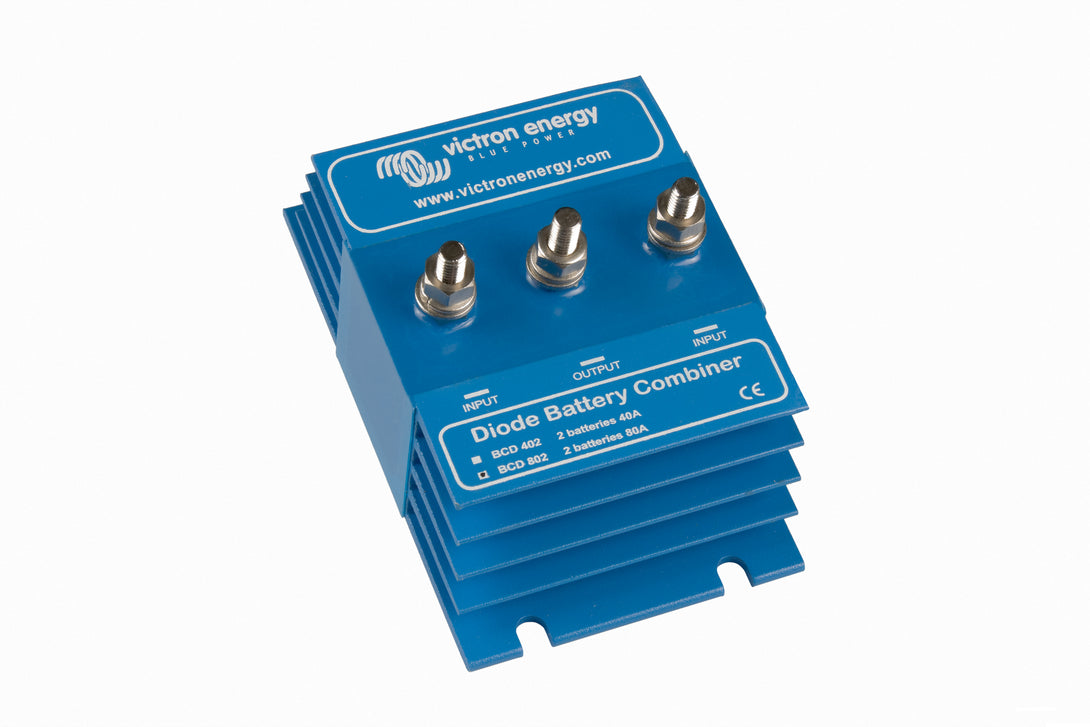

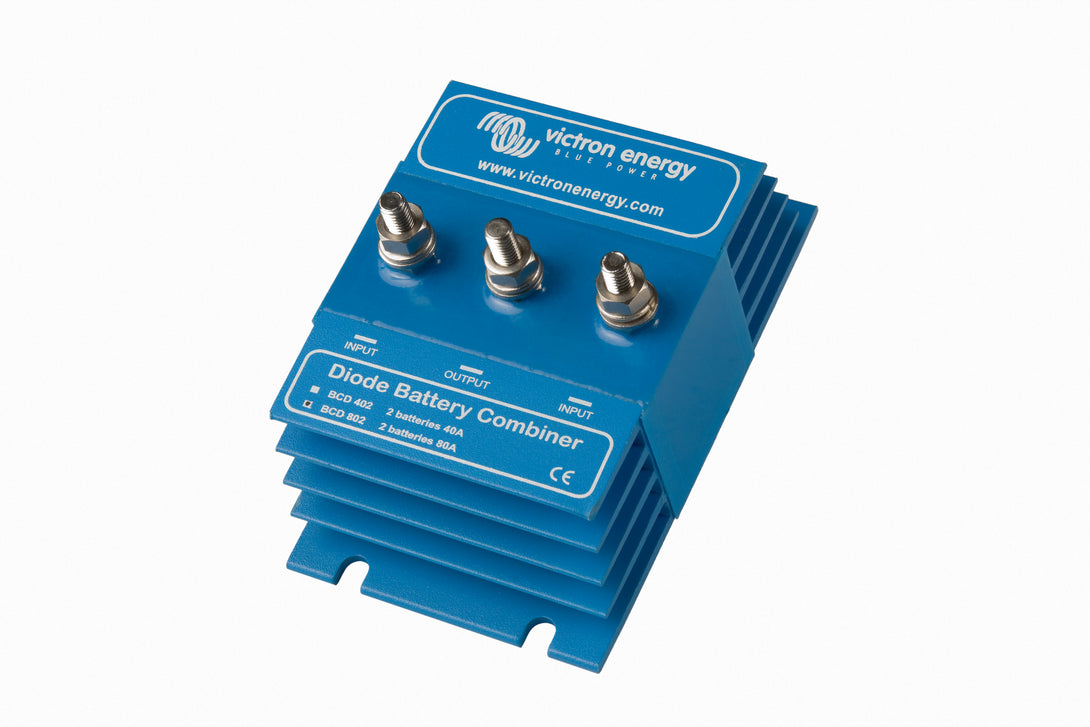

The Victron Energy BCD 402 2 Batteries 40A (Combiner Diode), is a reliable solution designed to ensure continuous DC power to mission-critical equipment by combining two DC power sources. This diode battery combiner allows two batteries to supply power in parallel, ensuring that failure of one source will not interrupt power to the critical load.

It is suitable for both 12V and 24V systems and features M6 bolt connections for secure and efficient installations. The device boasts a maximum continuous current of 40A, making it ideal for various applications.

.
Product Specifications

Electrical Specifications

  • Maximum Continuous Current: 40 A
  • Number of Battery Inputs: 2
  • Nominal Battery Voltage: 12 V and 24 V
  • Diode Type: Schottky diodes
  • Voltage Drop (Low Current): Approximately 0.3 V
  • Voltage Drop (Rated Output): Approximately 0.45 V

Mechanical Specifications

  • Connection Type: M6 bolts
  • Weight: 0.8 kg (1.8 lbs)
  • Dimensions (h x w x d): 60 x 120 x 75 mm
  • Dimensions (inches): 2.4 x 4.7 x 3.0 inches

Safety & Installation

  • Mounting Requirement: The unit may become a hot surface during operation. It must be mounted on a non-flammable surface only.
  • Functionality: Enables parallel DC power source configuration to guarantee power to critical loads.

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £4.99 for small packages (Under 0.8kg)
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £9.99 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
BCD 402 2 batteries 40A (combiner diode) - Data Sheet
