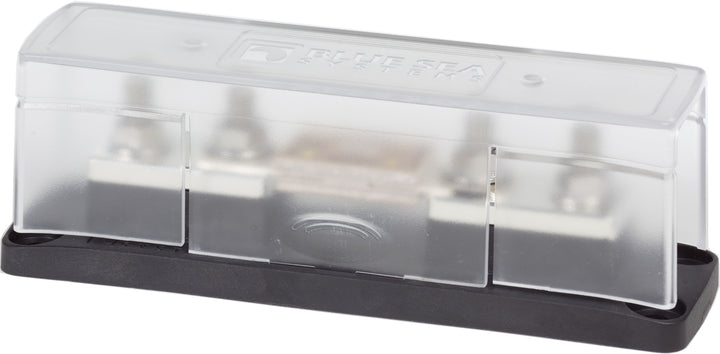

Bluesea ANL Fuse Block with Insulating Cover - 35 to 750A 5503

The Bluesea 5503 ANL Fuse Block with insulating cover accepts ANL fuses rated from 35 A to 750 A. Designed for 32 V DC systems, it offers rugged protection in a compact, insulated housing and enables easy fuse replacement.

Innovative Swing-Out Design: Allows for the replacement of the fuse without removing fasteners, significantly simplifying maintenance. High-Quality Materials: Utilizes stainless steel studs for superior corrosion resistance and high torquing capability, paired with tin-plated copper mounting blocks for excellent electrical contact. Heat-Resistant Base: The UL 94-V0 rated base is designed to resist high heat, ensuring safety in demanding electrical environments. Secure Mounting: Features insert moulded studs to provide a stable and secure mounting point for the fuse. Safety Compliant Cover: The included insulating cover satisfies ABYC/USCG requirements for exposed terminals. Flexible Wire Access: Integrated cover breakouts allow for wire entry and exit in any direction, accommodating various installation layouts.
£67.51 £59.41 SAVE £8.10
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: 5503
AVAILABLE IN 7-10 DAYS
Product Details

The Bluesea 5503 ANL Fuse Block with insulating cover is engineered for high current DC protection in marine, automotive, RV, and solar energy systems. It is suitable for systems up to 32 V DC and handles ANL (or CNL) fuses in the 35 A to 750 A range.

Constructed with a reinforced polycarbonate base (UL 94-V0 rated) and tin-plated copper bus bars, it offers both electrical performance and safety. Stainless steel studs provide corrosion resistance and maintain high torque contact reliability.

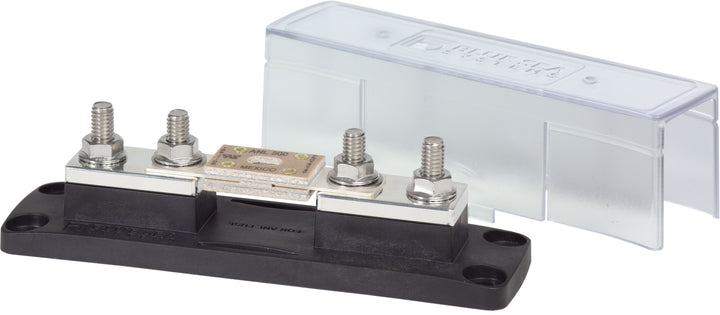

A key design feature is the swing-out insulating cover, which lets you install or swap fuses without fully removing the cover or block. The cover has breakouts in all directions, allowing cable entry from any side, making installations neater and more flexible.

 Fuse sold separately.

Product Specifications

Technical Specifications

  • Maximum Voltage: 32V DC
  • Terminal Stud Size: 5/16" - 18 (M8)
  • Maximum Cable Size: 4/0 AWG
  • Maximum Torque: 107 in-lb (12.09 Nm)
  • Base Material: Reinforced Polycarbonate (UL 94-V0 heat resistant)
  • Mounting Blocks: Tin-Plated Copper
  • Stud Material: Stainless Steel
  • Weight: 1.06 lb (0.48 kg)

Installation Notes

  • Terminals: Specifically designed to accept 5/16" (M8) ring terminals.
  • Fuse Compatibility: Designed for use with ANL fuses (fuses are sold separately).
  • Secure Connection: Ensure terminal studs are tightened to the specified torque of 107 in-lb to maintain optimal electrical conductivity.
