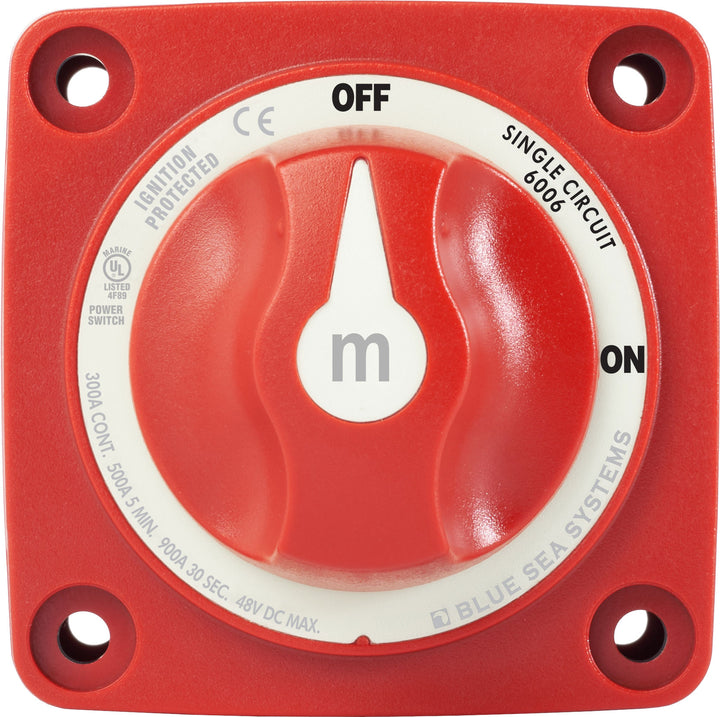

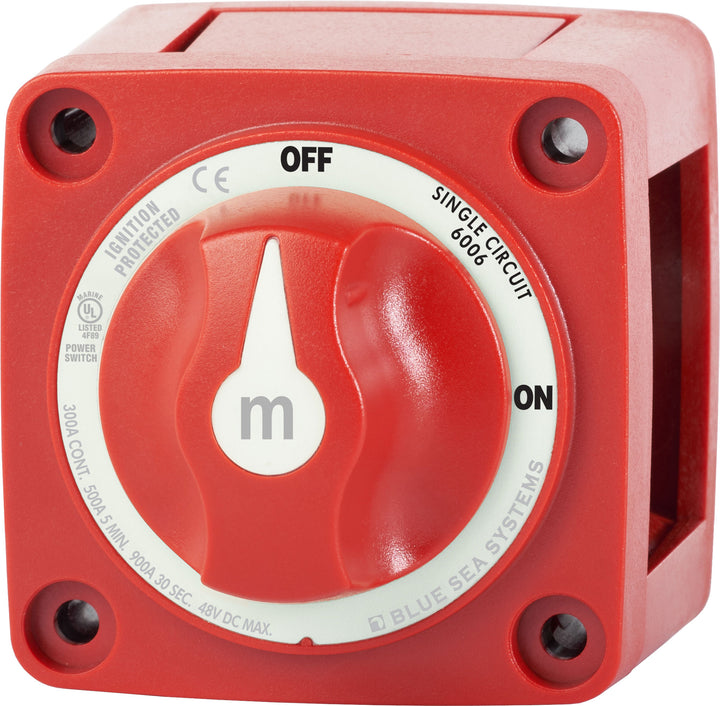

Bluesea m-Series Mini On-Off Battery Switch with Knob - Red - Isolator Switch 6006

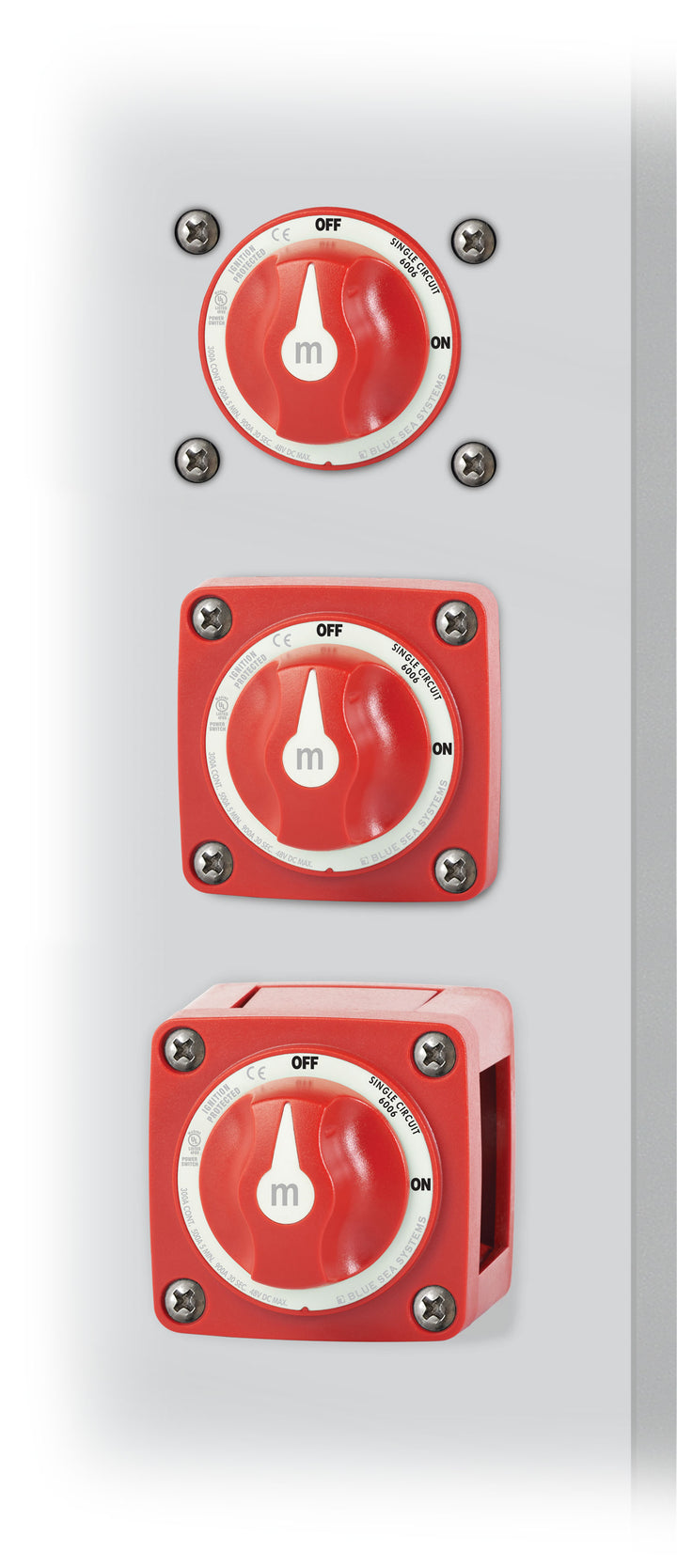

The Bluesea m-Series Mini On-Off Battery Switch is engineered for reliable battery isolation in compact spaces. With a 300A continuous rating and 500A intermittent rating (5 minutes), it ensures efficient power management for various applications. The switch features a removable knob, providing security and service lockout capabilities. Its ignition-protected design makes it safe for installation aboard gasoline-powered boats, while the corrosion-resistant construction ensures longevity in marine environments. The versatile mounting options allow for surface, front panel, or rear panel installation, offering flexibility to suit different setups.
Please Note: We purchase this product in bulk packs and delivered unboxed without fixing screws.
| Specifications | |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.65lb (0.29 kg) |
| Weight | 0.65lb (0.29 kg) |
