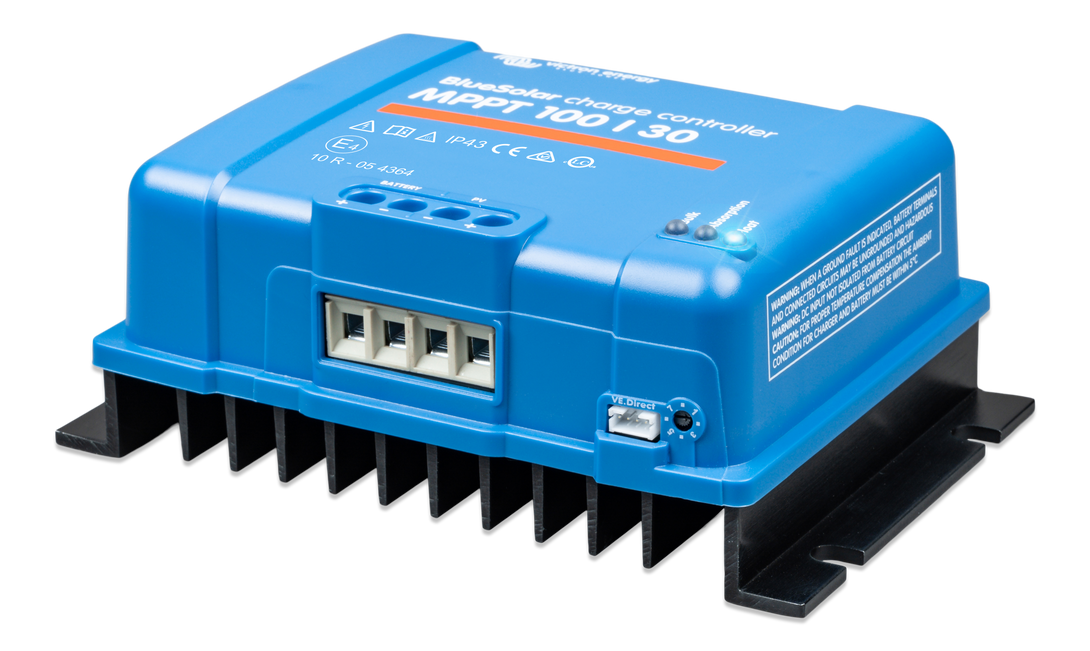

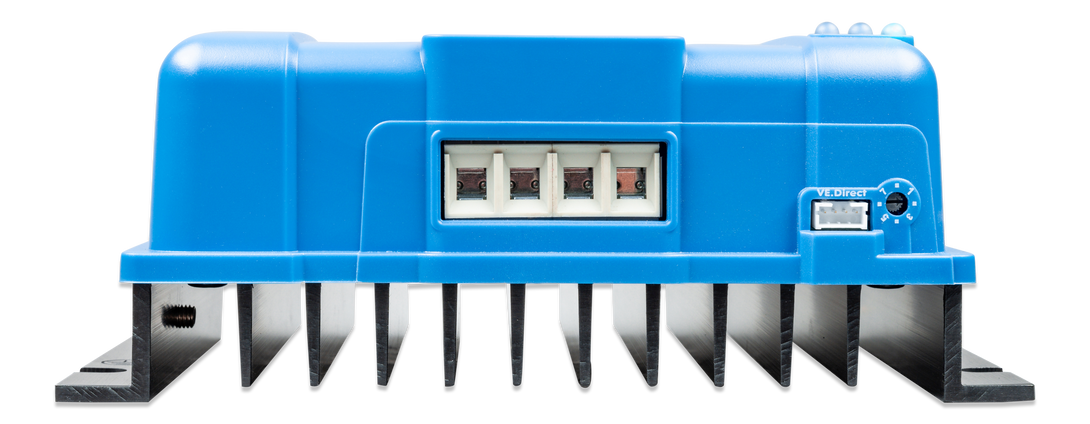

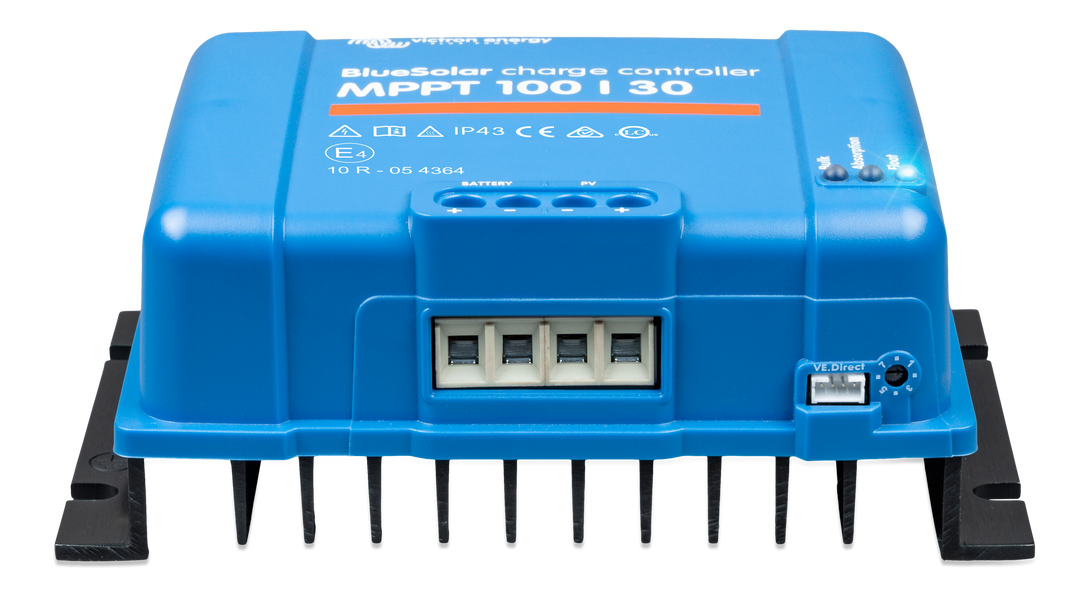

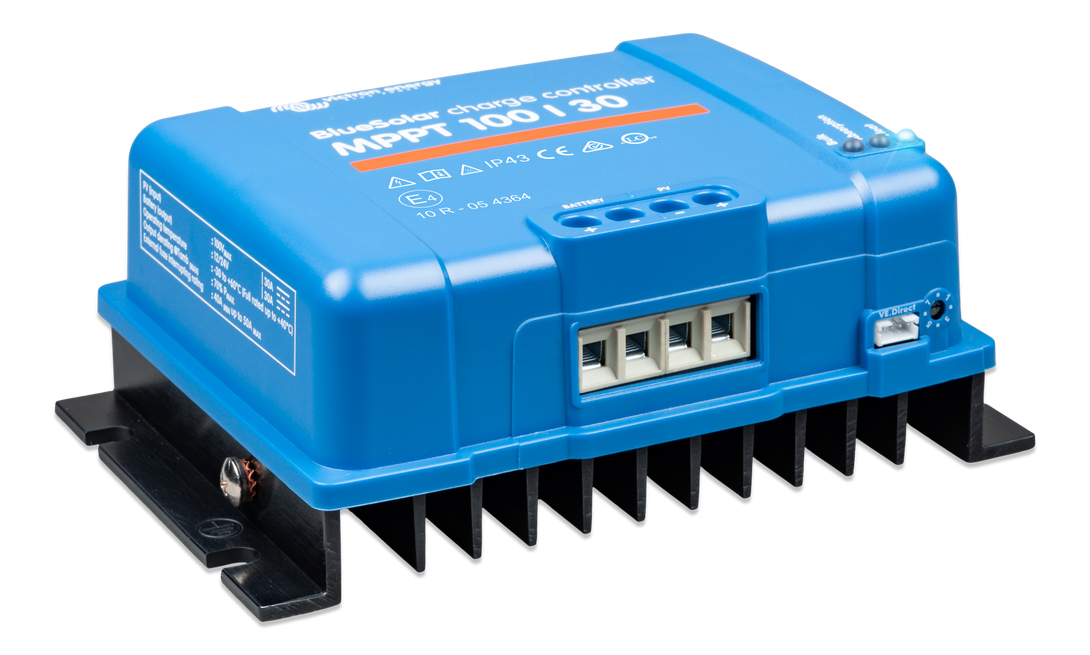

Victron BlueSolar MPPT 100/30

Charging current up to 30A and photovoltaic voltage up to 100V, BlueSolar 100/30 MPPT charge controller can charge a battery with lower rated voltage of higher rated photovoltaic module, the regulator automatically adjusts to the battery rated voltage of 12 or 24V.

Optimal Energy Harvesting: Advanced MPPT technology ensures maximum energy capture. High Efficiency: Over 98% peak efficiency reduces energy loss. Versatile Compatibility: Supports both 12V and 24V battery systems. Comprehensive Protection: Built-in safeguards for enhanced system reliability. Compact and Lightweight: Easy to install in various setups. Dimensions: 130 x 186 x 70 mm Weight: 1.3kg
£212.40 £98.48 SAVE £113.92
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC020030200
AVAILABLE IN 7-10 DAYS
Product Details

The Victron BlueSolar MPPT 100/30 is a high-performance solar charge controller designed to extract maximum energy from your solar array and deliver it efficiently to your battery system. Its ultra-fast MPPT technology continuously tracks the solar panel output to maintain the optimal voltage and current, thus improving energy yield especially under variable light conditions.

You can connect the MPPT 100/30 to Victron’s smartphone app via a Bluetooth dongle for configuration and telemetry, and integrate it with the Victron Remote Management (VRM) portal via a GX device for full remote monitoring and control. The controller supports both 12 V and 24 V battery systems automatically, simplifying setup in mixed systems.

Key Features:

  • Ultra-fast Maximum Power Point Tracking to maximise solar harvest
  • Bluetooth monitoring and configuration via VictronConnect (requires dongle)
  • Remote monitoring & control via VRM when connected through a GX device
  • Automatic detection and support for 12 V / 24 V battery systems
  • 5-year manufacturer warranty with global support
Product Specifications

Electrical Specifications

  • Battery Voltage: 12/24V Auto Select
  • Rated Charge Current: 30A
  • Nominal PV Power (12V): 440W
  • Nominal PV Power (24V): 880W
  • Maximum PV Open Circuit Voltage: 100V
  • Max. PV Short Circuit Current: 35A
  • Maximum Efficiency: 98%
  • Self-Consumption: 12V: 30 mA / 24V: 20 mA

Charge Settings & Algorithm

  • Charge Algorithm: Multi-stage adaptive
  • Charge Voltage 'Absorption': 14.4V / 28.8V (Default setting, fully programmable)
  • Charge Voltage 'Float': 13.8V / 27.6V (Default setting, fully programmable)
  • Pre-programmed Algorithms: Eight selectable algorithms via a rotary switch
  • Temperature Compensation: -16 mV / °C (12V) or -32 mV / °C (24V)
  • Internal Temperature Sensor: Included (compensates absorption and float charge voltage for temperature)

Connectivity & Monitoring

  • Data Communication Port: VE.Direct
  • Real-time Data Display Options:Compatible with ColorControl GX or other GX devices for comprehensive system monitoring.Smartphone or Bluetooth monitoring available via the VE.Direct Bluetooth Smart dongle (sold separately).

Mechanical & Enclosure

  • Dimensions (H x W x D): 130 x 186 x 70 mm
  • Weight: 1.3 kg
  • Power Terminals: 16 mm² / AWG6
  • Colour: Blue (RAL 5012)
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Cooling: Natural convection (no cooling fan)

Environmental & Standards

  • Operating Temperature Range: -30 to +60°C (Full rated output current up to 40°C)
  • Humidity: 95%, non-condensing
  • Integrated Protections: Over-temperature protection and power derating, PV short circuit, PV reverse polarity, and PV reverse current protection.
  • Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
