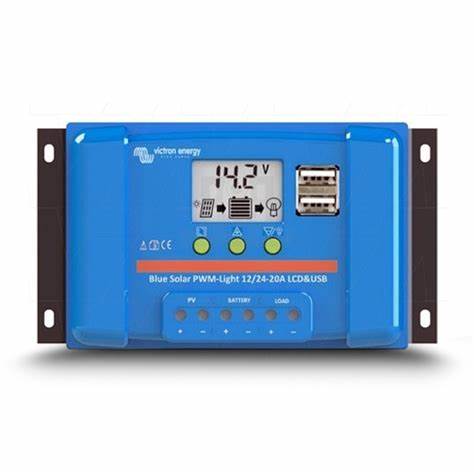

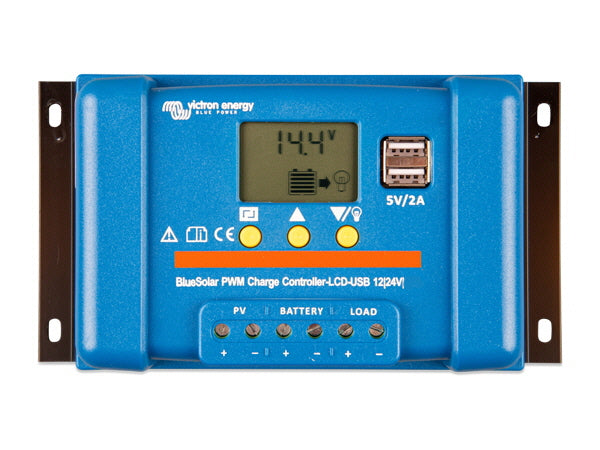

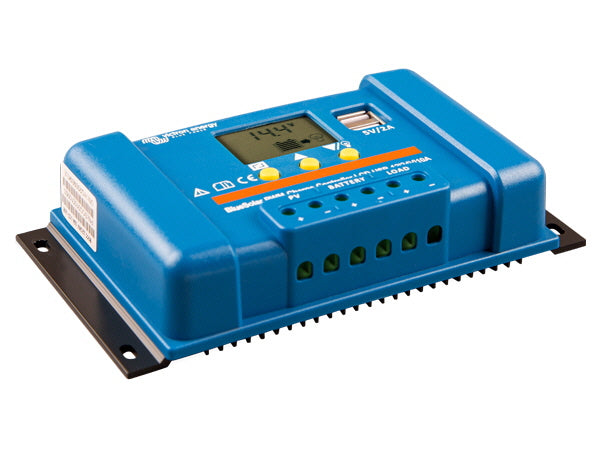

BlueSolar PWM-LCD&USB 12/24V-20A

The Victron BlueSolar PWM-LCD&USB 12/24V 20A is a versatile solar charge controller with LCD display, dual USB outputs and programmable load control, ideal for small off-grid systems.

Three-stage charging (bulk, absorption, float) with selectable battery algorithms LCD display for monitoring and configuration Two 5 V USB outputs (total up to 2 A) Programmable load output with low voltage disconnect, timer and protection Protection against reverse polarity, overcurrent, short circuit and overtemperature Dimensions: 96 x 169 x 36mm Weight: 0.15kg
£58.80 £39.62 SAVE £19.18
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC010020050
IN STOCK
Receive between -
Product Details

The Victron BlueSolar PWM-LCD&USB 12/24V 20A is a user-friendly solar charge controller designed for modest off-grid solar systems. It automatically senses whether your battery system is 12 V or 24 V, and employs pulse width modulation (PWM) to regulate the charging process across three stages (bulk, absorption and float).

Its built-in LCD provides status, diagnostics and configuration options, making it easy to monitor system performance. The device also offers two 5 V USB outputs (combined up to 2 A) for auxiliary device charging.

Loads can be connected via its programmable load output, which includes low voltage disconnect, timer functions and over-current/short-circuit protection. The controller includes full protection against reverse polarity on battery or solar input, overload, short circuit and temperature stress.

All in all, this controller is ideal for smaller solar installations, lighting circuits, boats, cabins or any application needing reliable, configurable solar charging with user feedback.

Product Specifications

Electrical Specifications

  • Battery Voltage: 12/24 V (with automatic system voltage detection)
  • Rated Charge Current: 20 A
  • Automatic Load Disconnect: Yes
  • Maximum Solar Voltage: 28 V (12V system) / 55 V (24V system)
  • Self-Consumption: < 10 mA
  • Load Output: Manual control + low voltage disconnect + timer
  • Grounding: Common positive

Battery Charging & Thresholds

  • Charge Voltage 'Absorption' (Factory Setting): 14.4 V / 28.8 V
  • Charge Voltage 'Float' (Factory Setting): 13.7 V / 27.4 V
  • Low Voltage Load Disconnect (Factory Setting): 11.2 V / 22.4 V
  • Low Voltage Load Reconnect (Factory Setting): 12.6 V / 25.2 V
  • Charge Cycle Trigger: Triggered whenever battery voltage becomes lower than 13V.
  • Float Transition: Switches to lower float voltage 2 hours after absorption voltage is reached.

USB Output

  • Voltage: 5 V
  • Current: 2 A (Total combined current from 2 outputs)

Integrated Protection & Features

  • Protection: Battery reverse polarity (fuse), output short circuit, and over temperature.
  • Overload Protection:Shutdown after 60 seconds at 130% load.Shutdown after 5 seconds at 160% load.Immediate shutdown upon short circuit.
  • Lighting Control: Day/night timing option for the load output (pre-set ON-time after dusk).

Mechanical & Environmental

  • Dimensions (H x W x D): 96 x 169 x 36 mm (3.8 x 6.7 x 1.4 inches)
  • Weight: 0.15 kg
  • Protection Class: IP20
  • Terminal Size: 6 mm² (AWG10)
  • Operating Temperature Range: -35 to +60°C (full load)
  • Humidity: Max 95% (non-condensing)

Standards & Compliance

  • Safety: EN60335-1, IEC 62109-1
  • EMC: EN 61000-6-1, EN 61000-6-3, ISO 7637-2

Solar Panel Requirements

  • For 12V Systems: Use 36-cell solar panels.
  • For 24V Systems: Use 72-cell solar panels or two 36-cell panels connected in series.
