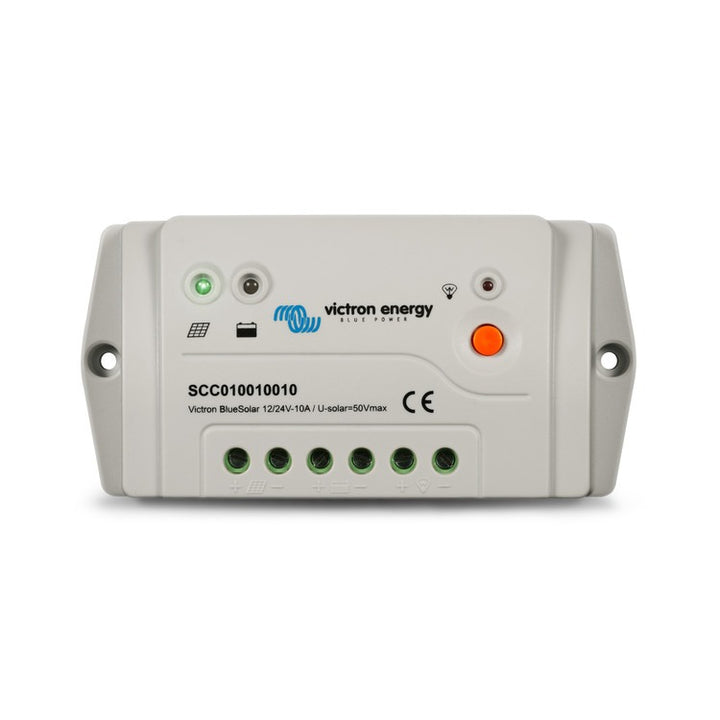

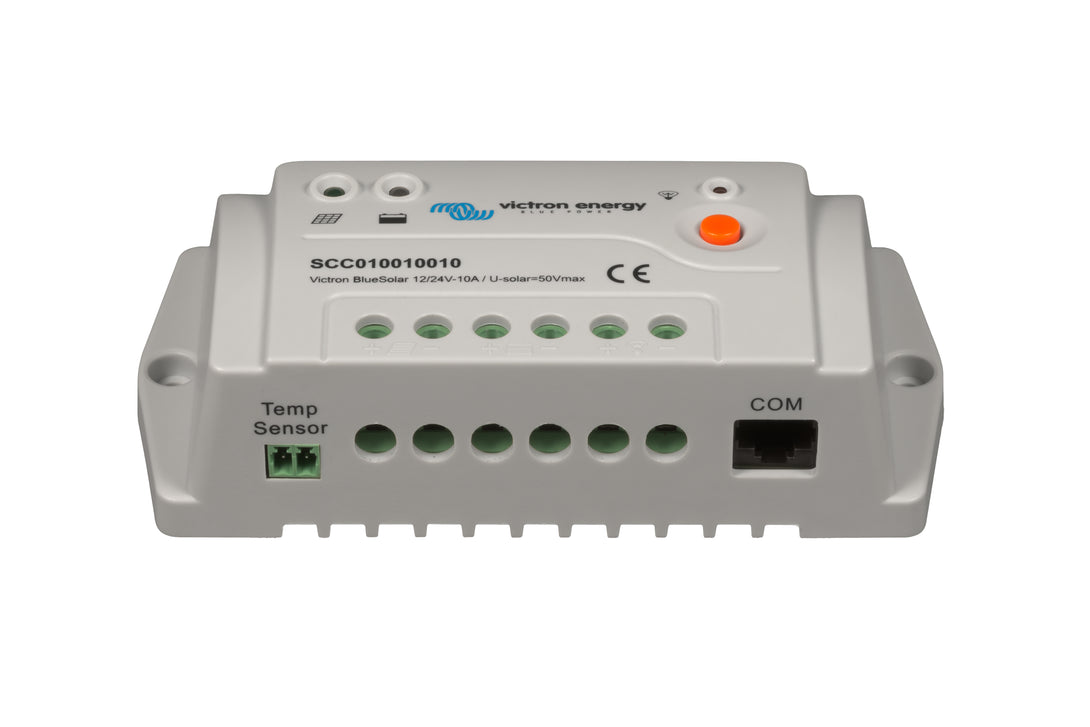

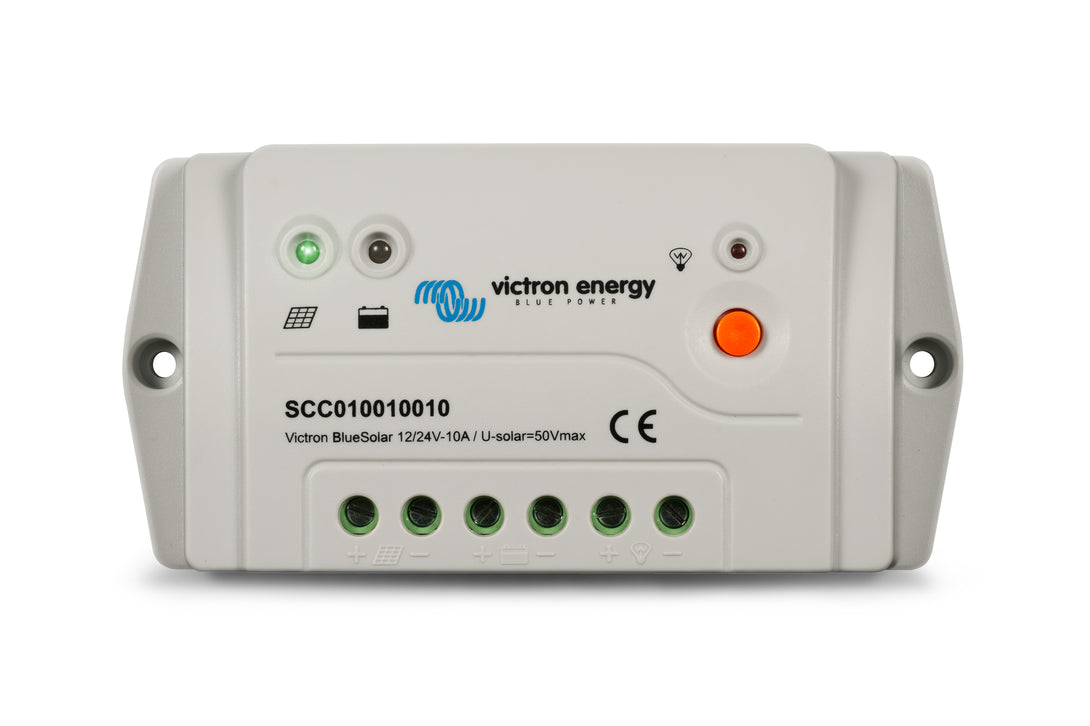

BlueSolar PWM-Pro Charge Controller 12/24V-10A

Victron BlueSolar PWM-Pro 12/24 V 10 A charge controller: automatic voltage detection, three-stage charging, lighting/load output and full protection for solar installations.

Automatic 12 V/24 V detection: Works across both system voltages to simplify installation and reduce setup errors. Rated for 10 A charging: Ideal for small to medium solar setups such as cabins, boats or mobile installations. Three-stage battery management: Bulk, absorption and float stages help extend battery life and maintain performance. Load output with intelligent control: Includes lighting function and low-voltage disconnect, useful for lighting circuits or auxiliary systems. Robust protection and brand trust: From Victron Energy, featuring overload, short-circuit and reverse polarity protection for peace of mind. Dimensions: 138 x 70 x 37mm Weight: 0.13kg
£44.40 £38.85 SAVE £5.55
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC010010010
AVAILABLE IN 7-10 DAYS
Product Details

Introducing the BlueSolar PWM-Pro Charge Controller 12/24 V-10 A by Victron Energy, a compact yet powerful solution designed for retail customers looking to harness solar energy with confidence. This controller automatically detects whether the system is 12 V or 24 V, offering plug-and-play compatibility for a range of installations.

Built into a rugged enclosure, the controller supports a rated charge current of 10 A and accepts solar input voltage up to 28 V (for 12 V systems) or 55 V (for 24 V systems). It employs a three-stage charging algorithm (bulk, absorption and float) to optimise battery health and ensure reliable performance over time.

What sets this model apart are the programme-ready features: a lighting control function, load output with low-voltage disconnect and manual control, and protection against overloads, short-circuit conditions and reverse battery or solar panel polarity. Whether you’re powering a remote cabin, RV, boat system or small off-grid home, this controller provides a smart, dependable solution. The unit is ready to use with default settings but can be tailored via free PC software if needed.

With its small footprint and established brand reputation, the BlueSolar PWM-Pro 10 A is an ideal choice for DIY enthusiasts and retail buyers who expect professional-grade performance without complexity. Whether your project involves solar panel charging for leisure, backup or mobile use, this controller delivers the essentials: automatic voltage detection, strong protection, and intelligent battery management.

Product Specifications

Performance & Electrical

  • Battery Voltage: 12/24V with automatic system voltage detection
  • Rated Charge Current: 10 A
  • Automatic Load Disconnect: Yes
  • Maximum Solar Voltage: 28V (for 12V systems) / 55V (for 24V systems)
  • Self-Consumption: < 10 mA
  • Load Output: Manual control + low voltage disconnect
  • Grounding: Common positive

Programmable Features & Settings

  • Charging Algorithm: Three-stage battery charging (bulk, absorption, float)
  • Lighting Control: Fully programmable lighting control function
  • Default Absorption Charge: 14.4V / 28.8V
  • Default Float Charge: 13.8V / 27.6V
  • Default Equalization Charge: 14.6V / 29.2V
  • Low Voltage Load Disconnect: 11.1V / 22.2V
  • Low Voltage Load Reconnect: 12.6V / 25.2V
  • Programming Options: Configurable via computer and free software or via the optional Remote Panel

Protection & Monitoring

  • Integrated Protection: Battery reverse polarity (fuse), output short circuit, and over temperature.
  • Load Protection: Load output is protected against overload and short circuits.
  • Temperature Compensation: -30 mV / °C (12V) or -60 mV / °C (24V) when the optional temperature sensor is installed.
  • Battery Monitor Function: Integrated function available when used with the optional Remote Panel to display state of charge.

Mechanical Specifications

  • Dimensions (h x w x d): 138 x 70 x 37 mm (5.4 x 2.7 x 1.4 inches)
  • Weight: 0.13 kg
  • Terminal Size: 4 mm²
  • Protection Category: IP30
  • Operating Temperature Range: -20 to +50°C
  • Humidity (Non-condensing): Max 98%

Optional Accessories

  • Remote Panel: BlueSolar Pro Remote Panel (Article SCC900300000)
  • Temperature Sensor: External battery temperature sensor (Article SCC940100100)

Standards & Compliance

  • Safety: IEC 62109-1
  • Emission: EN 61000-6-1, EN 61000-6-3, ISO 7637-2

Solar Panel Compatibility

  • 12V Systems: Use 36-cell solar panels
  • 24V Systems: Use 72-cell solar panels
