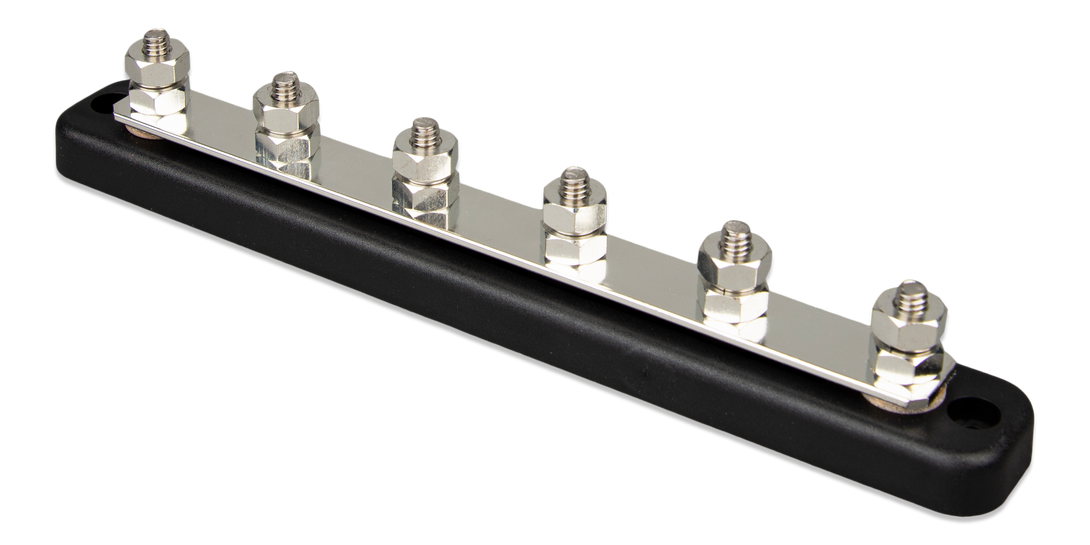

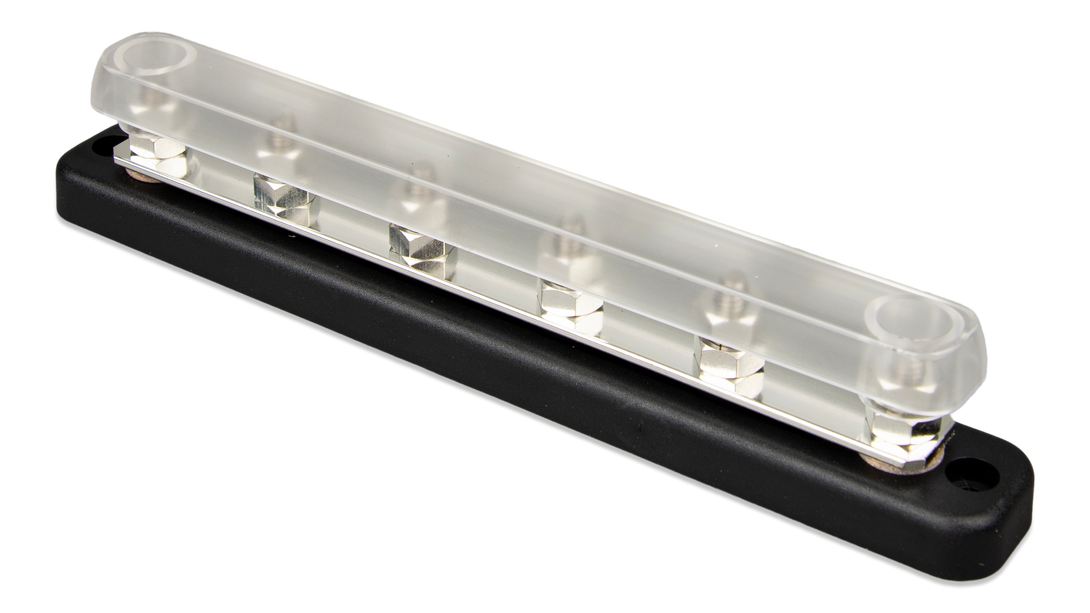

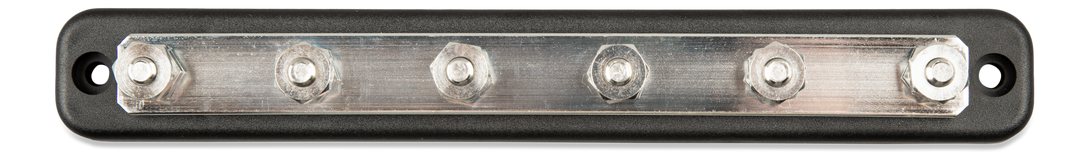

Victron Busbars 150A / 70V 6P + Cover

£31.99 £26.40 SAVE £5.59
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: VBB115060020
IN STOCK
Receive between -
Product Details

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

Available models:

  • 150A / 70V - 6 high current connections
Product Specifications

Technical Specifications

Combined for SKUs: VBB115060020

Base Colour: Black

Base Fire Rating: UL 94 V-0

Base Material: ABS

Busbar Dimensions: 1.4mm x 18mm

Busbar Material: Tin plated copper

Cover Colour: Clear

Cover Fire Rating: UL 94 HB

Cover Material: polycarbonate

Depth: 32 mm

Height: 45 mm

Hex Nut Material: Tin plated copper

Max Current: 150 A

Max Voltage: 70 V

Terminal Diameter1: 6.35 mm

Terminal Height1: 17 mm

Terminal Material: Stainless steel

Weight: 0.27 kg

Width: 232 mm

Source: Victron
