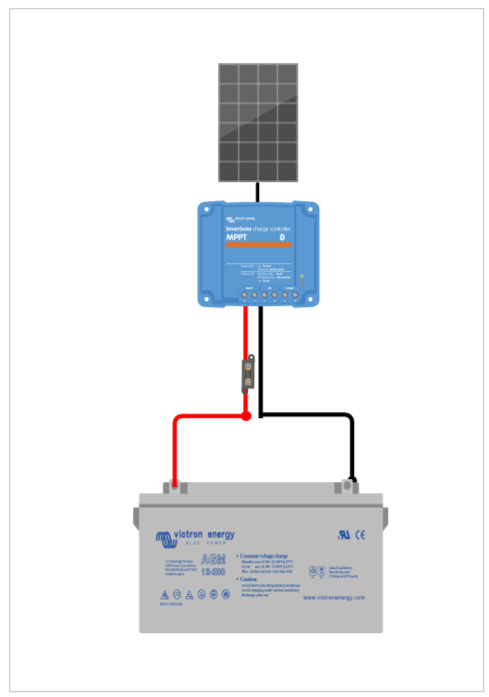

This Kit11A is a variation from our most popular kit 11, which allows you to add either a 100ah (C20) Hankook Lesuire (Wet) battery or a 110Ah Deep Cycle AGM Victron. This comes with the full wiring kit shown in the images.
This is a powerful solar panel kit for running CTTV systems. The panel measurements are 1485mm by 668 mm; however, you will need to see the image attached for sizing when installing these with corner mounts; however, this is 65mm from each corner.

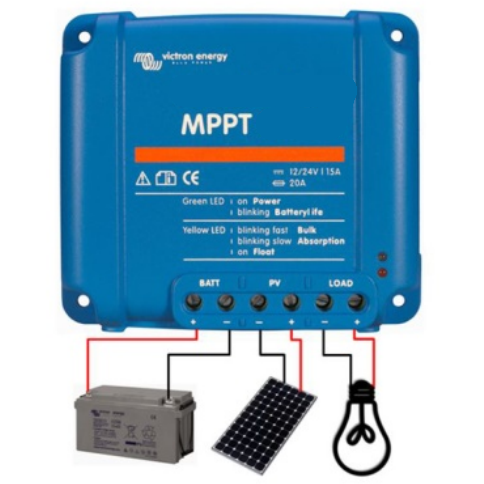

The SmartSolar MMPT charge controllers are great, especially in the case of a cloudy day, when the light changes continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to the PWM charge controllers. MPPT controllers maximise the energy to achieve full charge in the shortest possible time and maintain battery health, extending its life. With the built-in Blue tooth technology, you can connect via victronconnect portal to monitor your system.
Hankook Leisure Batteries are a suitable and reliable option and they benefit from X-Frame Grid Protection Technology which provides a longer cycle life and helps to improve performance. Hankook Batteries are completely maintenance free and also have deep cycle capability. They are very heavy duty and are very vibration resistant. 330mm L x 172mm W x 242mm H inc terminals.
This kit is relatively easy to install if you have basic DIY skills. We are always on hand to help if you need some guidance. There are a few handy videos for installation for you to watch if you need a few handy tips for installation.
Please feel free to call us on 01626 905454 where we will be able to offer you some assistance.
These kits are fairly easy to install if you have basic DIY skills. We are always on hand to help if you need some guidance. also, please look at the suggested system size that is available with the images of the product
Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance.
5-Year Limited Warranty on materials and workmanship.
Sealed, waterproof, multifunctional junction box gives high level of safety.
High-performance bypass diodes minimise the power drop caused by shade.
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
A sturdy, anodised aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
Low voltage-temperature coefficient enhances high-temperature operation.
MPPT: Ultra Fast Maximum Power Point Tracking
Remote Monitoring and Control

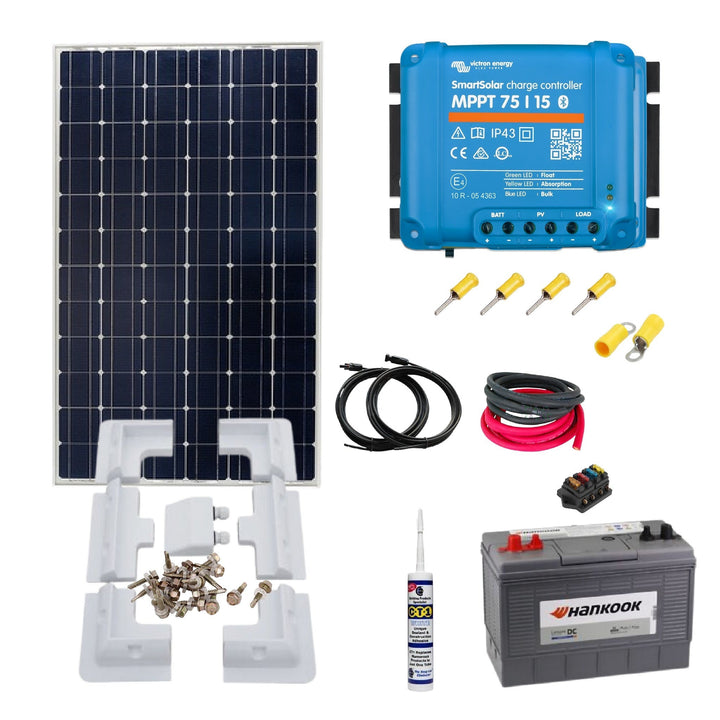

Whats in the Box
- Victron Solar Panel 175W-12V Poly or Mono 1485x668x30mm Series 4a
- Victron SmartSolar MPPT 75/10
- 6 Corner Roof fixings with Cable Gland
- CT1 High adhesive Bond for solar mounting fixing to the roof
- 2 x 5 meters of cable with male and female MC4 connectors.
- 6mm Squared Battery from MPPT, also come with pin connectors for MPPT end and lugs for the Battery termination
- 4 Way Fuse holder with Fuses
- Either select one of the following
- 100 Ah Lesuire (C20) (Wet) Battery
- Victron 110 ah Deep Cycle AGM Battery
