Victron Marine Kit. 175 Watt Solar Panel, PWM LCD & USB, Solar Brackets with Cable Gland, Solar Cable and MC4 Connectors. MA10B

This solar panel kit would provide charge to your leisure battery via the solar charge controller ensuring your battery maintains its optimal performance extending your off-grid adventure providing more power.

Did you know the average sun hours per day in the UK can range from just 1 hour in December to over 7 hours in June. On that basis we assume overall average of 4 hours per day your 175W Solar Panel could produce 460wh per day on average clearly more in summer than winter.

This kit is designed for the client that wants the assurance of quality branding.

We Offer 2 Option:

• Option 1: 175 Watt Polycrystalline Solar Panel, With Usb & Screen PWM
• Option 2: 175 Watt Monocrystalline Solar Panel, With Usb & Screen PWM

What is the difference between monocrystalline and polycrystalline solar panels?

The main difference between the two technologies is in the crystal purity of the panel cells. Monocrystalline solar panels have solar cells made from a single crystal of silicon while polycrystalline solar panels have solar cells made from several fragments of silicon melted together. The crystalline purity of the cells of monocrystalline solar panels is therefore much higher than that of polycrystalline solar panels.

The PWM charge controller has a Liquid Crystal Display for ease of programming and also has two useful USB ports for charging phones or tablets. The PWM offers a Day/Night timing option this allows for a On-time after Dusk

A low-cost alternative to an MPPT, these are great for keeping batteries charged for long periods of time. They have a useful two-port USB output for charging phone and tablets

Liquid crystal display, For status monitoring and set-up

Load output

Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

Day/night timing of the load output This option allows for a pre-set ON-time after dusk. Programmable battery charge algorithm Pre-programmed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only) Two 5 Volt USB outputs Maximum current (both outputs combined): 2A

Victron 175watt solar panels

Low voltage-temperature coefficient enhances high-temperature operation.
Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance.
5-Year Limited Warranty on materials and workmanship.
Sealed, waterproof, multi-functional junction box gives a high level of safety.
High-performance bypass diodes minimize the power drop caused by shade.
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation. A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.

This kit is fairly easy to install if you have basic DIY skills. We are always on hand to help if you need some guidance. There are a few handy videos for installation for you to watch if you need a few handy tips for installation.

Please feel free to call us on 01626 905454 where we will be able to offer you some assistance.

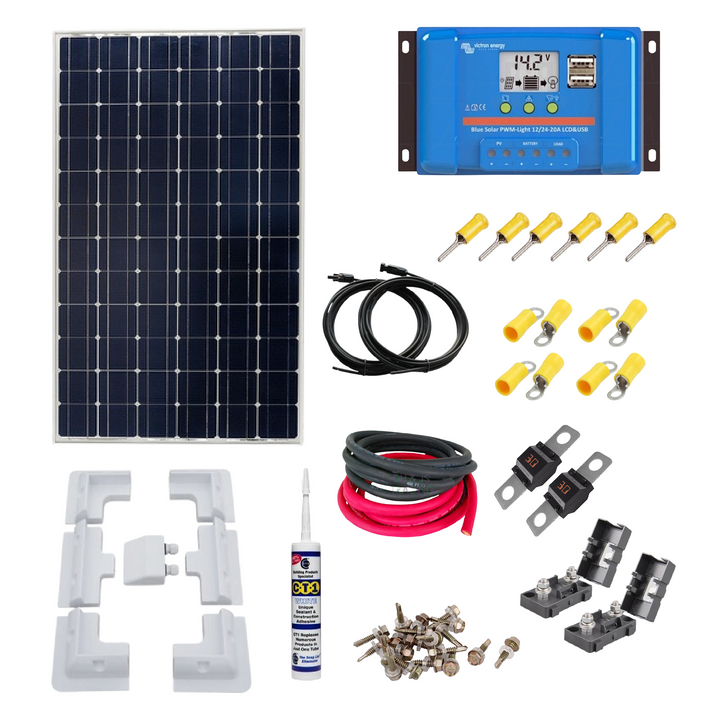

Whats in the Box

• Victron 175 Watt solar panel
• Victron solar charge controller -PWM LCD&USB
• 1m 6mm cable red
• 1m 6mm cable black
• 1 x pair 5m solar extensions with MC4's
• 1 x 6 Piece Solar Mounting kit with corners and midsection with cable gland
• CT1 sealant
• 2 x midi fuse holders
• 2 x 30A midi fuses
• 6 x pin connectors
• 4 x 6mm lugs
• 2 x 8mm lugs
• Drawing
• Panel fitting guide
