Victron Marine Kit. 230 Watts of Solar Power, PWM Charge Controller, Cable, Mounting & Gland. MA12
This product is eligible for the "AWESOME AUTUMN" discount.
That means you may save an extra £44.71 off this product. The discount will be applied automatically at checkout if applicable!
This is a powerful solar panel kit for boats and is good for general needs. This solar kit is ideal for keeping your Leisure battery charged. The PWM charge controller has...
Nexy Day Delivery Available! Ends in:
(Order before midday on a business day)
Found this product cheaper elsewhere?
If you have found this product cheaper elsewhere use the live chat or call our team on 01626905454 and if our team can verify the price difference we will match it.
This is a powerful solar panel kit for boats and is good for general needs. This solar kit is ideal for keeping your Leisure battery charged.
The PWM charge controller has a Liquid Crystal Display for ease of programming and also has two useful USB ports for charging phones or tablets. The PWM offers a Day/Night timing option this allows for a On-time after Dusk
This kit is fairly easy to install if you have basic DIY skills. We are always on hand to help if you need some guidance. There are a few handy videos for installation for you to watch if you need a few handy tips for installation.
Please feel free to call us on 01626 905454 where we will be able to offer you some assistance.
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.
Day/night timing of the load output This option allows for a pre-set ON-time after dusk. Programmable battery charge algorithm Pre-programmed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only) Two 5 Volt USB outputs Maximum current (both outputs combined): 2A
Victron 115watt solar panels
Low voltage-temperature coefficient enhances high-temperature operation.
Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance.
5-Year Limited Warranty on materials and workmanship.
Sealed, waterproof, multi-functional junction box gives a high level of safety.
High-performance bypass diodes minimize the power drop caused by shade.
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.

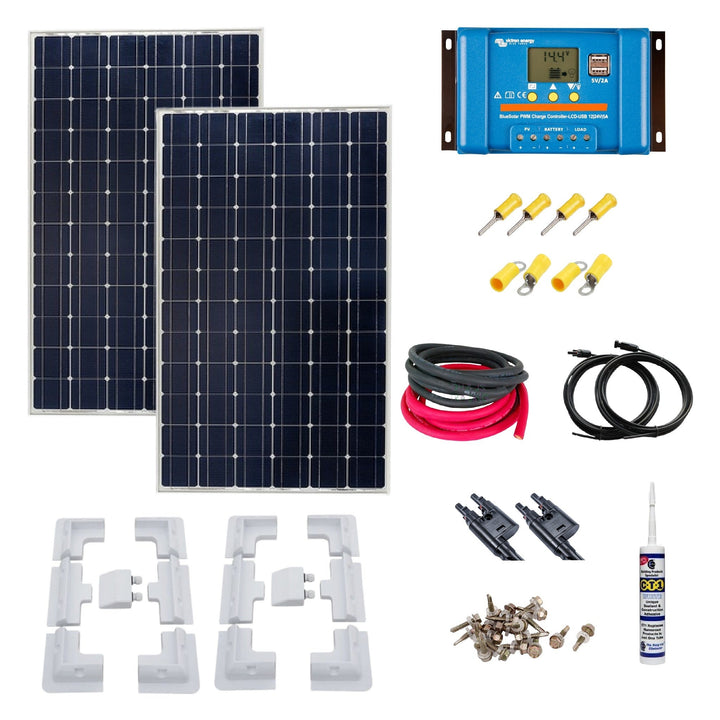

Whats in the Box
- Victron 2 X 115 Watt solar panel monocrystalline
- Victron solar charge controller with two USB ports for charging phones
- 6 piece roof fixings including cable gland
- 1 pair of 5m solar extensions with MC4's.
- CT1 adhesive
- 4 x pin connectors
- 2 x 6mm lugs
- 2 x 8mm lugs
- 1 metre 6mm cable red for controller to battery
- 1 metre 6mm cable black for controller to battery
- Splitters
- Diagram
- Panel fitting guide
