Victron 175 Watt Solar Panel, Smart MPPT, Orion DC DC Charger, Victron Multiplus Inverter Charger, Cable & Mounting. KIT11D
Secure Checkout
It also comes with a DC to DC/Battery to Battery Charger. Which allows you to charge a battery from the starter battery whilst driving.
This Kit will also comes with a Victron Multiplus inverter/charger to convert your DC power from the batteries into 230 volt to power your everyday appliances that use AC. It comes with the 800VA(800W) inverter/charger.
This kit an all in one package that is ideal to provide you with real comfort whilst on your travels.
This comes with the full DC wiring kit shown in the images and is relatively easy to install if you have basic DIY skills.

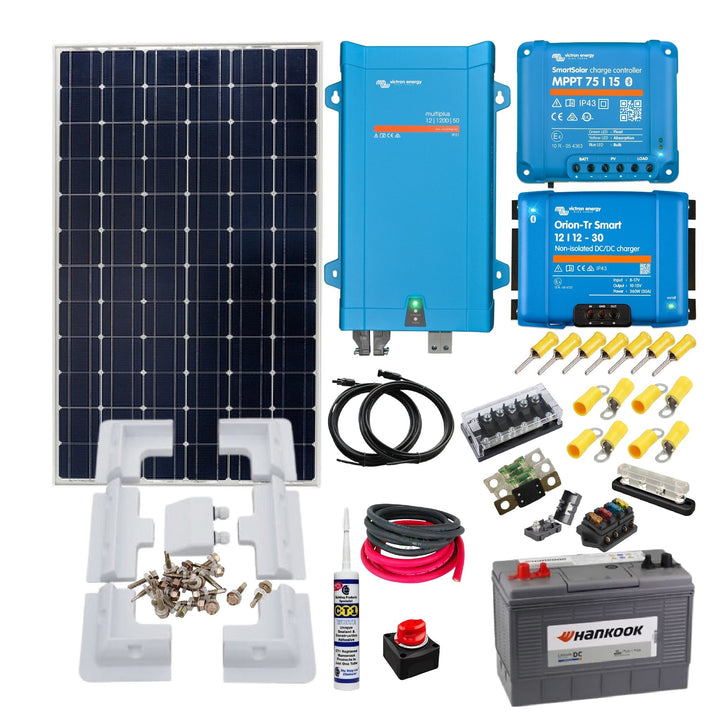

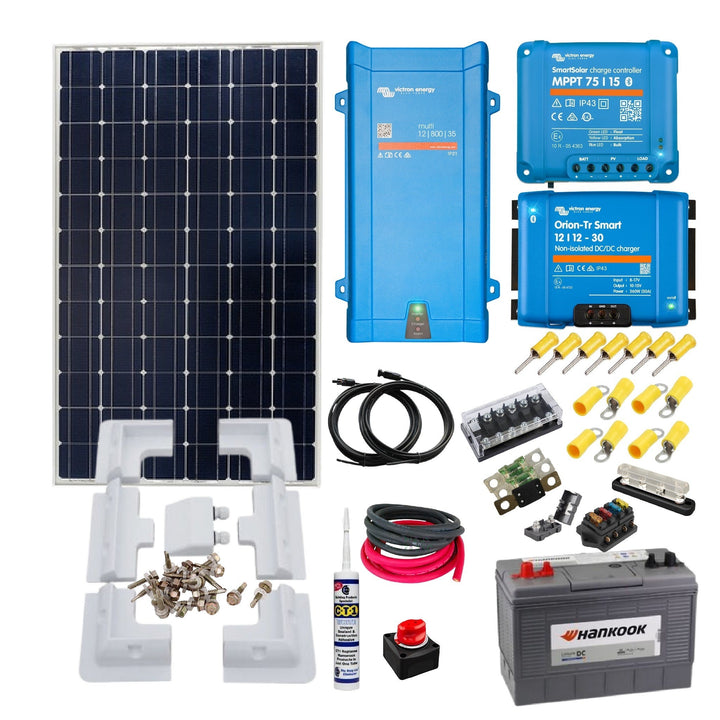

What's in the Box?
Select one of the following Batteries:
1 x Hankook 100 Ah (c20) Leisure (Wet) Battery - (fine for weekends away)
1 x Victron 100 Ah Super Cycle AGM Battery - (ideal for weekends and long periods off-grid)
It comes with the following Victron Multiplus Inverter Charger:
1 x Multiplus 12/800VA with 2 x 150A MEGA fuses
1 x Orion 12|12|30 Battery to Battery charger (Non Isolated version)
1 x Victron Solar Panel 175W-12V Mono (1485mm x 668mm x 30mm)
1 x Victron Smart Solar Charge Controller MPPT 75/15 (With Bluetooth)
6 x Corner Roof fixings with Cable Gland
1 x CT1 High adhesive Bond for solar mounting fixing to the roof
1 x pair of 5m solar extensions with MC4's
2 x 1 metre of 6mm2 cable for Battery from MPPT (1 x red, 1 x black)
4 x 1 metre of Battery cable from inverter Busbar and from Busbar to the battery (red and black) (cable size dependent on inverter size)
Busbar 150A 4P +cover for common negative busbar
1 x Midi fuse holder with 60A midi fuse
1 x MEGA MIDI Fuse holder and with 30A and 60A MIDI fuses (+ inverter fuses)
1 x Battery isolator switch
2 metres of red 16mm Dc cable
2 metres of black 16mm Dc cable
An assortment of pin connectors and lugs
Panel fitting instructions

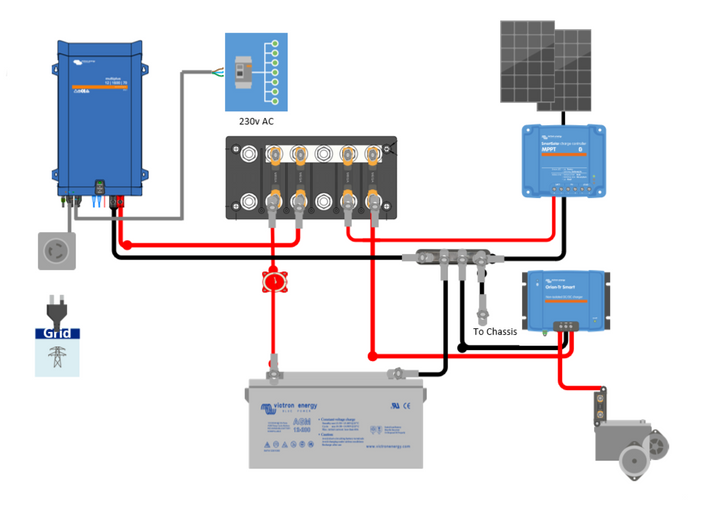

Wiring diagram
These kits are fairly easy to install if you have basic DIY skills, however, we are always on hand to help if you need some guidance. also, Please also look at our Installation Videos: Installation Guides.
Please feel free to call us on 01626 905454 where we will be able to offer you some assistance.
