Split charge relay 12/24V-230A

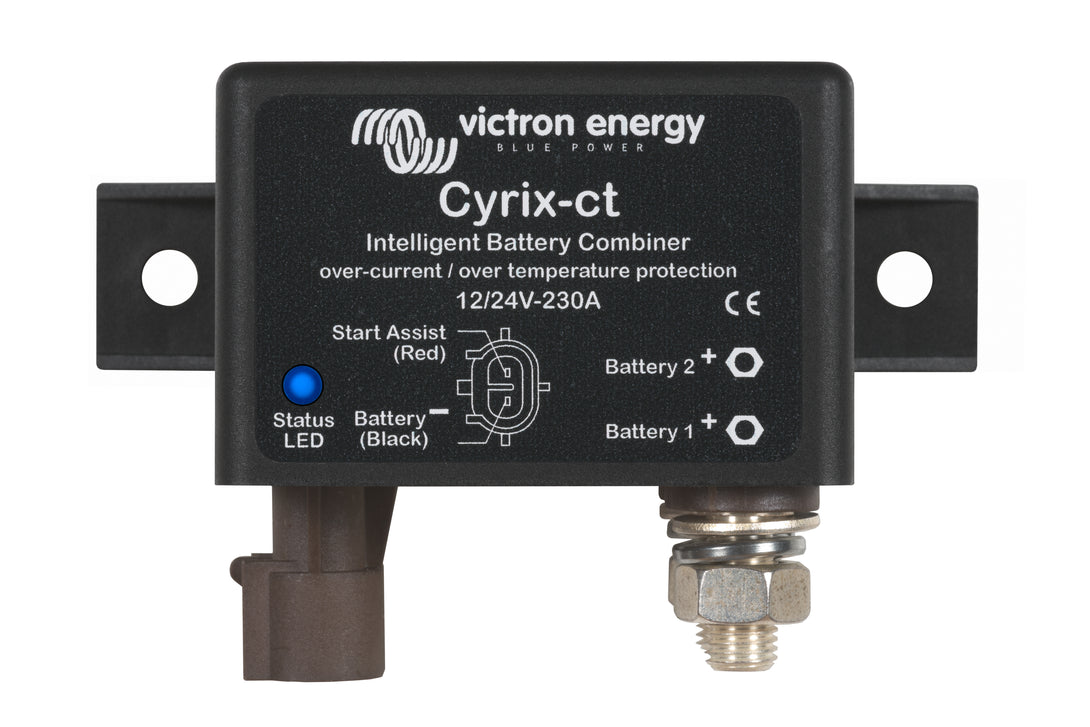

The Victron Energy Cyrix-ct 12/24V-230A Intelligent Battery Combiner is a microprocessor-controlled relay that automatically connects and disconnects batteries based on voltage levels, ensuring efficient charging and discharging cycles without voltage loss.

Automatic Voltage Detection: Automatically detects system voltage (12V or 24V). No Voltage Loss: Ensures efficient power transfer without the need for increased output voltage. Start Assist Feature: Allows manual parallel connection in emergencies. Overheating Protection: Disengages during excessive temperatures and re-engages once cooled. LED Status Indicators: Provides clear visual feedback on system status.
£144.00 £126.00 SAVE £18.00
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: CYR010230010
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Energy Cyrix-ct 12/24V-230A Intelligent Battery Combiner is designed to manage dual battery systems by automatically connecting and disconnecting batteries based on voltage levels. This ensures that batteries are charged efficiently without the need for increased output voltage, making it an excellent replacement for diode isolators.

Key Features:

  • Automatic Voltage Detection: Automatically detects system voltage (12V or 24V).
  • No Voltage Loss: Ensures efficient power transfer without the need for increased output voltage.
  • Start Assist Feature: Allows manual parallel connection in emergencies.
  • Overheating Protection: Disengages during excessive temperatures and re-engages once cooled.
  • LED Status Indicators: Provides clear visual feedback on system status.
  • Dimensions: 65 x 100 x 50 mm.
  • Weight: 0.27 kg.
  • Control Cable: Includes a 1-meter control cable.
  • Ingress Protection: IP54 rated for protection against dust and water.
  • Cranking Rating: 500A for 5 seconds.
  • Continuous Current: 230A.
  • Connect Voltage: From 13.0V to 13.8V (12V system) or 26.0V to 27.6V (24V system).
  • Disconnect Voltage: From 11.0V to 12.8V (12V system) or 22.0V to 25.7V (24V system).
  • Current Consumption: <4 mA when open; 220 mA (12V) or 120 mA (24V) when closed.

Applications

Ideal for off-grid, marine, and RV applications where dual battery systems are used. The Cyrix-ct ensures that both batteries are charged efficiently and are disconnected when not in use, preserving battery life and system efficiency.


Product Specifications

Technical Specifications

Combined for SKUs: CYR010230010

Battery Negative Terminal: Two pole connector

Battery Terminals: M8 bolts

Connect Voltage: From 13 to 13.8V and 26 to 27.6V with intelligent trend detection

Continuous Current: 230 A

Control Cable Included: Yes

Cranking Current Rating: 500 A

Current Consumption Closed12: 320 mA

Current Consumption Closed24: 180 mA

Current Consumption Open: 4 mA

Depth: 50 mm

Disconnect Voltage: From 11 to 1.8V and 22 to 25.7V with

Height: 65 mm

Protection Category: IP54

Start Assist: Yes (Cyrix remains engaged during 30 seconds)

Start Assist Terminal: Two pole connector

Weight: 0.27 kg

Width: 100 mm

Source: Victron
