Victron EasySolar 12/1600/70-16 230V MPPT 100/50

An all-in-one solar power solution: the EasySolar 12/1600/70-16 230 V MPPT 100/50 combines an inverter/charger, MPPT solar charge controller and AC distribution in a single enclosure for minimal wiring and streamlined installation.

True all-in-one solution: Inverter, charger and MPPT solar controller combined for minimal system wiring. High performance: 1600 VA inverter output and 70 A charger capacity in 12 V configuration. Simplified solar integration: MPPT 100/50 allows three PV strings and efficient solar charging. Smart power management: PowerAssist protects your generator or grid from overload. Space-saving form: Slim and vertically orientated cabinet makes for neater installations.
£1,578.00 £1,144.05 SAVE £433.95
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: CEP121621000
AVAILABLE IN 7-10 DAYS
Product Details

The EasySolar 12/1600/70-16 230 V MPPT 100/50 integrates a high-performance inverter/charger (1600 VA at 12 V) with a BlueSolar MPPT 100/50 charge controller and built-in AC distribution board.

It enables you to charge your house battery bank from solar panels, AC mains or generator, all within one compact unit. The MPPT controller accepts up to three strings of PV panels via three MC4 PV connectors.

Installation is simplified thanks to the single enclosure concept with AC circuit breakers (two 10 A and two 16 A), RCD protection (30 mA/16 A) and a transfer switch (16 A) included.

Key Features:

  • Streamlined Integration: The EasySolar 24/1600-40-16 combines a MPPT Solar Charge Controller, an inverter/charger, and AC distribution within a single enclosure, ensuring a straightforward installation with minimal wiring.

  • Solar Power Convenience: This all-in-one solution offers the benefits of:

    • A MPPT solar charge controller
    • An inverter/charger
    • AC distribution

    All packaged in one enclosure for easy setup.

  • Solar Charge Controller: Utilize the Blue Solar MPPT 100/50 controller to connect up to three strings of PV panels with PV connectors (MC4).

  • PowerAssist Technology: The system's unique PowerAssist feature safeguards your utility or generator supply, preventing overloads by supplying additional inverter power when required.

  • Remote System Control: Achieve perfect control from anywhere by considering the Cerbo GX. Simply connect through the Victron Remote Management (VRM) portal or access it directly via the GX Touch, a Multi-Functional Display (MFD), or the VictronConnect App, featuring Bluetooth capability. The latest addition to the GX-range offers unparalleled connectivity and smart power solutions.

  • MK3-USB Connectivity: The MK3-USB allows EasySolar to connect to a computer for convenient configuration and firmware updates.

  • Going Off-Grid? Explore the TN Power lithium battery range, offering exceptional advantages:

    • Utilizes lithium iron phosphate cell technology for superior safety and longevity.
    • Built-in automatic protection against over-charge, over-discharge, over-current, and over-temperature.
    • Maintenance-free operation.
    • Internal cell balancing.
    • Lighter weight (40% - 50% of a comparable lead-acid battery).
    • Compatible with most standard lead-acid chargers.
    • Operates across a wider temperature range (-20°C to 60°C).
    • Supports series application expansion (up to 51.2V) and parallel connections.
Product Specifications

Technical Specifications

Combined for SKUs: CEP121621000

AC Connection Terminal Type: G-ST18i plug

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Automotive Directive: ECE R10-4

Auxiliary Output: Yes

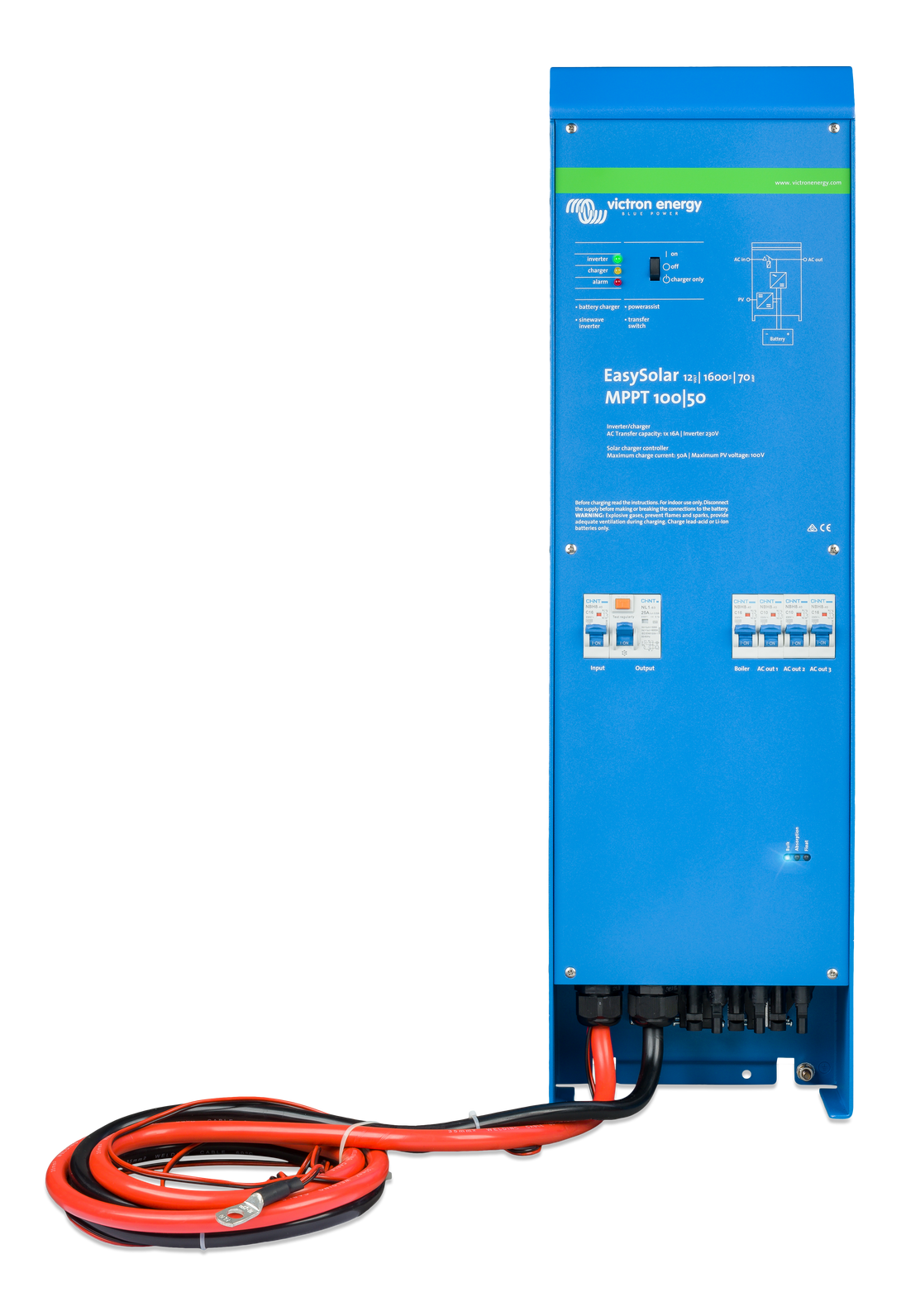

Battery Connection Terminal Type: Red and black 1.5 meter cable with M8 eyelets

Battery Voltage Nominal: 12 V

Charge Algorithm: Multi-stage adaptive

Charge Algorithm1: Multi-stage adaptive

Charge Voltage Absorption: 14.4 VDC

Charge Voltage Absorption1: 14.4 VDC

Charge Voltage Float: 13.8 VDC

Charge Voltage Float1: 13.8 VDC

Charge Voltage Storage: 13.2 VDC

Colour: Blue (RAL 5012)

Computer Programming: Yes

Continuous Power (VA, 25°C): 1,600 VA

Continuous Power (W, 25°C): 1,300 W

Continuous Power (W, 40°C): 1,200 W

DC Input Voltage Range: [9.5, 17] VDC

Depth: 110 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-3

Fan Assist Cooling: Yes

Heavy Ac Current: 16 A

Height: 745 mm

Material: Aluminium

Max Efficiency: 92 %

Max Humidity: 95 %

Max Output Current Solar: 50 A

Max Pv Open Circuit Voltage: 100 V

Max Pv Power: 700 W

Maxi Efficiency Solar Charger: 98 %

Maximum Battery Charge Current: 70 A

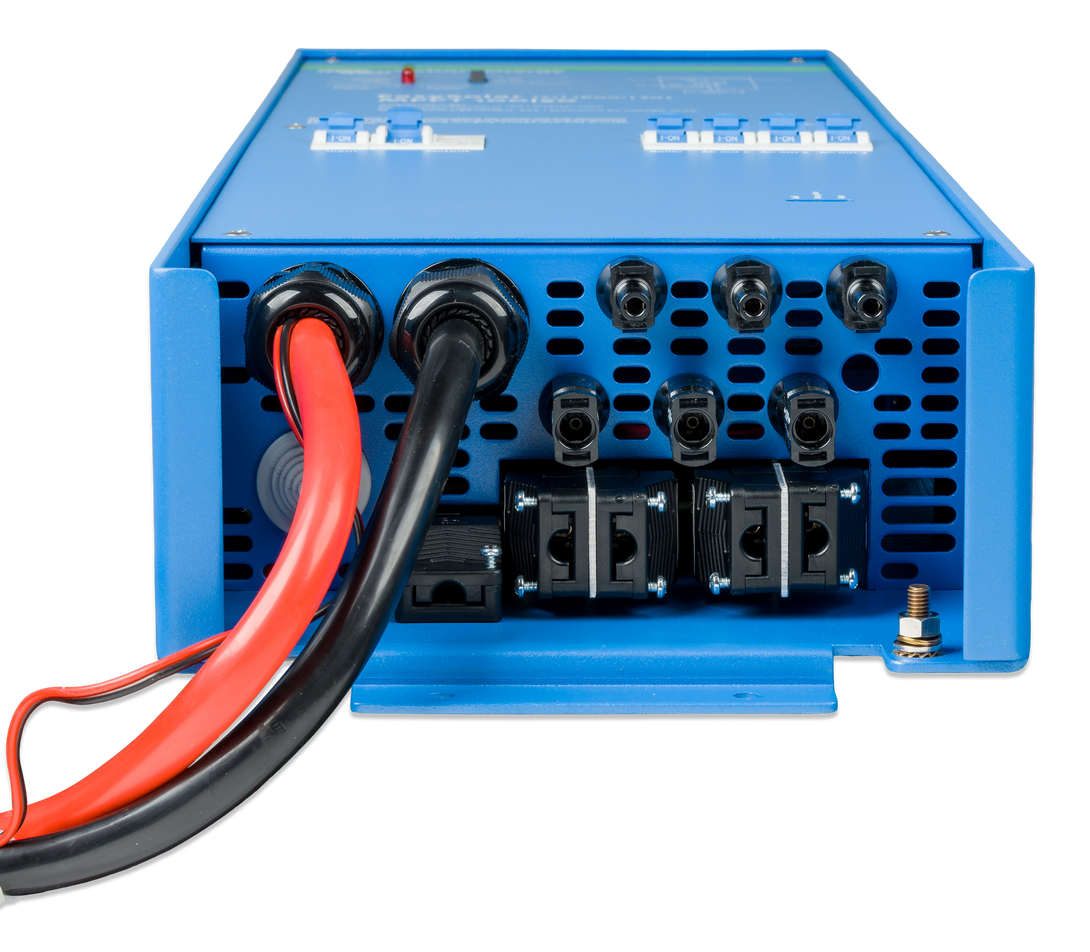

PV Connection Terminal Type: MC4 connectors (three pairs)

Peak Power Rating: 3,000 W

Power Assist: Yes

Power Control: Yes

Programmable Relay: Yes

Protection Category: IP21

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-2

Self Consumption: 10 mA

Solar Charger Model: MPPT 100/50

Starter Battery Charge Current: 4 A

Temperature Sensor: Included

Transfer Switch Current Rating: 16 A

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 15 kg

Width: 214 mm

Zero Load Power: 8 W

Zero Load Power (Search): 2 W

Source: Victron
