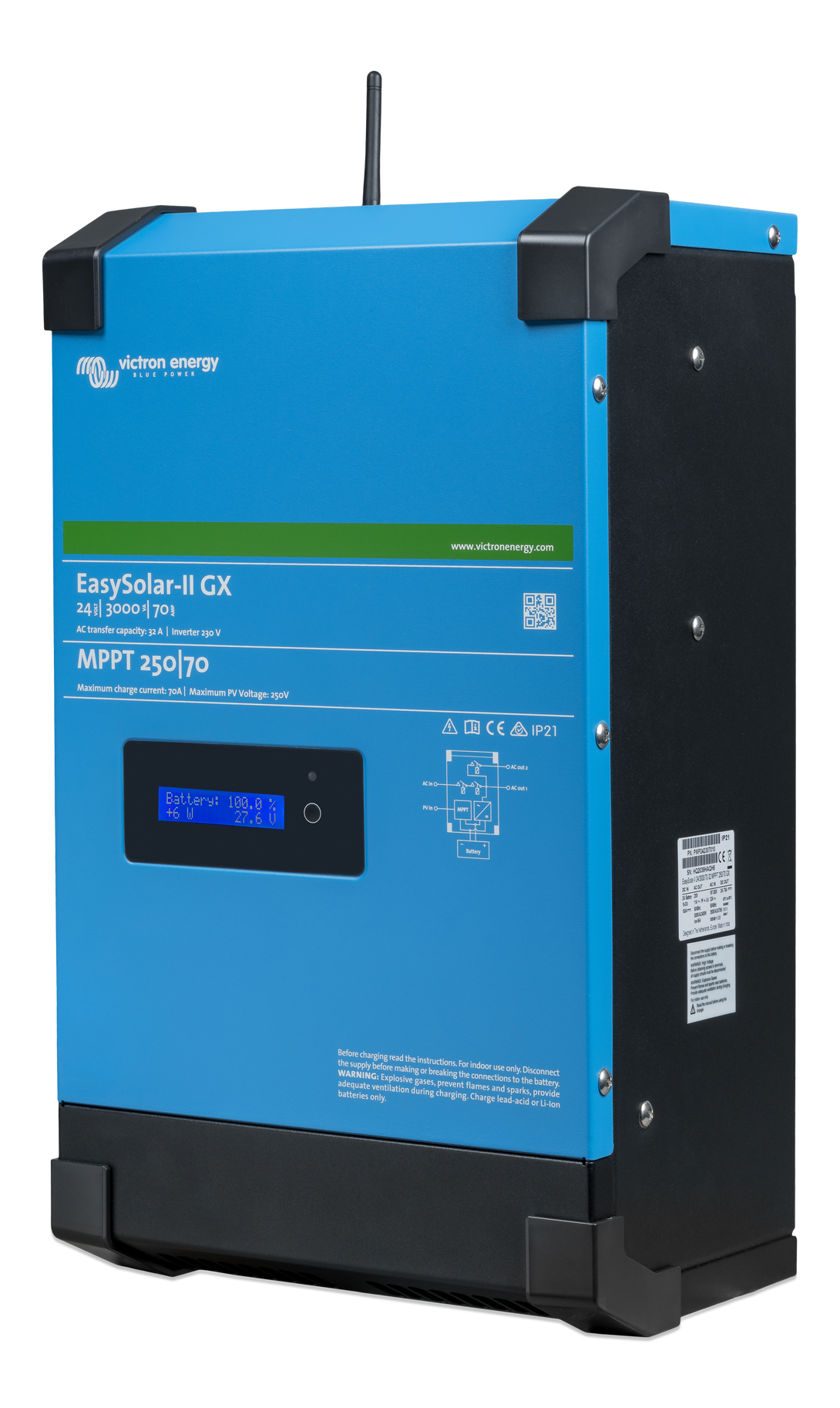

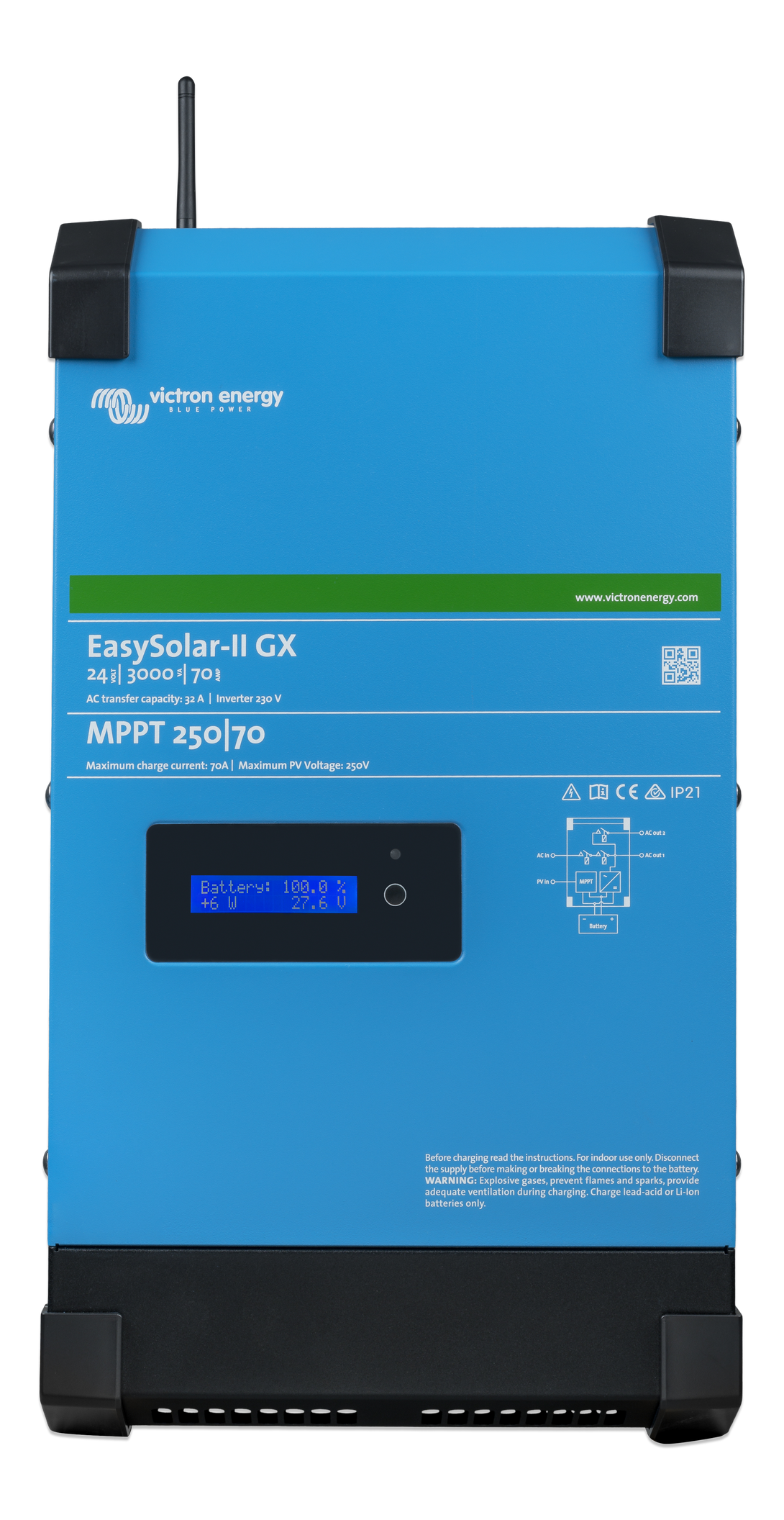

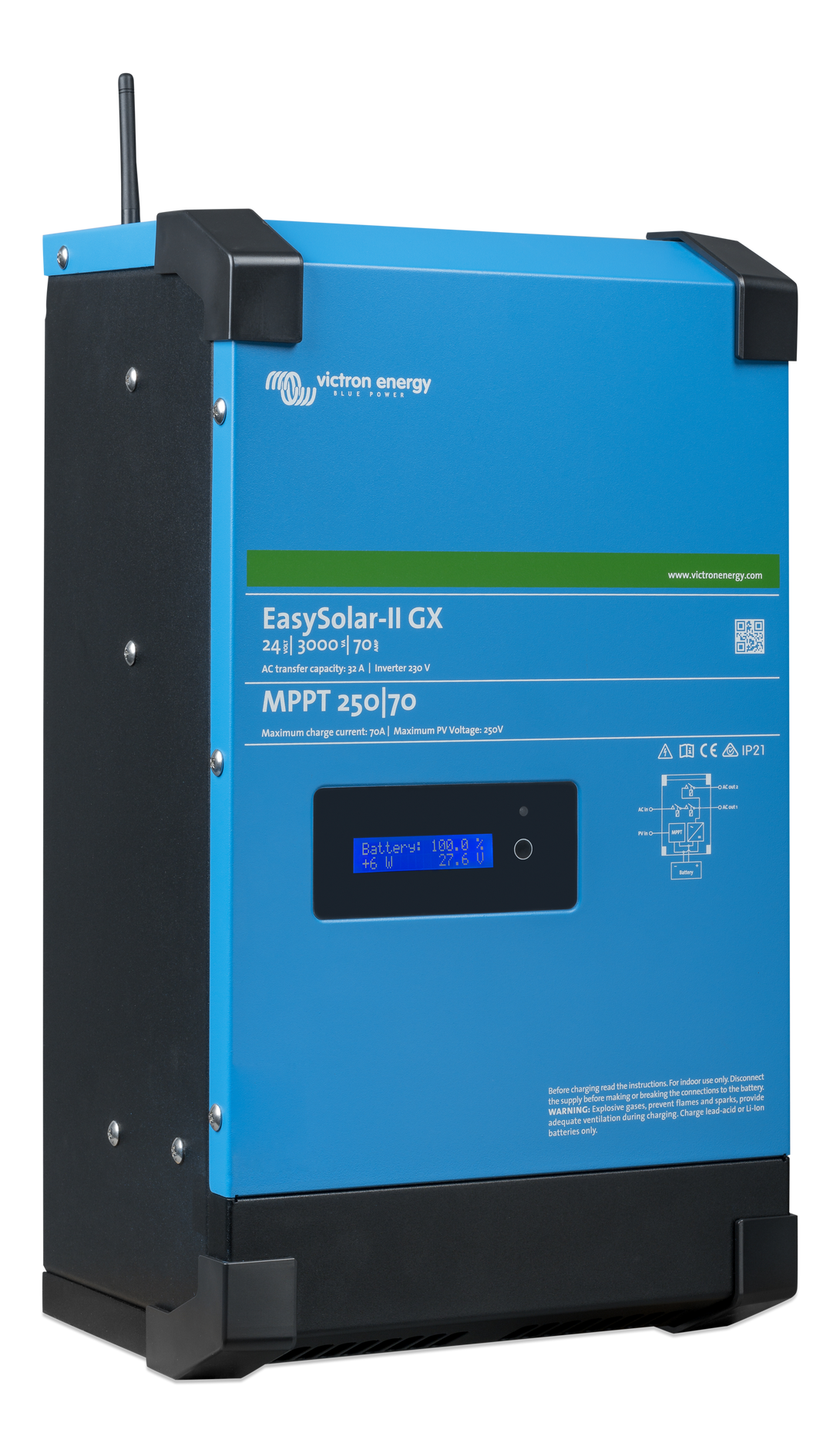

EasySolar-II 24/3000 – 3-In-1 Charge Controller, Inverter/Charger, GX Device

3000VA pure sine wave inverter/charger built in. 250/70 SmartSolar MPPT charge controller built in. GX smart monitoring device built in.
£1,857.60 £1,124.49 SAVE £733.11
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP242307010
AVAILABLE IN 7-10 DAYS
Product Details

The Victron EasySolar-II 24/3000/70-32 is an advanced solar power solution that combines a solar charge controller, inverter/charger, and a smart control hub in a single, integrated device. This all-in-one design minimizes wiring complexity, offering a comprehensive solar energy management system. Here are the key features and details:

Key Features:

Integrated MPPT Solar Charge Controller:

The device incorporates a SmartSolar MPPT charge controller, wired in parallel with the inverter/charger.
SmartSolar technology optimizes energy harvest from solar panels, achieving full charge efficiently.
Intelligent charging maintains battery health, extending overall battery life.

MultiPlus-II Inverter/Charger:

Features a MultiPlus-II inverter/charger, serving as a powerful pure sine wave inverter and a sophisticated battery charger.
Converts 24V DC power from leisure batteries to 230V AC power, enabling the operation of up to 3000VA domestic appliances in off-grid scenarios.
Seamlessly switches between different power sources, automatically transitioning from hookup power to battery power and vice versa.

GX Device - Monitoring and Control Hub:

The GX device acts as the central monitoring and control hub of the system.
All system components, including the solar charge controller, inverter/charger, and batteries, connect to the GX device.
Provides both local and remote monitoring capabilities through the Victron Remote Management (VRM) app and computer program.
Allows for remote firmware updates and adjustments to inverter/charger settings.

Remote Monitoring and Firmware Updates:

Enables monitoring of the system locally and remotely via the free Victron Remote Management app and computer program (VRM).
Facilitates remote firmware updates for system optimization.

Efficient Energy Harvesting:

SmartSolar MPPT technology ensures intelligent and efficient energy harvesting from solar panels, maximizing the use of available sunlight.

All-in-One Solar Power Solution:

Combines multiple components into a single, integrated device, simplifying installation and reducing wiring complexity.

Automatic Power Source Switching:

Seamless transition between different power sources, eliminating the need for manual switching.
Product Specifications

Technical Specifications

Combined for SKUs: PMP242307010

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: See our website

Aux Ac Current: 32 A

Auxiliary Output: Yes

Battery Connection Terminal Type: M8 bolts

Battery Voltage Nominal: 24 V

Charge Algorithm: Adaptive, 4-stage

Charge Algorithm1: Adaptive, 4-stage

Charge Voltage Absorption: 28.8 VDC

Charge Voltage Absorption1: 28.8 VDC

Charge Voltage Float: 27.6 VDC

Charge Voltage Float1: 46.4 VDC

Charge Voltage Storage: 26.4 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Direct,VE.Bus,VE.Can,BMS-Can,WiFi,Ethernet

Computer Programming: Yes

Cont Power W55: 1,700 W

Continuous Power (VA, 25°C): 3,000 VA

Continuous Power (W, 25°C): 2,400 W

Continuous Power (W, 40°C): 2,200 W

DC Input Voltage Range: [19, 33] VDC

Depth: 237 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

External Ac Current Sensor: 50A or 100A (optional)

Fan Assist Cooling: Yes

Height: 499 mm

Material: Steel

Max Ac Input Current: 32 A

Max Apparent Feed-in Power: 3,000 VA

Max Efficiency: 94 %

Max Humidity: 95 %

Max Output Current Solar: 70 A

Max Pv Open Circuit Voltage: 250 V

Max Pv Power: 2,000 W

Maxi Efficiency Solar Charger: 99 %

Maximum Battery Charge Current: 70 A

P VConnection Terminal Type: M6 bolts

Peak Power Rating: 5,500 W

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP21

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2

Self Consumption: 20 mA

Solar Charger Model: MPPT 250/70-Tr

Temperature Sensor: Included

Transfer Switch Current Rating: 32 A

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 26 kg

Width: 268 mm

Zero Load Power: 13 W

Zero Load Power (AES): 9 W

Zero Load Power (Search): 3 W
