EasySolar-II 48/5000 – 3-In-1 Charge Controller, Inverter/Charger, GX Device

£2,164.80 £1,540.00 SAVE £624.80
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP482507010
IN STOCK
Receive between -
Product Details

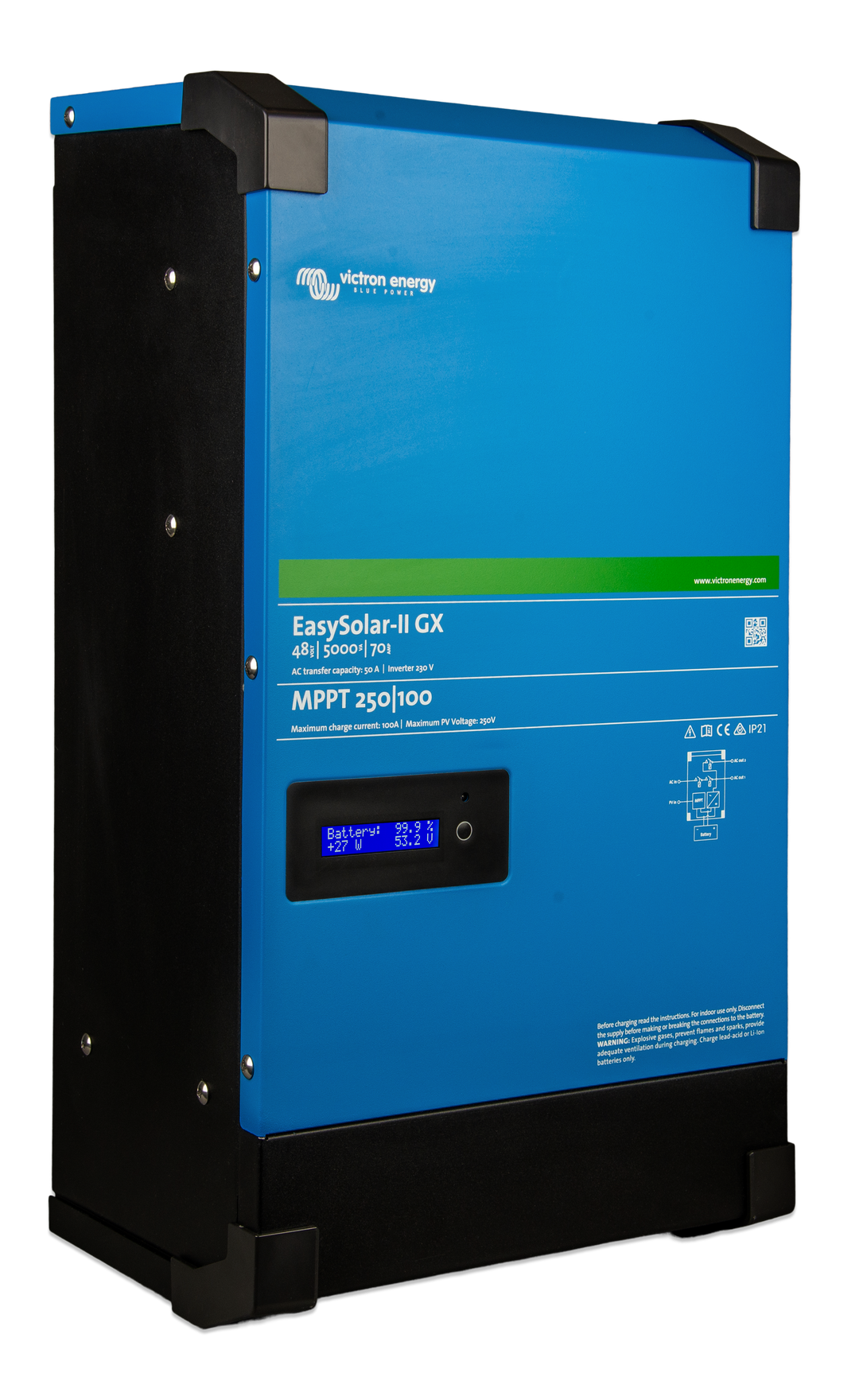

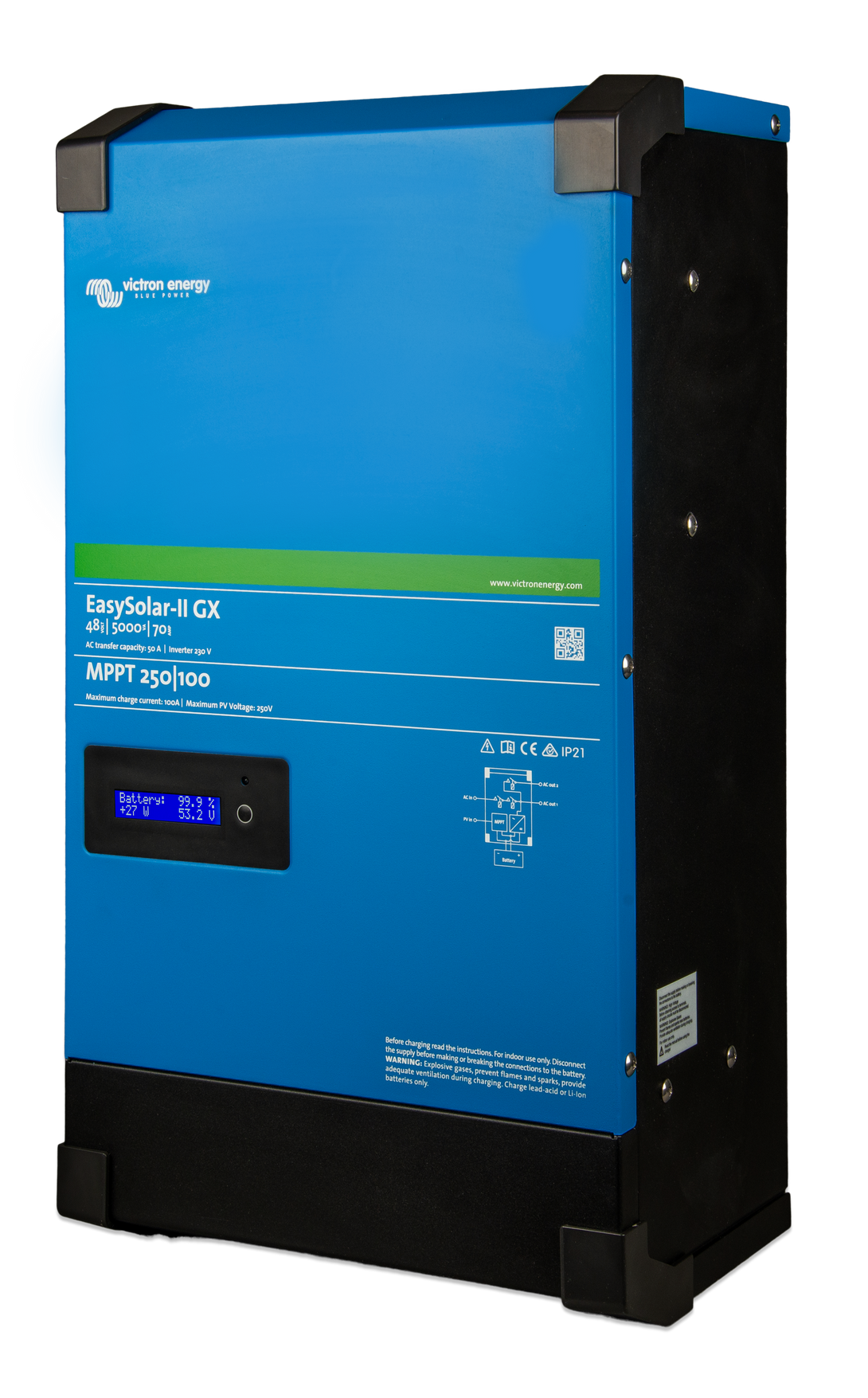

Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX – PMP482507010

  • For 48V systems.
  • 5000VA MultiPlus-II inverter/charger.
  • 250/100 SmartSolar MPPT charge controller.
  • GX smart monitoring device built in, featuring remote connectivity, VE-Can, USB, Ethernet and VE.Direct.



The Victron EasySolar-II 48/5000 combines an MPPT solar charge controller, an inverter/charger, and an intelligent control hub into a single, comprehensive device. This all-in-one solar power solution minimizes wiring complexity, ensuring efficient and intelligent energy management. At its core, the GX device functions as the central monitoring and control center for your entire electrical system.

Key Features:

  • All-in-One Solution: Integrates an MPPT solar charge controller, Multiplus-II inverter/charger, and GX control device into a single, compact unit. Simplifies installation, reduces wiring complexity, and provides a seamless solar power solution.
  • SmartSolar MPPT Charge Controller: Harnesses solar energy intelligently, optimizing energy harvest with the latest MPPT technology. Achieves full charge rapidly while maintaining battery health for prolonged life.
  • MultiPlus-II Inverter/Charger: Features a robust pure sine wave inverter and sophisticated battery charger in a single unit. Converts 48V DC power from leisure batteries to 230V AC, enabling operation of up to 5000VA of domestic appliances when off-grid. Automatic power source switching between hookup and leisure batteries eliminates the need for manual intervention.
  • GX Device Monitoring: The GX device serves as the communication hub, linking and monitoring all system components and batteries. Allows both local and remote monitoring through the Victron Remote Management app and computer program (VRM). Enables remote firmware updates and configuration adjustments for the inverter/charger.
  • Efficient Energy Harvest: SmartSolar MPPT charge controller optimizes solar energy collection, making it suitable for diverse applications, including campervans, boats, and off-grid tiny houses.
  • Seamless Power Source Switching: MultiPlus-II inverter/charger automatically switches between hookup and leisure batteries, ensuring uninterrupted power supply to mains appliances.

Brand Victron Energy
Manufacturer Part Number PMP482507010
GTIN 8719076049333
Voltage 48V
Cont. Output Power at 25°C 5000VA
Peak Power 9000W
Output AC Voltage 230V
Transfer Switch 50A
Max. AC Input Current 50A
Max. Battery Charge Current 70A
Protection Category IP21
Efficiency 96%
Bluetooth Compatible Yes
Dimensions H604 x W323 x D253mm
Weight 38.6Kg
Warranty 5 Years
Country of Manufacture India

Product Specifications

Technical Specifications

Combined for SKUs: PMP482507010

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: See our website

Aux Ac Current: 50 A

Battery Connection Terminal Type: M8 bolts

Battery Voltage Nominal: 48 V

Charge Algorithm: Adaptive, 4-stage

Charge Algorithm1: Adaptive, 4-stage

Charge Voltage Absorption: 57.6 VDC

Charge Voltage Absorption1: 57.6 VDC

Charge Voltage Float: 55.2 VDC

Charge Voltage Float1: 55.2 VDC

Charge Voltage Storage: 52.8 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Direct,VE.Bus,VE.Can,BMS-Can,WiFi,Ethernet

Computer Programming: Yes

Cont Power W55: 3,000 W

Continuous Power (VA, 25°C): 5,000 VA

Continuous Power (W, 25°C): 4,000 W

Continuous Power (W, 40°C): 3,700 W

DC Input Voltage Range: [38, 66] VDC

Depth: 253 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

External Ac Current Sensor: 50A or 100A (optional)

Fan Assist Cooling: Yes

Height: 604 mm

Material: Steel

Max Ac Input Current: 50 A

Max Apparent Feed-in Power: 5,000 VA

Max Efficiency: 96 %

Max Humidity: 95 %

Max Output Current Solar: 100 A

Max Pv Open Circuit Voltage: 250 V

Max Pv Power: 5,800 W

Maxi Efficiency Solar Charger: 99 %

Maximum Battery Charge Current: 70 A

P VConnection Terminal Type: M6 bolts

Peak Power Rating: 9,000 W

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP21

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2

Self Consumption: 20 mA

Solar Charger Model: MPPT 250/100-Tr

Temperature Sensor: Included

Transfer Switch Current Rating: 50 A

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 38.6 kg

Width: 323 mm

Zero Load Power: 18 W

Zero Load Power (AES): 12 W

Zero Load Power (Search): 2 W

Source: Victron
