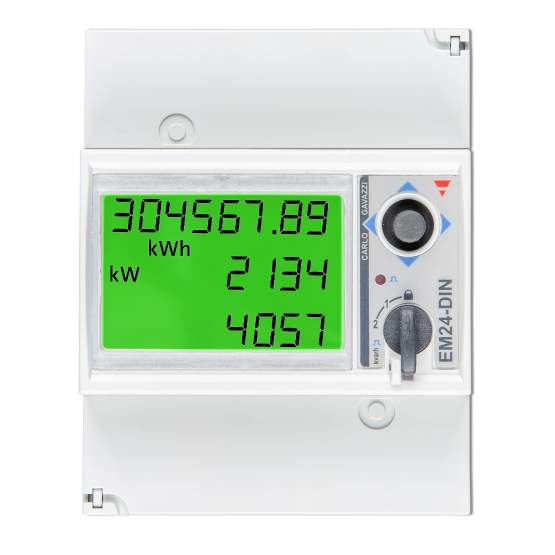

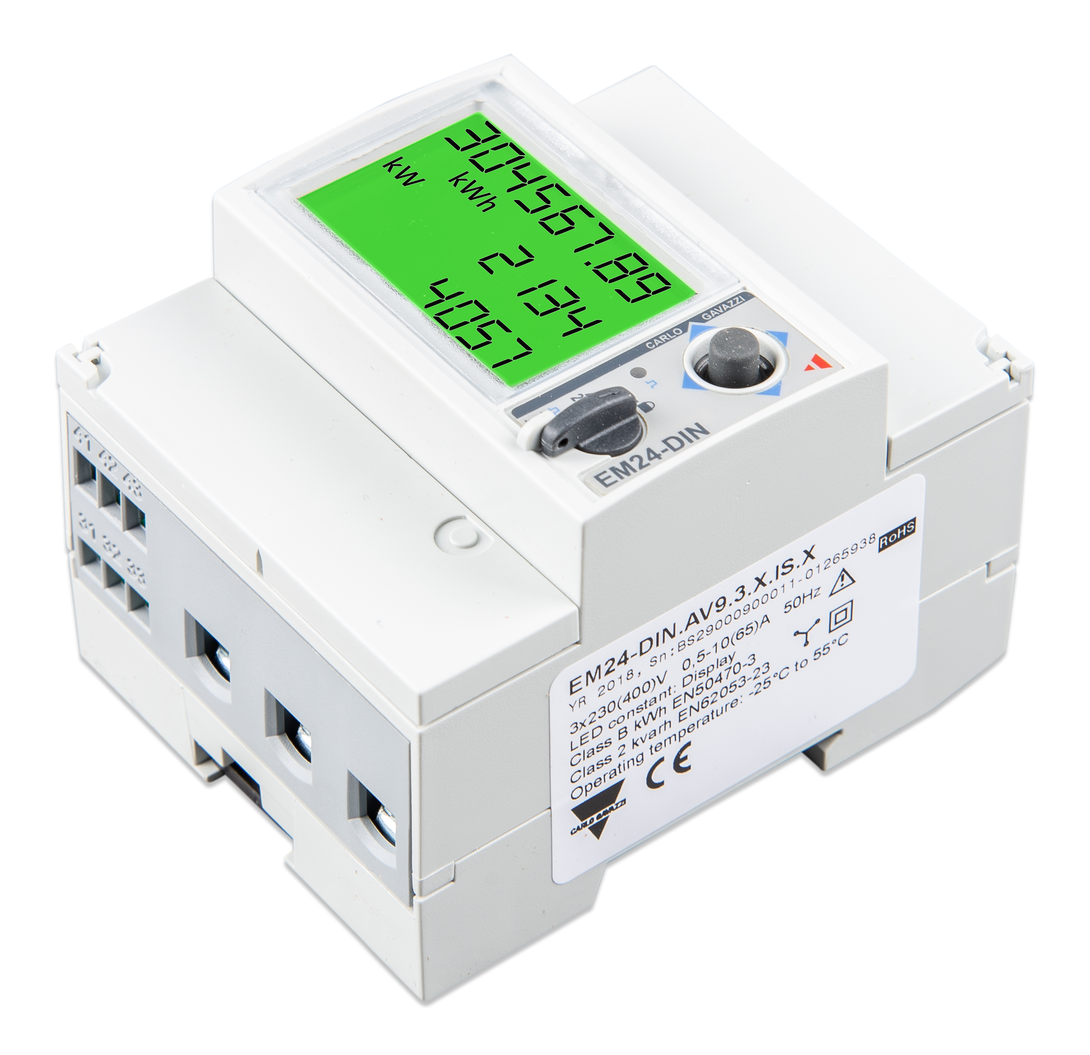

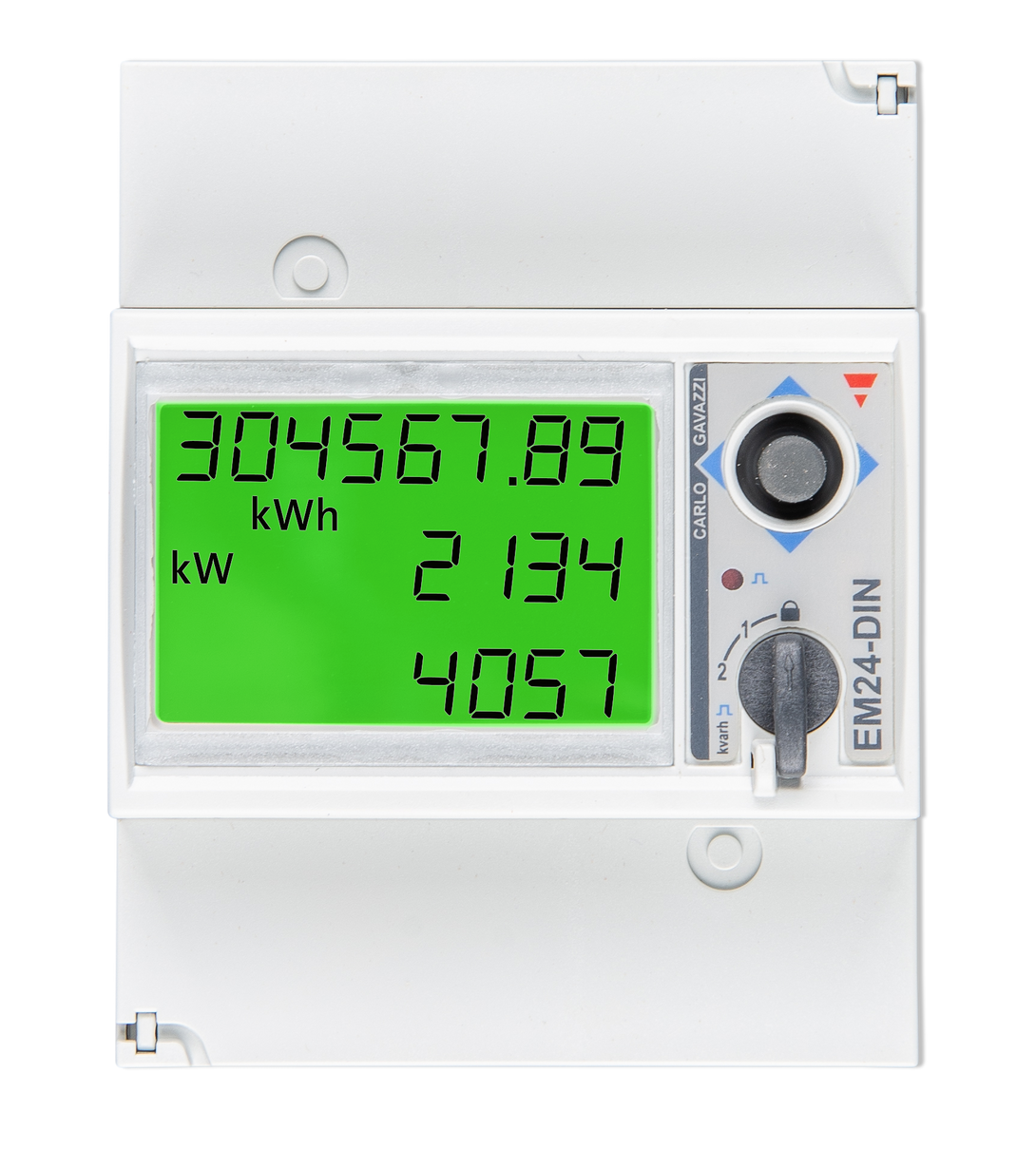

Energy Meter EM24 - 3 phase - max 65A/phase

The Victron Energy Meter EM24 is a 3-phase energy meter designed to measure up to 65A per phase. Ideal for integration with Victron GX systems, it provides accurate energy monitoring for various applications.

3-phase measurement: Accurately monitors energy consumption across all three phases. 65A per phase: Suitable for systems with up to 65A per phase. Compatible with GX systems: Seamless integration with Victron's GX devices for real-time monitoring. DIN rail mountable: Easy installation in standard electrical panels. Ethernet communication: Facilitates data transfer over a wired network for remote monitoring. Dimensions: 71.6 x 90 x 66.3mm Weight: 0.351kg
£271.20 £143.99 SAVE £127.21
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: REL200100000
IN STOCK
Receive between -
Product Details

The Victron Energy Meter EM24 is a high-precision 3-phase energy meter designed to measure up to 65A per phase. It is ideal for applications requiring detailed energy consumption data, such as energy storage systems, photovoltaic installations, and grid-tied setups.

This energy meter offers seamless integration with Victron's GX systems, including the Color Control GX and Cerbo GX, enabling real-time monitoring and control via the VRM Portal. The EM24 features an intuitive display for local readings and supports both wired and wireless communication options.

Designed for easy installation, the EM24 is DIN rail mountable, fitting standard electrical panels. Its robust construction ensures reliable performance in various environments, making it a versatile choice for both residential and commercial applications.

Product Specifications

Technical Specifications

  • Victron Part Number: REL200100000
  • Number of Phases: 3-phase
  • Maximum Current Rating: 65 A per phase
  • Measurement Type: Direct / Shunt
  • Energy Registration Method: Vector registration (Preferred method for countries such as Germany and Austria)
  • Communication Interface: RS485
  • Refresh Rate: 600 ms
  • Display: Integrated LCD

Reporting & Monitoring

  • Power Factor Reporting: Yes
  • Phase Sequence Reporting: Yes
  • GX Firmware Support: Fully supported by Victron GX devices (e.g., Cerbo GX, Color Control GX) for real-time visualization and data logging via the VRM Portal.

Connectivity & Installation

  • Connection Requirement: Requires an RS485 interface to connect to a GX device (typically via a Victron RS485 to USB interface cable).
  • Data Latency: The latency for a GX device to read data at 9600 baud is typically between 180 and 250ms.
  • Model Reference: EM24DINAV93X ISX

Key Features

  • Vector Registration: Unlike many other meters that use arithmetic registration, the EM24 uses vector registration to comply with specific regional utility requirements.
  • Direct Measurement: Capable of measuring three-phase loads up to 65A without the need for external current transformers (CTs).
  • System Integration: Provides the necessary data for the GX device to perform advanced functions like grid parallel ESS control and preventing grid feed-in.
