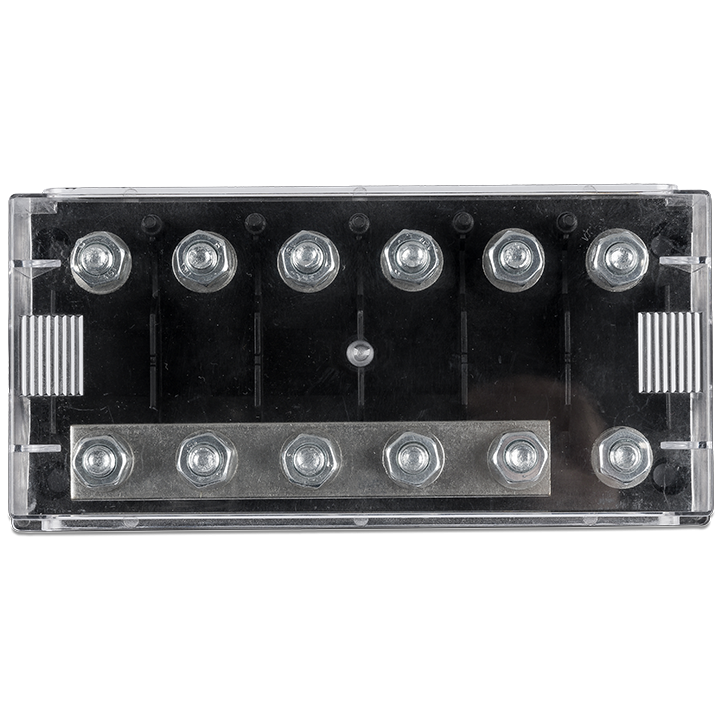

Victron Energy 6-Way Fuse Holder With Busbar for MEGA fuse
The Victron 6-Way Fuse Holder With Busbar is engineered to manage DC circuit protection efficiently by housing up to six MEGA-style fuses in a single modular unit. With a total current rating of 250 A and a 70 V DC voltage limit, this holder is ideal for taming high-current systems.
This fuse holder includes an internal busbar composed of tin-plated copper strips (3 × 18 mm), which streamlines distribution of fused power to connected circuits. The terminals use 5/16″ (8 mm) studs and galvanised steel hardware, with recommended torque of 7 N·m (60 lbf·inch) for secure connections.

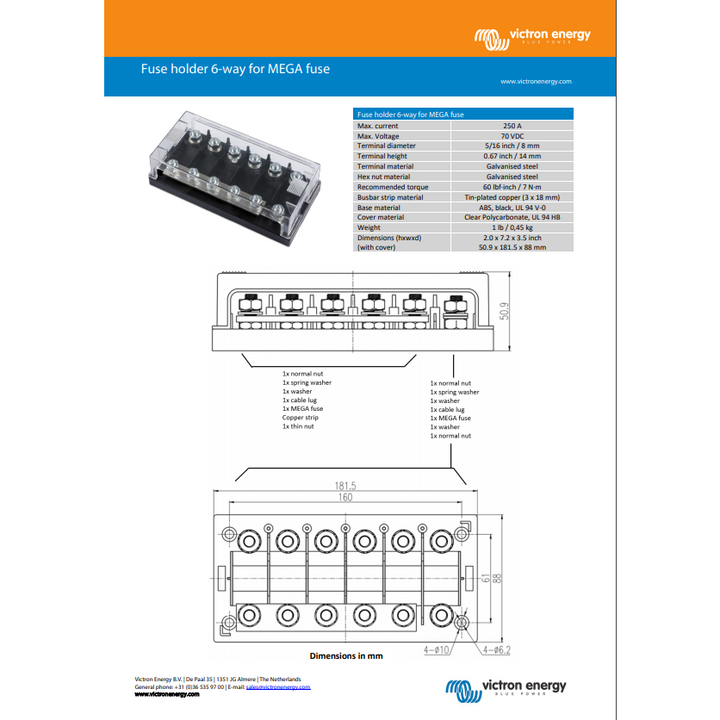

Housed in an ABS base with clear polycarbonate cover, the unit is both robust and transparent for visual fuse inspection. Its compact footprint (50.9 × 181.5 × 88 mm) makes it suitable for integration into DC distribution systems where space and clear layout matter.
This 6-way fuse holder aligns with Victron’s DC distribution philosophy and is a key component in optimising fuse layout in off-grid, marine, and mobile energy systems.
