Electrical fuse block with clear cover on a white background
Electrical fuse block with clear cover on a white background
Electrical fuse block with clear cover on a white background
Fast Delivery
Expert Support

Victron Energy Fuse holder for MEGA-fuse

£9.20
pay interest-free installments
Klarna
PayPal
IN STOCK

Single MEGA-fuse holder for clean, secure DC protection in Victron systems.

Designed for Victron MEGA-fuse installation Durable mounting for safe protection in DC circuits Compact and practical for marine, solar and industrial setups 50.8 mm centre-to-centre bolt spacing for fuse terminals Dimensions: 126 x 43.4 x 37 mm
Add to Wishlist
Arrives -

UK-wide delivery Free tracked delivery on orders over £250.

Next-day delivery UK-wide option at checkout. Delivery times apply from dispatch.

SKU: CIP000100001
Product Details

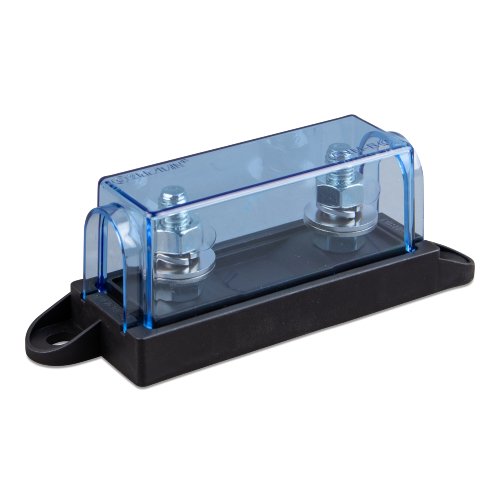

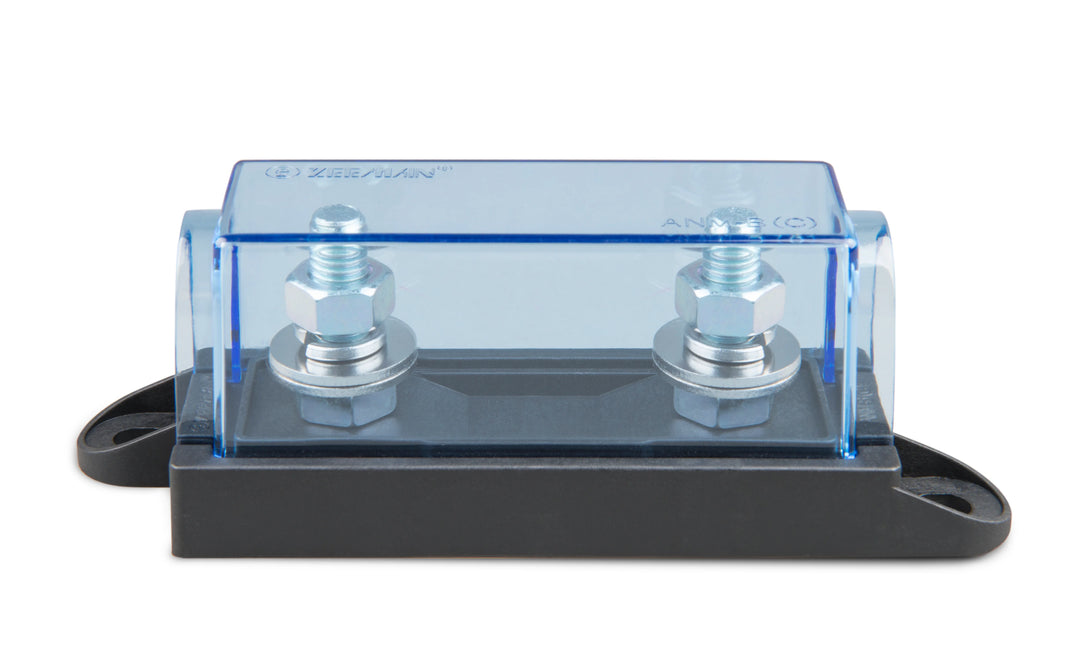

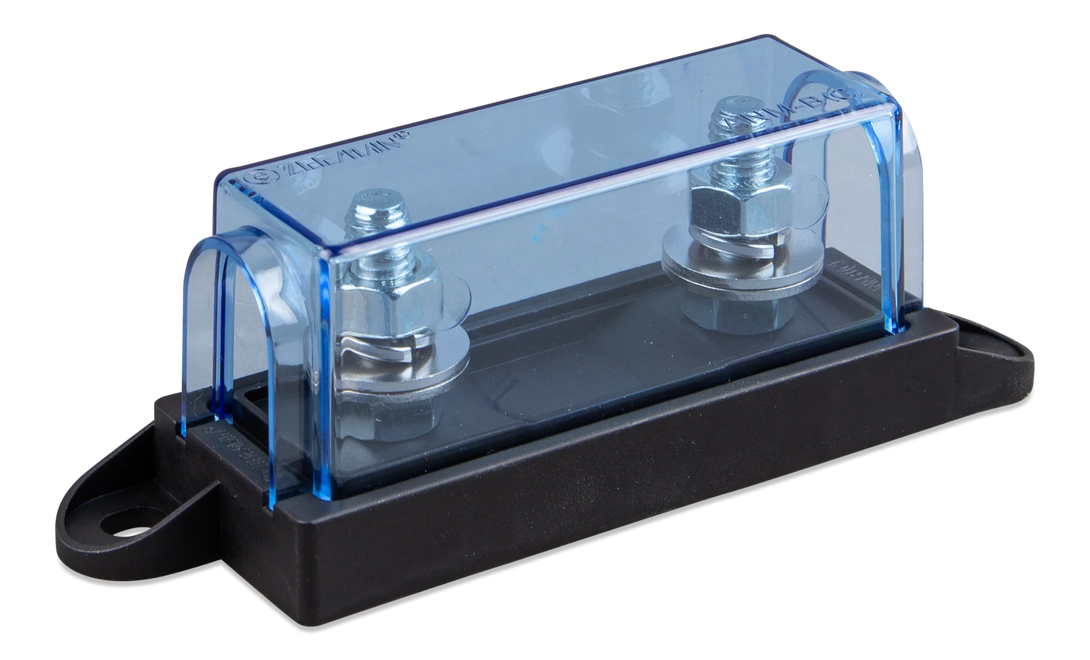

The Victron fuse holder for MEGA-fuse is a robust single fuse mounting solution engineered to securely house a MEGA fuse in your DC distribution system. It enables a clean and safe installation between batteries or load circuits, providing a reliable interface for high current protection.

Dimensions: 126 mm x 43.4 mm x 37 mm, with key zones such as 94 mm between mounting features and 50.8 mm centre-to-centre bolt spacing.

This compact yet rugged design makes it ideal for use in marine, RV, solar, off-grid and industrial systems.

.
Product Specifications

Mechanical Specifications

  • Total Length (including mounting tabs): 108 mm
  • Main Body Length: 94 mm
  • Total Width: 37 mm
  • Mounting Hole Diameter: 8 mm
  • Fuse Type Compatibility: Standard MEGA-fuses (Bolt-down)

Electrical Compatibility

  • Supported Current Range: Designed for use with MEGA-fuses from 40A up to 500A.
  • Voltage Range: Compatible with DC systems rated for 32V, 58V, and 80V.
  • Application: Ideal for primary DC protection in marine, automotive, and off-grid solar systems, particularly for large battery banks and high-wattage inverters.

Installation & Design

  • Secure Connection: Uses a bolt-down design to provide a high-pressure, low-resistance electrical connection suitable for heavy-duty cables.
  • Mounting: Features two external mounting tabs for secure attachment to a flat surface.
  • Protective Housing: Includes a robust cover to protect the fuse and internal connections from environmental factors and accidental short circuits.

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £4.99 for small packages (Under 0.8kg)
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £9.99 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Energy Fuse holder for MEGA-fuse - Data Sheet
