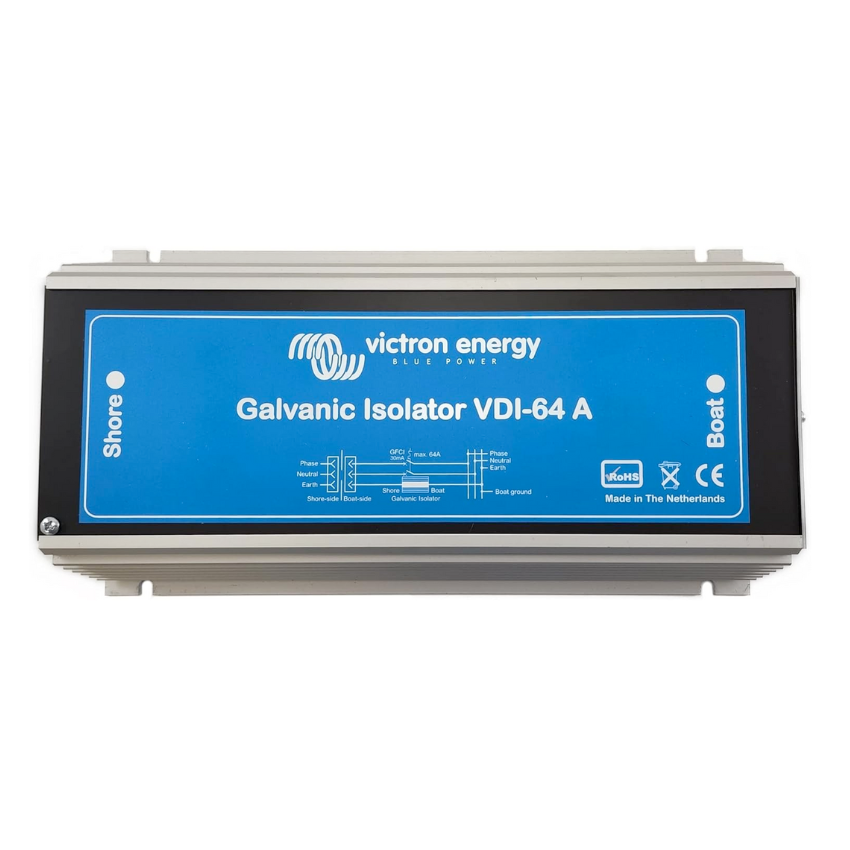

Galvanic Isolator VDI-64 A

The Victron Galvanic Isolator VDI-64 A is designed to prevent galvanic corrosion in marine environments. With a 64A capacity and IP67 waterproof rating, it ensures reliable performance and protection for your vessel's electrical systems.

64A Current Capacity: Suitable for vessels with higher power requirements. IP67 Waterproof Rating: Fully protected against dust and immersion in water up to 1 meter deep. Compact Design: Easy to install in confined spaces. Durable Construction: Built to withstand harsh marine environments. Prevents Galvanic Corrosion: Protects your vessel's electrical systems from stray currents. Dimensions: 300 x 163 x 63mm Weight: 3.4kg
£364.80 £291.84 SAVE £72.96
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: GDI000064000
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Galvanic Isolator VDI-64 A is a high-quality device engineered to protect your boat's electrical system from galvanic corrosion. With a 64A current capacity, it is suitable for vessels with higher power demands. The isolator is IP67 rated, meaning it is fully protected against dust and can withstand immersion in water up to 1 meter deep, making it ideal for marine environments.

Its compact design allows for easy installation in confined spaces, ensuring that your vessel's electrical systems remain safe and corrosion-free. The VDI-64 A is part of Victron Energy's range of galvanic isolators, known for their durability and effectiveness in preventing corrosion caused by stray currents in the water.

Product Specifications

Electrical Specifications

  • Maximum Current: 64 A
  • Peak Current (20 ms): 6000 A
  • Connection Type: M6 Studs
  • Internal Construction: Waterproof (potted)

Mechanical & Enclosure

  • Heat Sink Material: Anodized aluminium
  • Protection Category: IP 67 (Waterproof)
  • Weight: 3.2 kg
  • Dimensions (H x W x D): 63 x 164 x 335 mm

Installation & Ventilation

  • Mounting Orientation: The unit must be mounted vertically (with its length vertical) to facilitate maximum cooling through natural convection.
  • Clearance: Maintain a minimum clear space of 10 cm around the product for adequate ventilation.
  • Safety Warning: For safety, the product should be installed in a heat-resistant environment. Avoid placing chemicals, synthetic components, curtains, or other textiles in the immediate vicinity.
  • Operating Temperature: Under normal circumstances, the temperature increase of the heat sink does not exceed 20°C. However, the unit may become hot when conducting a fault ground current.

Safety & Wiring Requirements

  • Correct Wiring: The galvanic isolator must be wired into the green (safety) grounding conducting connection ahead of all other grounding connections to the vessel. This prevents any ground connections on the vessel from bypassing the isolator and making it ineffective.
  • Regulatory Compliance: All connections and safety features must be implemented according to locally applicable regulations.
  • Cabling: Ensure the use of electric cables of the appropriate size for the 64A current rating.
