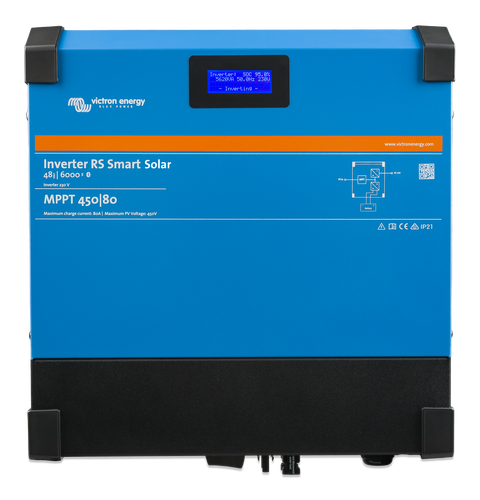

Victron Inverter RS 48/6000 + Smart Solar – 48V 6000VA + 450/80 MPPT

Inverter Specifications

• DC Input Voltage Range: 38 – 62 V
• Output Voltage: 230 VAC ± 2%
• Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
• Continuous Output Power at 25°C: 6000 VA / 5300 W
• Continuous Output Power at 40°C: 4500 W
• Continuous Output Power at 65°C: 3000 W
• Peak Power: 9000 W (for 3 seconds)
• Maximum Efficiency: 96.5% (at 1 kW load) / 94% (at 5 kW load)
• Zero Load Power: 20 W
• Short Circuit Output Current: 45 A

Solar Charger (MPPT) Specifications

• Maximum DC PV Voltage: 450 V
• PV Start-up Voltage: 120 V
• PV Operating Voltage Range: 80 – 450 V
• Number of MPPT Trackers: 2
• Max. PV Input Current: 18 A per tracker
• Max. PV Short Circuit Current: 20 A per tracker
• Max. DC Output Charge Power: 4000 W (Total combined)
• Max. Charge Current: 100 A
• Charge Voltage 'Absorption': 57.6 V (Adjustable)
• Charge Voltage 'Float': 55.2 V (Adjustable)

Features & Connectivity

• Integrated Display: 32-character backlit LCD for real-time monitoring and setup.
• Bluetooth Smart Built-in: Allows for wireless monitoring and configuration via the VictronConnect app.
• VE.Can Port: For parallel synchronization with other RS units (up to 12 units) and connection to GX devices.
• VE.Direct Port: For connection to a GX device, GlobalLink 520, or computer.
• Programmable Relay: Can be configured for general alarms, DC under-voltage, or generator start/stop functions.
• Temperature Sensor: Included for temperature-compensated charging.
• Parallel Operation: Supported (up to 12 units) via VE.Can.
• Three-Phase Operation: Supported (up to 12 units total, 4 per phase).

Mechanical Specifications

• Dimensions (h x w x d): 425 x 440 x 125 mm
• Weight: 11 kg
• Protection Category: IP21
• Battery Connection: M8 bolts
• PV Connection: Screw terminals (up to 16 mm²)
• AC Connection: Screw terminals (up to 16 mm²)
• Enclosure Material & Colour: Steel, blue RAL 5012

Environmental & Standards

• Operating Temperature Range: -40 to +65 °C (fan-assisted cooling)
• Humidity: Max 95% (non-condensing)
• Maximum Altitude: 2000 m
• Safety Standards: EN-IEC 62109-1, EN-IEC 62109-2
• EMC Standards: EN 61000-6-3, EN 61000-6-2, EN 61000-6-1
• Electronic Protection: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, input voltage ripple too high.
