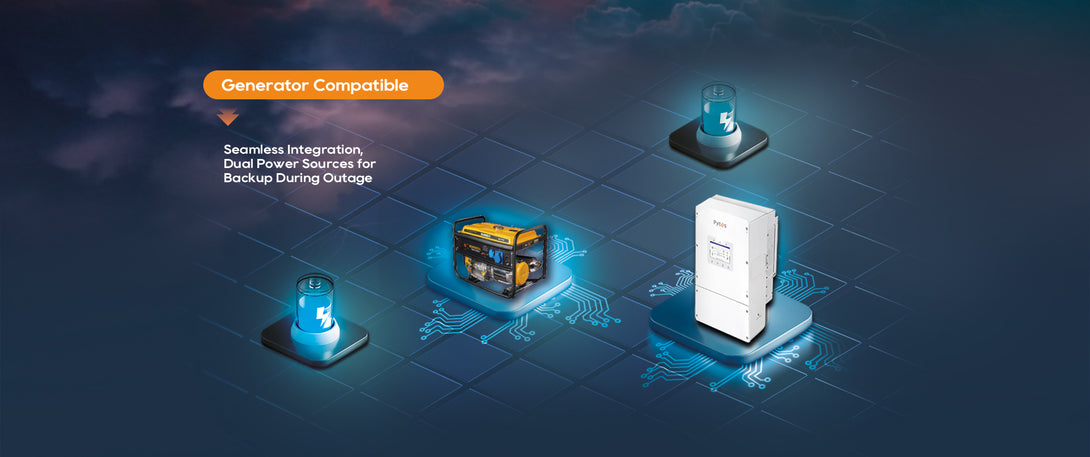

Diagram of a power system with generators and backup equipment on a grid background.

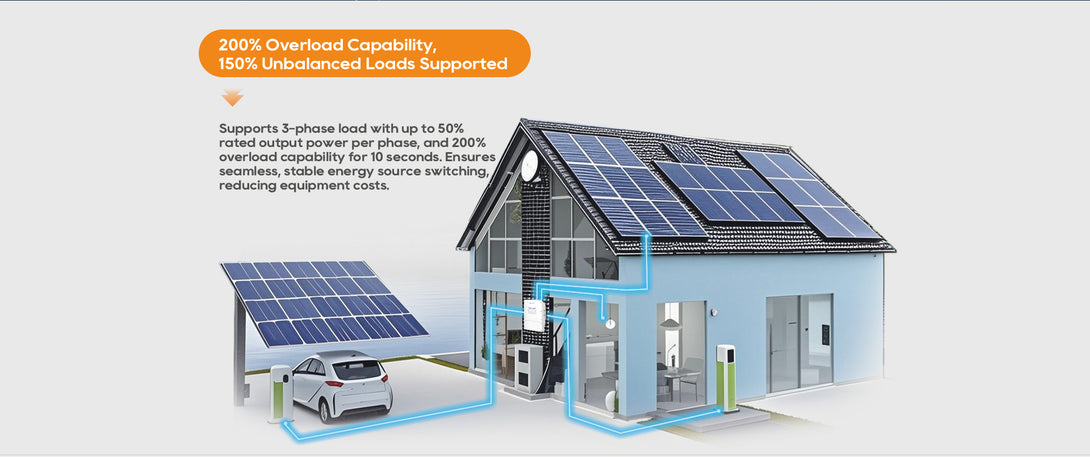

Diagram of a house with solar panels on the roof and ground, highlighting overload capability and unbalanced loads support.

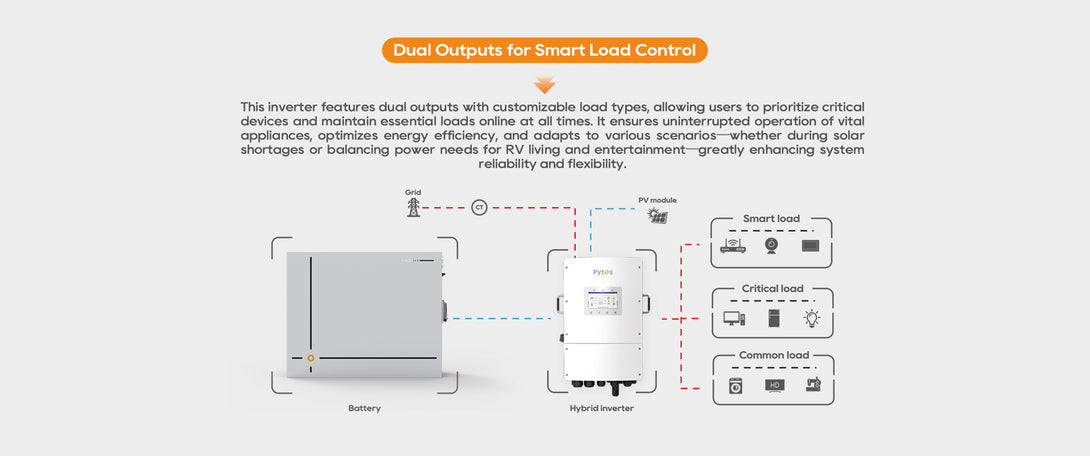

Diagram of a hybrid inverter with dual outputs for smart load control on a white background.
Row of small buildings or cabins with a sunset sky in the background, featuring text about parallel scalable power expansion.
Screen displaying multiple working modes of a power system with icons and text on a dark blue background.
Fast Delivery
Expert Support

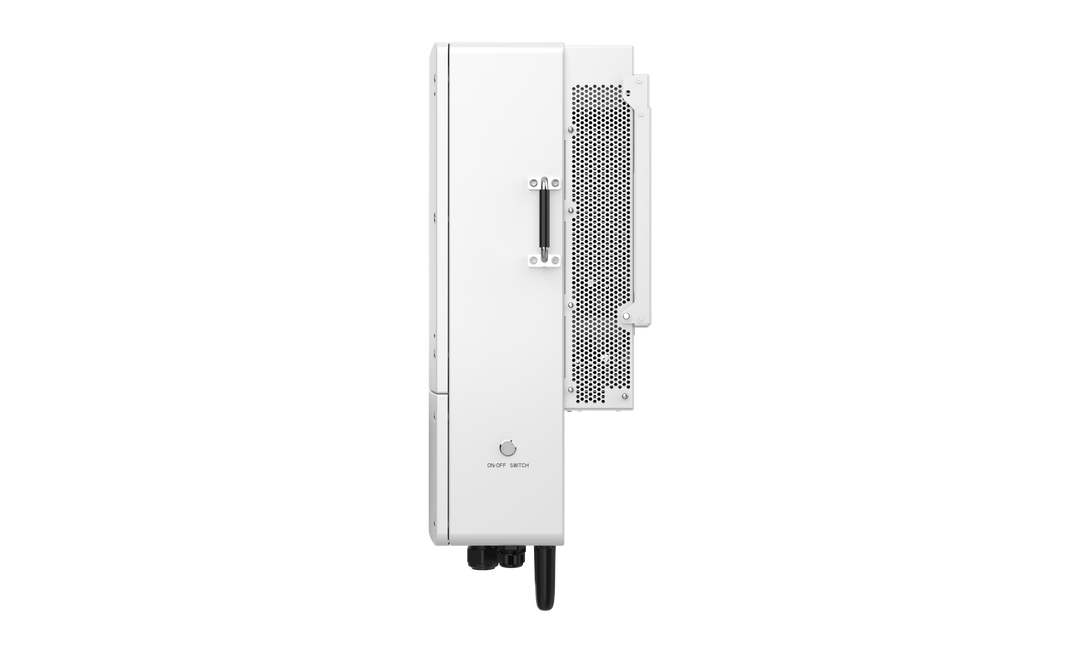

Pytes JS Series Hybrid Inverter (Solis Compatible)

The Pytes JS Series Hybrid Inverter is a powerful 3-phase solar inverter designed for flexible and resilient energy storage systems. Available in 10kW, 12kW, and 15kW models, it supports both on-grid and off-grid operations with seamless backup switching in under 10ms. Featuring up to 200% overload capacity and smart load management, it is ideal for residential homes with mixed load priorities, small businesses, or microgrids.

Dual AC Backup Ports: Supports customized backup loads for both critical and common usage scenarios. Generator Compatible: Supports dual power sources (PV + Generator) to deliver reliable backup during grid outages. 200% Overload Capability: Delivers double the rated power for 10 seconds, ensuring stable performance during peak load startup (e.g., pumps or compressors). 3-Phase Unbalanced Load Support: Allows up to 50% rated power per phase, enabling flexible power distribution across different phases. AC Coupling Compatibility: Can be retrofitted to existing PV systems using AC coupling to maximize legacy investments while upgrading to a hybrid system. Scalable Power: Up to 90kW can be achieved by paralleling multiple inverters to form a microgrid—perfect for villas, farms, or small factories. Harsh Environment Durability: IP66 rated weatherproof design with a wide operating temperature range of -40°C to +60°C. Smart Monitoring & Control: Equipped with a 7.0" LCD display and Bluetooth App. Supports CAN, RS485, and Ethernet communication with optional Wi-Fi, Cellular, or LAN for remote management.
£3,052.80
or pay interest-free installments
Klarna
PayPal

Wattage: 10kW

10kW
12kW
15kW
Add to Wishlist
SKU: JS3PL10K - Pytes Hybrid Inverter
AVAILABLE IN 7-10 DAYS
Product Details

The Pytes JS Series Hybrid Inverter is a powerful 3-phase solar inverter designed for flexible and resilient energy storage systems. Available in 10kW, 12kW, and 15kW models, it supports both on-grid and off-grid operations with seamless backup switching in under 10ms. Featuring up to 200% overload capacity and smart load management, it’s ideal for households, small businesses, or microgrids..

Specifications

JSPL10K

Max Useable PV input: 16kW
Max. charge / discharge current: 220A

JSPL12K

Max Useable PV input: 19.2kW
Max. charge / discharge current: 250A

JSPL15K

Max Useable PV input: 24kW
Max. charge / discharge current: 290A

Features

Display: 7.0"LCD Display & Bluetooth + APP
Communication: CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN

Product Specifications

System Specifications by ModelInput DC (PV Side)

  • Maximum Usable PV Input Power:
    JS3PL10K (10kW):     16 kW
    JS3PL12K (12kW): 19.2 kW
    JS3PL15K (15kW):     24 kW
  • Maximum Input Voltage: 1000 V (all models)
  • Rated Voltage: 550 V (all models)
  • Start-up Voltage: 160 V (all models)
  • MPPT Voltage Range: 200 - 850 V (all models)
  • Maximum Input Current:
    JS3PL10K (10kW):     20A / 40A
    JS3PL12K (12kW):     40A / 40A
    JS3PL15K (15kW): 40A / 40A
  • Maximum Short Circuit Current:
    JS3PL10K (10kW):     30A / 50A
    JS3PL12K (12kW): 50A / 50A
    JS3PL15K (15kW): 50A / 50A
  • MPPT / Maximum Input Strings:
    JS3PL10K (10kW):     2 / 3
    JS3PL12K (12kW): 2 / 4
    JS3PL15K (15kW): 2 / 4

Battery Parameters

  • Battery Type: Li-ion / Lead-acid (all models)
  • Battery Voltage Range: 40 - 60 V (all models)
  • Maximum Charge / Discharge Current:
    JS3PL10K (10kW):     220A
    JS3PL12K (12kW): 250A
    JS3PL15K (15kW): 290A
  • Communication Interface: CAN / RS485 (all models)

Output AC (Grid Side)

  • Rated Output Power:
    JS3PL10K (10kW):     10 kW
    JS3PL12K (12kW): 12 kW
    JS3PL15K (15kW): 15 kW
  • Maximum Apparent Output Power:
    JS3PL10K (10kW):     10 kVA
    JS3PL12K (12kW): 12 kVA
    JS3PL15K (15kW): 15 kVA
  • Operation Phase: 3/N/PE (all models)
  • Rated Grid Voltage: 380 V / 400 V (all models)
  • Rated Grid Frequency: 50 Hz / 60 Hz (all models)
  • Rated Grid Output Current:
    JS3PL10K (10kW):     15.2A / 14.4A
    JS3PL12K (12kW): 18.2A / 17.3A
    JS3PL15K (15kW): 22.8A / 21.7A
  • Maximum Output Current:
    JS3PL10K (10kW):     15.2A / 14.4A
    JS3PL12K (12kW): 18.2A / 17.3A
    JS3PL15K (15kW): 22.8A / 21.7A
  • Power Factor: > 0.99 (0.8 leading to 0.8 lagging) (all models)
  • Total Harmonic Distortion (THDi): < 3% (all models)

Input AC (Grid Side)

  • Input Voltage Range: 323 - 460 V (all models)
  • Maximum Input Current:
    JS3PL10K (10kW):     22.8A / 21.7A
    JS3PL12K (12kW): 27.3A / 26.0A
    JS3PL15K (15kW): 34.2A / 32.5A
  • Frequency Range: 45 - 55 Hz / 55 - 65 Hz (all models)

Input Generator

  • Maximum Input Power:
    JS3PL10K (10kW):     10 kW
    JS3PL12K (12kW): 12 kW
    JS3PL15K (15kW): 15 kW
  • Maximum Input Current:
    JS3PL10K (10kW):     15.2A
    JS3PL12K (12kW): 18.2A
    JS3PL15K (15kW): 22.8A
  • Rated Input Voltage: 3/N/PE, 380 V / 400 V (all models)
  • Rated Input Frequency: 50 Hz / 60 Hz (all models)

Output AC (Back-up)

  • Rated Output Power:
    JS3PL10K (10kW):     10 kW
    JS3PL12K (12kW): 12 kW
    JS3PL15K (15kW): 15 kW
  • Maximum Apparent Output Power: 2 times of rated power for 10 seconds (all models)
  • Back-up Switch Time: < 10 ms (all models)
  • Rated Output Voltage: 3/N/PE, 380 V / 400 V (all models)
  • Rated Frequency: 50 Hz / 60 Hz (all models)
  • Rated Output Current:
    JS3PL10K (10kW):     15.2A / 14.4A
    JS3PL12K (12kW): 18.2A / 17.3A
    JS3PL15K (15kW): 22.8A / 21.7A
  • Maximum Continuous Output Current:
    JS3PL10K (10kW):     15.2 A
    JS3PL12K (12kW): 18.2 A
    JS3PL15K (15kW):     22.8 A
  • Maximum Continuous AC Passthrough Current: 50 A (all models)
  • Voltage Distortion (Linear Load / THDv): < 3% (all models)

System Efficiencies & Safety

  • Maximum Efficiency: 97.60%
  • EU Efficiency: 97.00%
  • Protections: Anti-islanding, output overcurrent, short circuit, DC reverse-polarity, surge protection

General & Physical Data

  • Dimensions (W × H × D): 430 × 660 × 305 mm
  • Weight: 42 kg
  • Topology: Non-isolated
  • Operating Ambient Temperature: -40°C to +60°C
  • Ingress Protection Rating: IP66
  • Noise Emission (Typical): < 65 dB(A)
  • Cooling Concept: Intelligent fan-cooling
  • Maximum Operating Altitude: 4000 m
