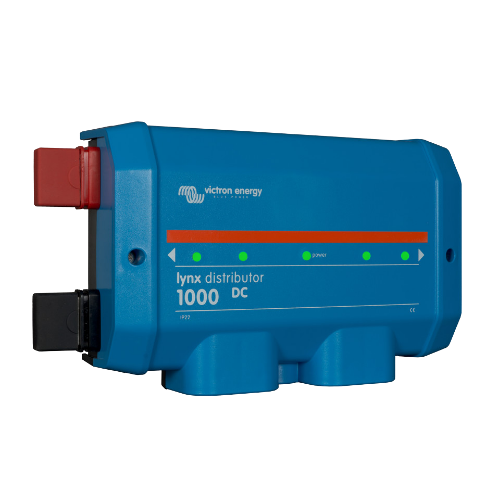

Callidus Trade: A blue Victron Energy Lynx Distributor 1000A with LED indicators and red fuse locations.
Callidus Trade: A blue Victron Energy Lynx Distributor 1000A with LED indicators and red fuse locations.
Callidus Trade: A blue Victron Energy Lynx Distributor 1000A with LED indicators and red fuse locations.
Callidus Trade: A blue Victron Energy Lynx Distributor 1000A with LED indicators and red fuse locations. Inside view.
Callidus Trade: A blue Victron Energy Lynx Distributor 1000A with LED indicators and red fuse locations. Inside view.
Callidus Trade: A blue Victron Energy Lynx Distributor 1000A with LED indicators and red fuse locations. Inside View.
Fast Delivery
Expert Support

Victron Lynx Distributor 1000A Busbar (M8)

The Victron Lynx Distributor 1000A Busbar (M8) is a modular DC distribution hub with eight busing points and fuse-monitoring LEDs, designed for reliable power distribution in marine, off-grid, or mobile systems.

Connect batteries to one distributor. No need for separate bus bars and fuse holders. Keeps your cables tidy and distribution of DC loads easy. Rated to 1000A.
£266.40 £141.50 SAVE £124.90
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: LYN060102000
AVAILABLE IN 7-10 DAYS
Product Details

Victron Energy Lynx Distributor – LYN060102000

A modular DC bus bar, with locations for four DC fuses. It will monitor the status of each fuse, and indicate its condition with a LED on the front. Part of the modular Lynx distribution system.

What's Inside:
The Lynx Distributor has a positive and negative busbar – think of them as the main  and it can connect to 4 circuits or groups. Each circuit has its own protection, it uses mega fuses. The studs for these fuses are M8.

Superpower Strength:
This Lynx Distributor is super strong, rated up to 1000A! That means it's great for systems that need a lot of power, especially when they're using high currents.

Special Feature:
The Lynx Distributor has LEDs that light up so you can see how your system is operating from a distance. If everything is good, a green light shines in the middle. But if a fuse is blown or missing, the lights turn red.

RJ10 fly leads are used to connect the Lynx Distributor up to the Lynx Shunt. The RJ10 cables are supplied with the distributor in the box.

Connection Tips:
Make sure to use MEGA fuses. Also, be careful, some MEGA fuses are only good for 24V systems. If your system is 48V, you need 58 or 64V fuses rated for 48v systems.

Product Specifications

Technical Specifications

Combined for SKUs: LYN060102000

Busbar Connections: M8

Busbar Dimensions: 8mm x 30mm

Busbar Material: Tinned copper

Colour: Blue (RAL 5012)

Current Rating: 1,000 A

Data Connection: 40 cm RJ10 cable (included)

Depth: 80 mm

Fuse Connections: 3/8"

Height: 170 mm

Material: ABS

Max Humidity: 95 %

Power Consumption: Maximum 100mA with all LEDs illuminated (Powered from Lynx Shunt VE.Can or Lynx Smart BMS)

Protection Category: IP22

Reverse Polarity Protection: Yes (he RJ10 cable connection is not protected against reverse polarity)

System Voltages: 12V or 24V or 48V

Voltage Range: [9, 60] V

Weight: 2.2 kg

Width: 290 mm

Source: Victron
