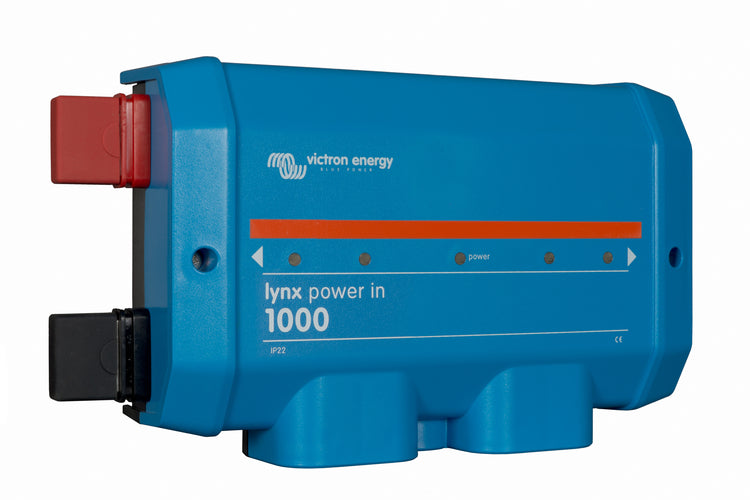

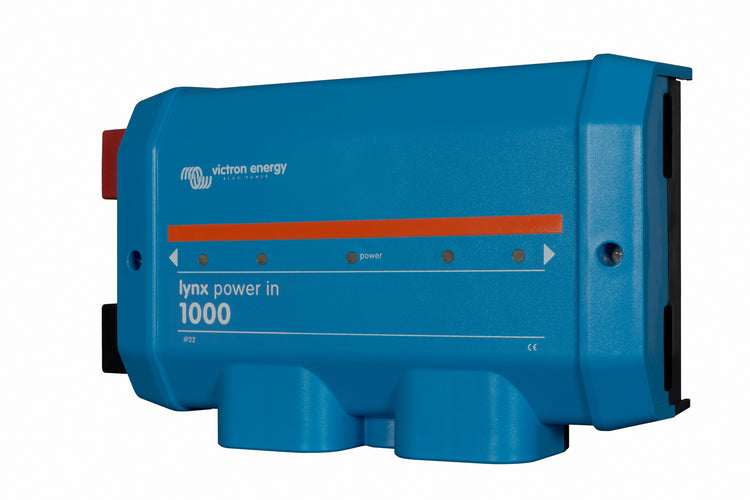

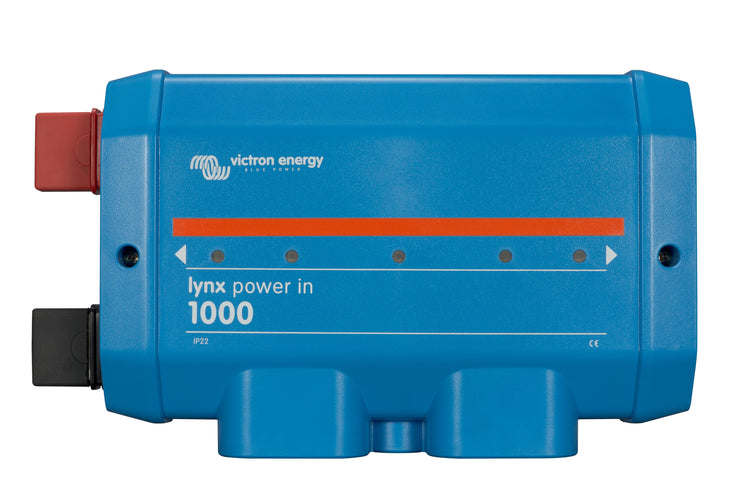

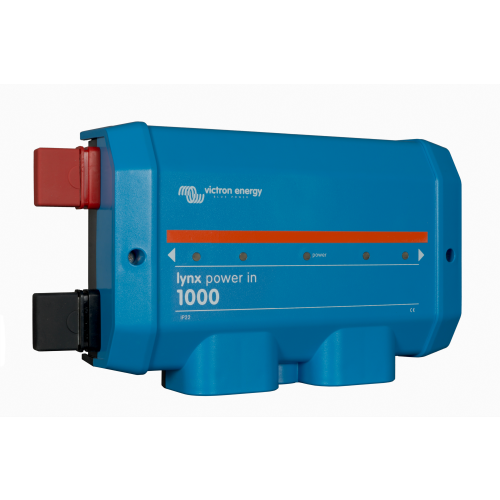

Victron Lynx Power In 1000A Busbar (M8)

The Victron Lynx Power In 1000A Busbar (M8) is a high-capacity DC input module that connects battery banks into the Lynx distribution network, supporting modular and secure power integration.

Modular DC busbar. Connect batteries together. Keeps your cables tidy.
£141.00 £98.00 SAVE £43.00
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: LYN020102000
IN STOCK
Receive between -

People Also Bought:

Frequently Bought Together

Total price:£540.60 £255.00
Product Details

Replaced by the Victron Lynx Power In (M10)

The Victron Lynx Power In 1000A Busbar (M8) is a high-capacity DC input module designed to serve as the main battery interface for a Lynx modular DC distribution system. It integrates both positive and negative busbars in a single enclosure and offers four connection points for batteries, loads or chargers, plus a ground connection.

Capable of continuous operation at 1000 A and operating over a voltage range of 9 V to 60 V DC, it is suited to demanding battery systems. The M8 busbar terminals ensure secure, low-resistance connections with suitably sized battery cables.

As part of the Lynx modular ecosystem, this unit seamlessly integrates with other Lynx distribution components, enabling scalable, robust DC power infrastructure in marine, off-grid, mobile or industrial environments.

Product Specifications

Technical Specifications

Combined for SKUs: LYN020102000

Busbar Connections: M8

Busbar Dimensions: 8mm x 30mm

Busbar Material: Tinned copper

Colour: Blue (RAL 5012)

Current Rating: 1,000 A

Depth: 80 mm

Height: 170 mm

Material: ABS

Max Humidity: 95 %

Protection Category: IP22

Voltage Range: [9, 60] V

Weight: 2.1 kg

Width: 290 mm

Source: Victron
