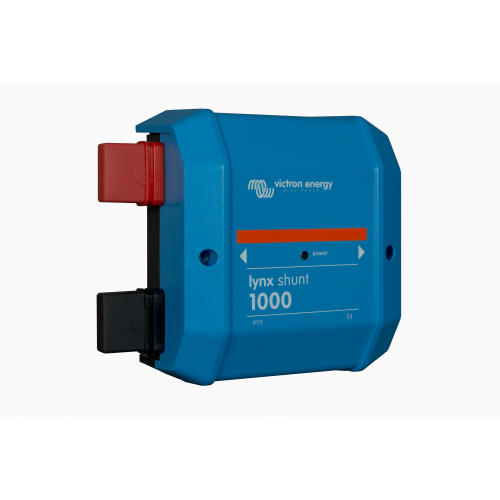

Victron Lynx Shunt Battery Monitor - 1000A VE.CAN (M8)

The Victron Lynx Shunt VE.Can 1000A (M8) is a high-capacity shunt with integrated battery monitoring, fuse holder and VE.Can communication, designed for modular Lynx systems.

1000 A continuous rating – handles high currents for sizeable battery systems without compromise. Integrated battery monitor via VE.Can – gives real-time data on voltage, current, state of charge and historic usage. Main fuse housing with status LEDs – delivers protection and quick visual diagnostics if a fuse is blown or alarmed. Alarm relay and temperature sensor interface – enables external alarms and thermal monitoring of your battery bank. Modular Lynx integration – designed to seamlessly combine with other Lynx modules for a scalable DC power distribution architecture.
£374.00 £278.99 SAVE £95.01
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: LYN040102100
AVAILABLE IN 7-10 DAYS

People Also Bought:

Product Details

The Victron Lynx Shunt VE.Can 1000A (M8) is a sophisticated, modular shunt and busbar unit that is a central part of the Lynx DC distribution architecture. It combines positive and negative busbars with a built-in shunt for accurate battery current measurement, a space for a main system fuse (fuse sold separately) and full integration with Victron’s VE.Can monitoring ecosystem.

With a continuous current rating of 1000 A and compatibility with system voltages of 12 V, 24 V or 48 V, this unit allows you to precisely monitor battery voltage, current, state of charge, time to go, historic usage and more (when connected to a GX device).

LED indicators on the unit show fuse status, system health and alarm conditions. The unit ships with RJ45 terminators for VE.Can connection and includes a temperature sensor and alarm relay interface,

Designed to seamlessly slot into Lynx modular systems, the Lynx Shunt VE.Can brings centralised monitoring and protection to your DC system, making it ideal for marine, off-grid, mobile or industrial energy setups.

Please Note The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately. A 325A/80V fuse is normally stocked CIP140325000, CNN 325A/80V

Product Specifications

Technical Specifications

Combined for SKUs: LYN040102100

Busbar Connections: M8

Busbar Dimensions: 8mm x 30mm

Busbar Material: Tinned copper

Colour: Blue (RAL 5012)

Current Rating: 1,000 A

Depth: 80 mm

Fuse Connections: M8

Fuse Dummy: Not included

Height: 190 mm

Material: ABS

Max Humidity: 95 %

Power Connection Distributor: RJ10 (RJ10 cables ship with each Lynx Distributor)

Power Consumption: 60mA (12V) / 33mA (24V) / 20mA (48V)

Programmable Relay: Potential free alarm contact: 3A at 30VDC or 250VAC

Protection Category: IP22

Relay Connection: Screw terminals

Reverse Polarity Protection: No

System Voltages: 12V or 24V or 48V

Temperature Sensor Connection: Screw terminals

Ve Can: RJ45 (Two RJ45 terminators included)

Voltage Range: [9, 70] V

Weight: 1.4 kg

Width: 180 mm

Source: Victron
