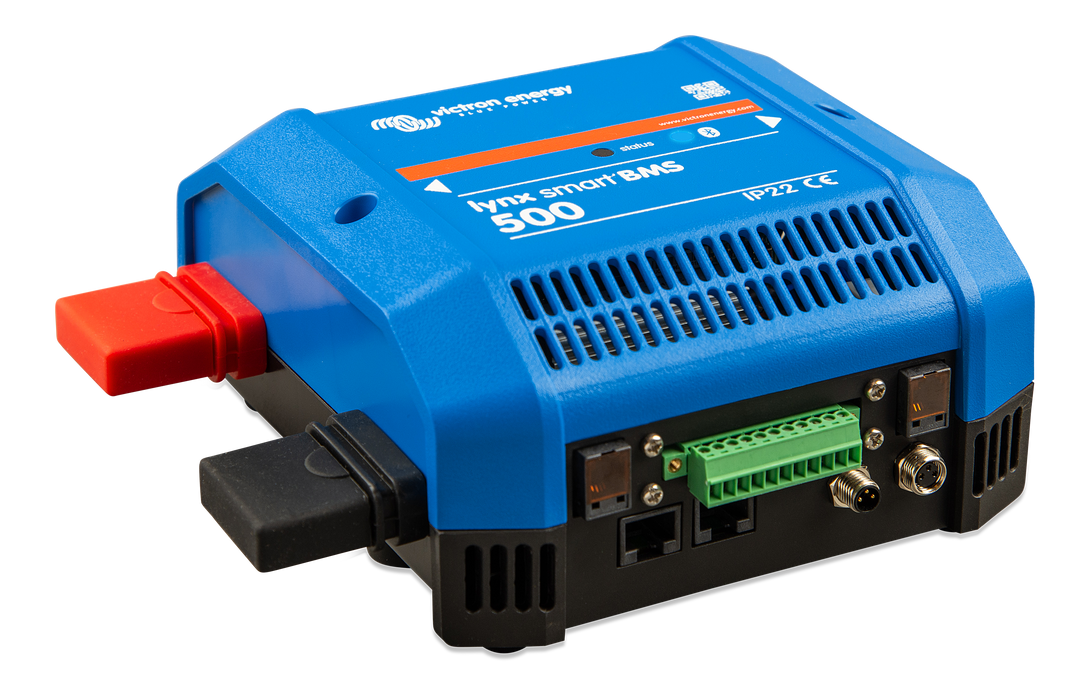

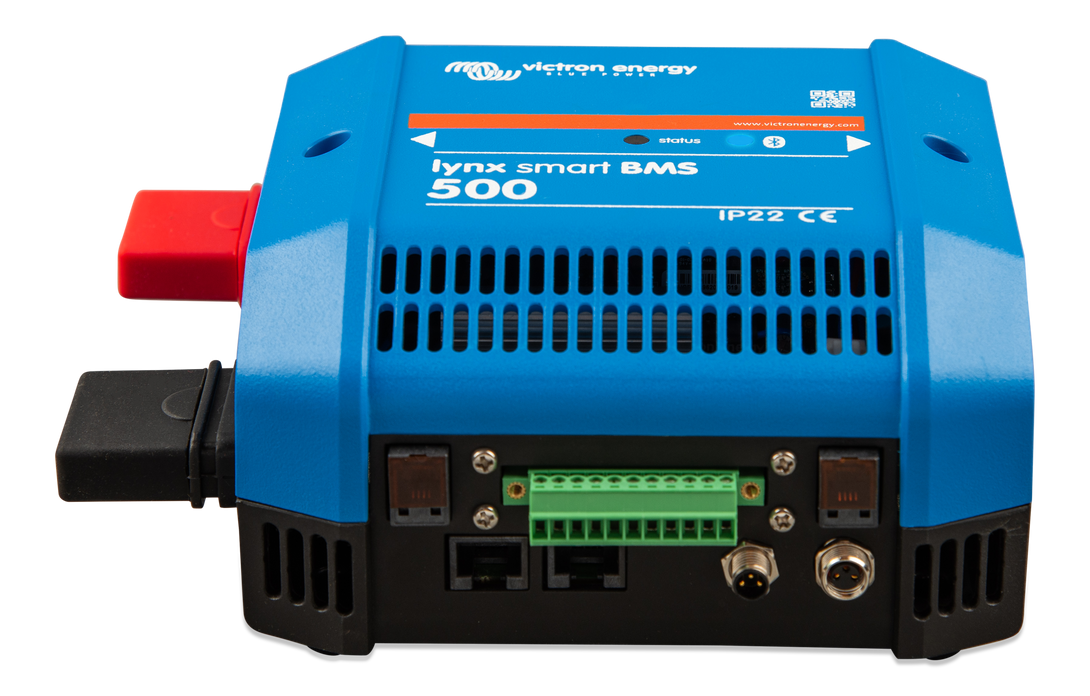

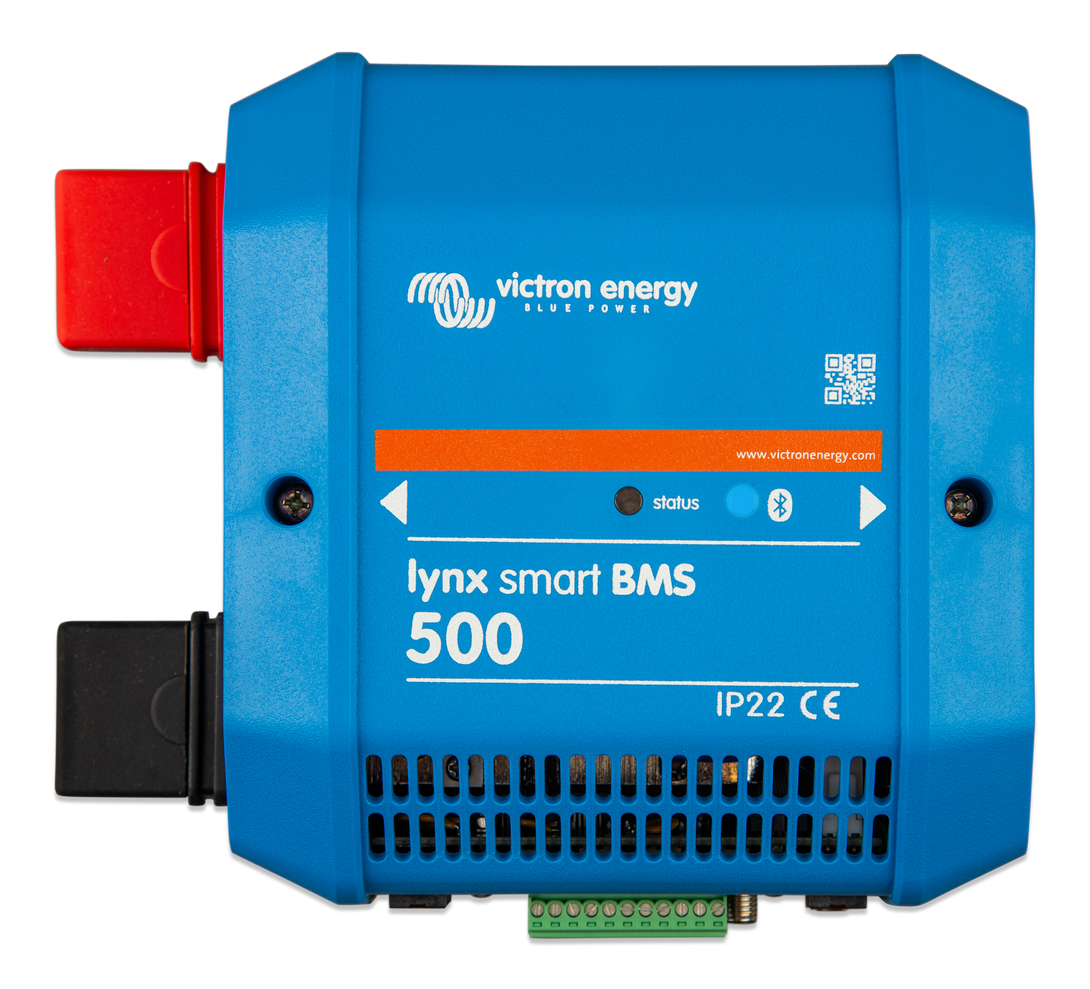

Lynx Smart BMS500 (M8)

Power & Performance

• Main Safety Contactor Continuous Current: 500 A
• Main Safety Contactor Peak Current: 600 A (for 5 minutes)
• Supported System Voltages: 12, 24, or 48 V
• Battery Voltage Range: 9 – 60 VDC
• Maximum Input Voltage: 75 VDC
• Reverse Polarity Protection: No
• Pre-charge Circuit: Integrated circuit prevents high inrush currents when connecting capacitive loads (e.g., inverters).
• Minimum Load Resistance (Pre-charging): 10 Ω for 12 V systems; 20 Ω for 24 V and 48 V systems.

Power Consumption

• OFF Mode: 0.3 mA for all system voltages.
• Standby Mode: Approximately 0.6 W (50 mA at 12 V).
• ON Mode: Approximately 2.6 W (217 mA at 12 V), depending on the state of the relays.

Integrated Features & Monitoring

• Battery Monitor: Provides real-time data including state of charge, voltage, current, and historical data.
• Bluetooth Smart: Built-in for monitoring and setup via the VictronConnect App, featuring Instant Readout for quick diagnostics.
• DVCC Closed Loop Control: Automatically controls compatible Victron inverter/chargers and solar chargers via a connected GX device.
• Lynx Distributor Monitoring: Monitors fuse status for up to 4 connected Lynx Distributor modules.
• Parallel Redundancy: Supports paralleling up to 5 BMS units, each with its own battery bank, to form a single redundant system.

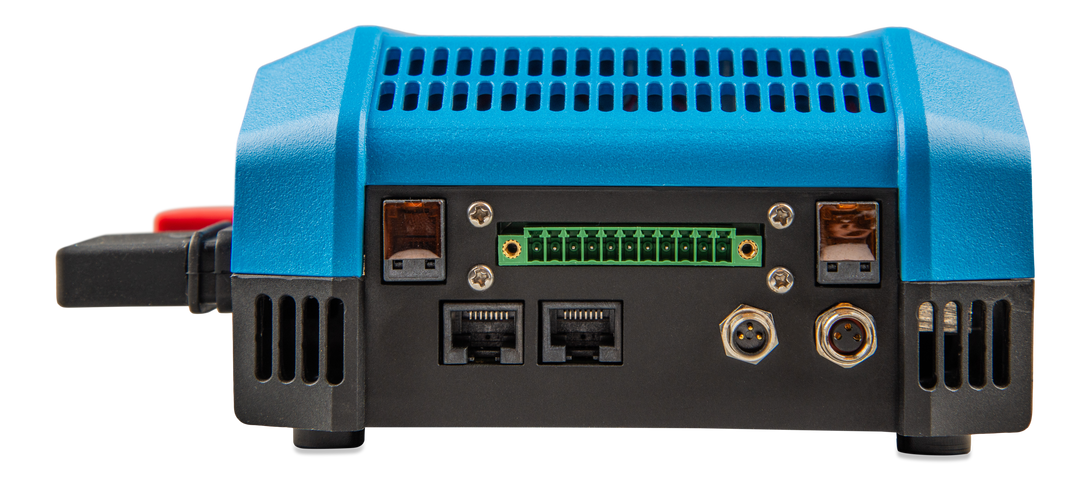

Inputs, Outputs & Connectivity

• AUX Terminal: Provides an onboard auxiliary power supply (1.1 A continuous) to power critical devices like a GX device even after a low-voltage shutdown.
• Allow-to-Charge Port: 0.5 A at 60 VDC (protected by resettable fuse).
• Allow-to-Discharge Port: 0.5 A at 60 VDC (protected by resettable fuse).
• Programmable Relay (SPDT): 2 A at 60 VDC; can be used for alarms or as an Alternator ATC contact.
• VE.Can & NMEA 2000: Integrated communication via standard RJ45 cable for GX devices and marine MFD integration.
• Battery BTV Cables: Male and female circular 3-pole connector with M8 screw ring (supports up to 20 batteries).

Physical Specifications

• Busbar Connection: M8 (Previous version specification)
• Busbar Material: Tinned copper (8 x 30 mm)
• Enclosure Material: ABS
• Dimensions (h x w x d): 190 x 180 x 80 mm
• Unit Weight: 1.9 kg
• Protection Category: IP22

Environmental Data

• Operating Temperature Range: -40 °C to +60 °C
• Storage Temperature Range: -40 °C to +60 °C
• Humidity: Max. 95 % (non-condensing)

Standards & Compliance

• Safety: EN-IEC 63000:2018
• EMC: EN-IEC 61000-6-3:2007/A1:2011/AC:2012
• Quality Management: NEN-EN-ISO 9001:2015
