This is a powerful solar panel kit for boats or small off-grid needs and is good for general needs. This solar kit is ideal for keeping your starter or Leisure battery charged. The panel measurements are 1485mm by 668 mm, however, you will need to see the image attached for sizing for when installing these with corner and mid mounts.
The PWM charge controller has a Liquid Crystal Display for ease of programming and also has two useful USB ports for charging phones or tablets. The PWM offers a Day/Night timing option this allows for a On-time after Dusk
Hankook Leisure Batteries are a suitable and reliable option for caravans, motorhomes, RV's, boats and other leisure applications. They benefit from X-Frame Grid Protection Technology which provides a longer cycle life and helps to improve performance. Hankook Batteries are completely maintenance free and also have deep cycle capability. They are very heavy duty and are very vibration resistant. 330mm L x 172mm W x 242mm H inc terminals.
This kit is fairly easy to install if you have basic DIY skills. We are always on hand to help if you need some guidance. There are a few handy videos for installation for you to watch if you need a few handy tips for installation.
The link below is one of our customer who decided to do this video on how to install their solar kit on a caravan
A low-cost alternative to an MPPT, these are great for keeping batteries charged for long periods of time where batteries have very little use on boats, caravans and motorhomes. They have a useful two-port USB output for charging phone and tablets
Liquid crystal display, For status monitoring and set-up
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.
Day/night timing of the load output This option allows for a pre-set ON-time after dusk. Programmable battery charge algorithm Pre-programmed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only) Two 5 Volt USB outputs Maximum current (both outputs combined): 2A
Victron 175watt solar panels
Low voltage-temperature coefficient enhances high-temperature operation.
Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance.
5-Year Limited Warranty on materials and workmanship.
Sealed, waterproof, multi-functional junction box gives a high level of safety.
High-performance bypass diodes minimize the power drop caused by shade.
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.

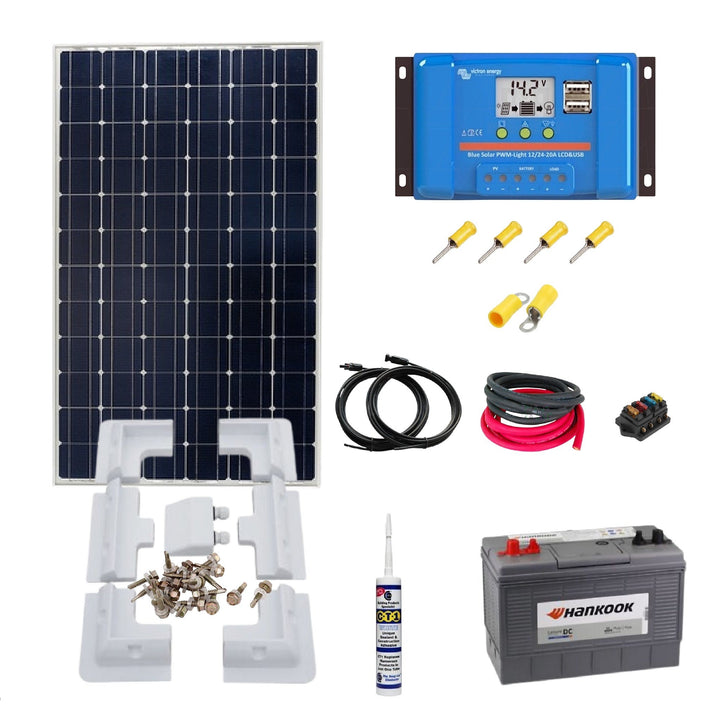

Whats in the Box
- Victron 175 Watt solar panel
- Victron solar charge controller with two USB ports for charging phones
- Roof fixings including cable gland
- 2x5 meter cable with male and female MC4 connects.
- 100ah (c20) Leisure Battery
- CT1 Sealant
- 1 Meter Red 6mm DC Cable
- 1 Meter Black 6mm DC Cable
- 4 Way Fuse Holder and Fuses
Please feel free to call us on 01626 905454 where we will be able to offer you some assistance.
