Victron Marine Kit. MultiPlus 800VA Inverter/charger,115 to 350 Watts of Solar Power, Mounting & Cable Gland. MA32
This product is eligible for the "AWESOME AUTUMN" discount.
That means you may save an extra £168.19 off this product. The discount will be applied automatically at checkout if applicable!
This is the right kit for you if you have a boat and you want to add a complete Solar kit with 230 volt power and battery charger that just works on-grid...
Nexy Day Delivery Available! Ends in:
(Order before midday on a business day)
Found this product cheaper elsewhere?
If you have found this product cheaper elsewhere use the live chat or call our team on 01626905454 and if our team can verify the price difference we will match it.
This is the right kit for you if you have a boat and you want to add a complete Solar kit with 230 volt power and battery charger that just works on-grid or off. This kit has everything you need for a none smart alternator. This kit contains all the item seen in the pictures
This kit is the smallest of the Victron multiplus and is great to power things light fridges, laptops, light and any other low draw power items.
if you require more power please look at our kits
Marine Kit 33
Marine Kit 34

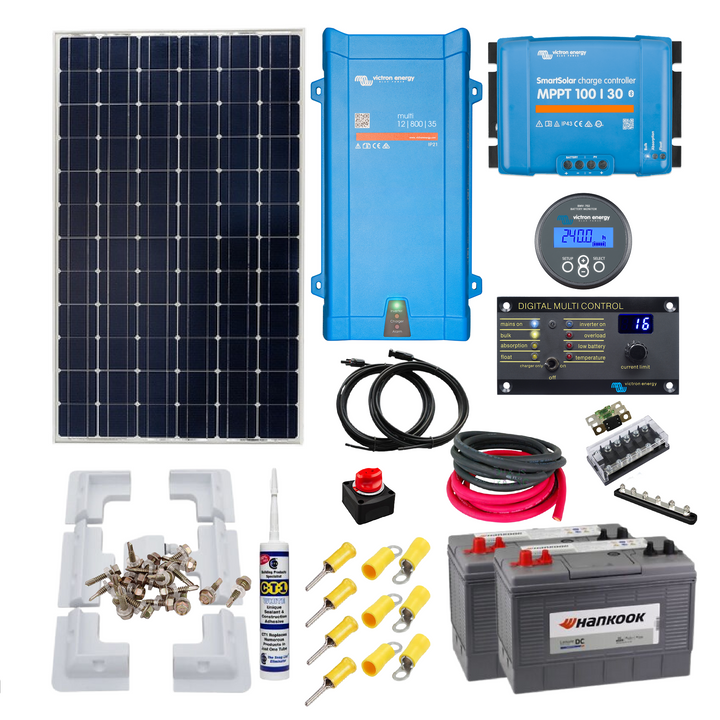

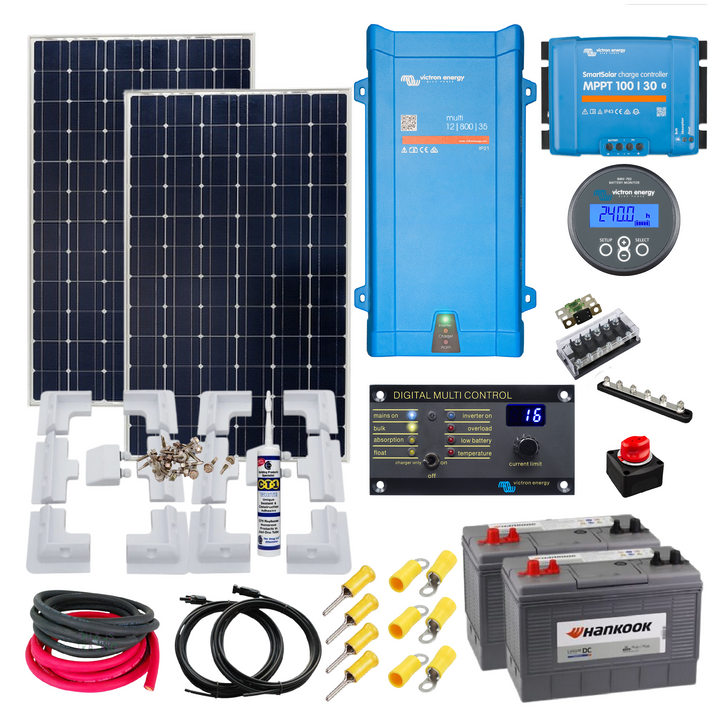

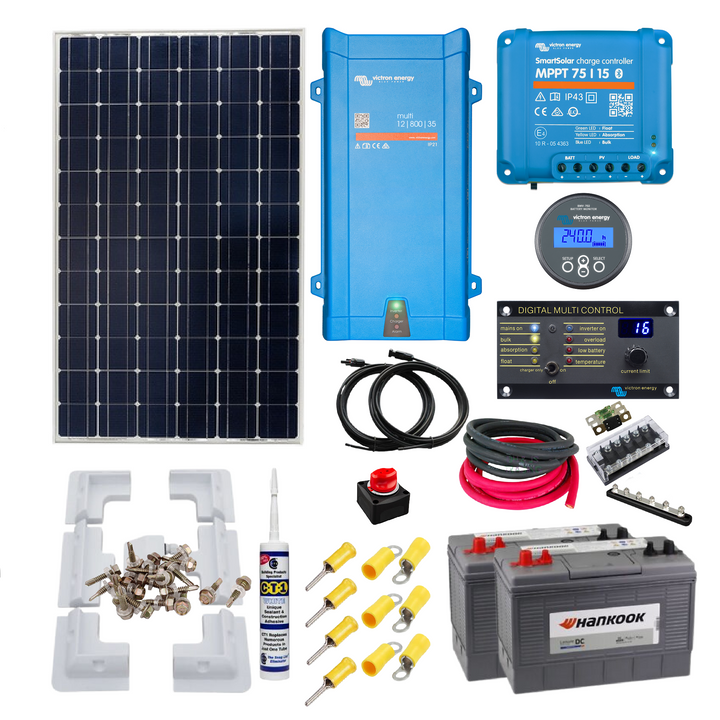

Whats in the Box
- Victron Multiplus 12/800/35 230V (PMP121800000)
- Battery Monitor BMV-702 (BAM010702000)
- 2 x 100ah (c20) Leisure battery
- Digital Multi Control 200/200A (REC020005010)
- Victron SmartSolar MPPT 75/15 (SCC075015060R) OR Victron SmartSolar MPPT 100/30 when choosing 2 x 175W panels or 305W panel
- Victron 115W Mono solar panel (SPM041151200) OR Victron 175W Mono solar panel (SPM041751200) OR Victron 305W Mono solar panel (SPM043052002) OR 2 x Victron 175W Mono solar panel (SPM041751200)
- Fuse holder 6 way for MEGA fuse (CIP50060000) with 2 x 150A MEGA fuse (CIP136150010) and 1 x 40A MEGA fuse (CIP136060010)
- 1 x Battery switch (VBS127010010)
- 2 metres 25mm2 cable black
- 2 metres 25mm2 cable red
- Battery link cable - 350mm of 25mm2 cable red, and 350mm of 25mm2 cable black with a selection of lugs
- Pair of 5 metre solar extensions with MC4's (5QM40)
- 1 metre 6mm2 DC cable red (for battery to controller)
- 1 metre 6mm2 DC cable black (for battery to controller)
- Pins and ferrels
- 1 x 6 piece mounting kit with gland ( x 2 when choosing 2 panel option)
- CT1 sealant
- 12 x fixing screws ( 12 x 2 when choosing 2 panel option)
- Instructions

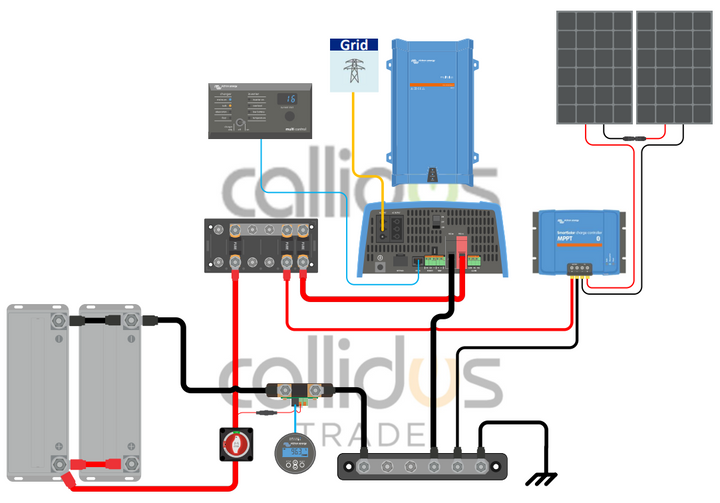

- Wiring diagram
UD0523
Size |
115 Watt Monocrystalline, 175 Watt Monocrystalline, 305 Watt Monocrystalline, 2 x 175W Monocrystalline |
---|
