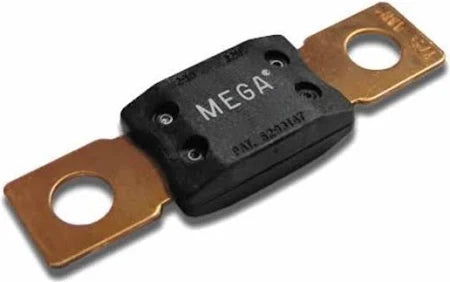

MEGA-fuse 250A/80V (Single Piece)

£8.16
pay interest-free installments
Klarna
PayPal
IN STOCK

The Victron Energy MEGA-fuse 250A/80V provides reliable overcurrent protection for 12V, 24V, and 48V DC systems, ensuring safety and durability.

Rated for 250A, suitable for high-power circuits Operates effectively in 12V, 24V, and 48V DC systems Ceramic body with metal end caps Dimensions: 9 x 19 x 67mm
Add to Wishlist
Arrives -

UK-wide delivery Free tracked delivery on orders over £250.

Next-day delivery UK-wide option at checkout. Delivery times apply from dispatch.

SKU: CIP138250020
Product Details

The Victron Energy MEGA-fuse 250A/80V is a high-performance fuse designed to provide reliable overcurrent protection for 12V, 24V, and 48V DC systems. With a 250-amp rating and an 80-volt maximum operating voltage, this fuse is ideal for safeguarding circuits in applications such as off-grid power systems, marine installations, and mobile setups.

Key Features:

  • High Current Capacity: Rated for 250A, suitable for high-power circuits.
  • Wide Voltage Compatibility: Operates effectively in 12V, 24V, and 48V DC systems.
  • Durable Construction: Built to withstand demanding environments, ensuring long-term reliability.

The Victron Energy MEGA-fuse 250A/80V is an essential component for ensuring the safety and reliability of high-current circuits in various electrical systems.

.
Product Specifications

Performance & Electrical Specifications

  • Current Rating: 250 A
  • Voltage Rating: 80 V
  • Approximate Voltage Drop: 110 mV
  • Cold Resistance: 0.208 mΩ
  • Fuse Type: MEGA fuse (standard)

Mechanical Specifications

  • Mounting Type: Bolt-on
  • Mounting Hole Diameter: 8.7 mm (Designed for M8 bolts)
  • Overall Length: 68.8 mm
  • Total Width: 19 mm
  • Centre-to-Centre Hole Distance: 50.8 mm
  • Internal Body Width: 29.2 mm
  • Connection Tab Width: 16.2 mm

System Integration & Safety

  • Installation: Must be used with a compatible MEGA fuse holder to ensure safety and proper electrical contact.
  • Application: Recommended for primary circuit protection in marine, automotive, and off-grid solar systems, specifically optimized for higher voltage 48V battery banks.
  • Construction: High-durability design to withstand the vibration and thermal demands of professional power installations.
