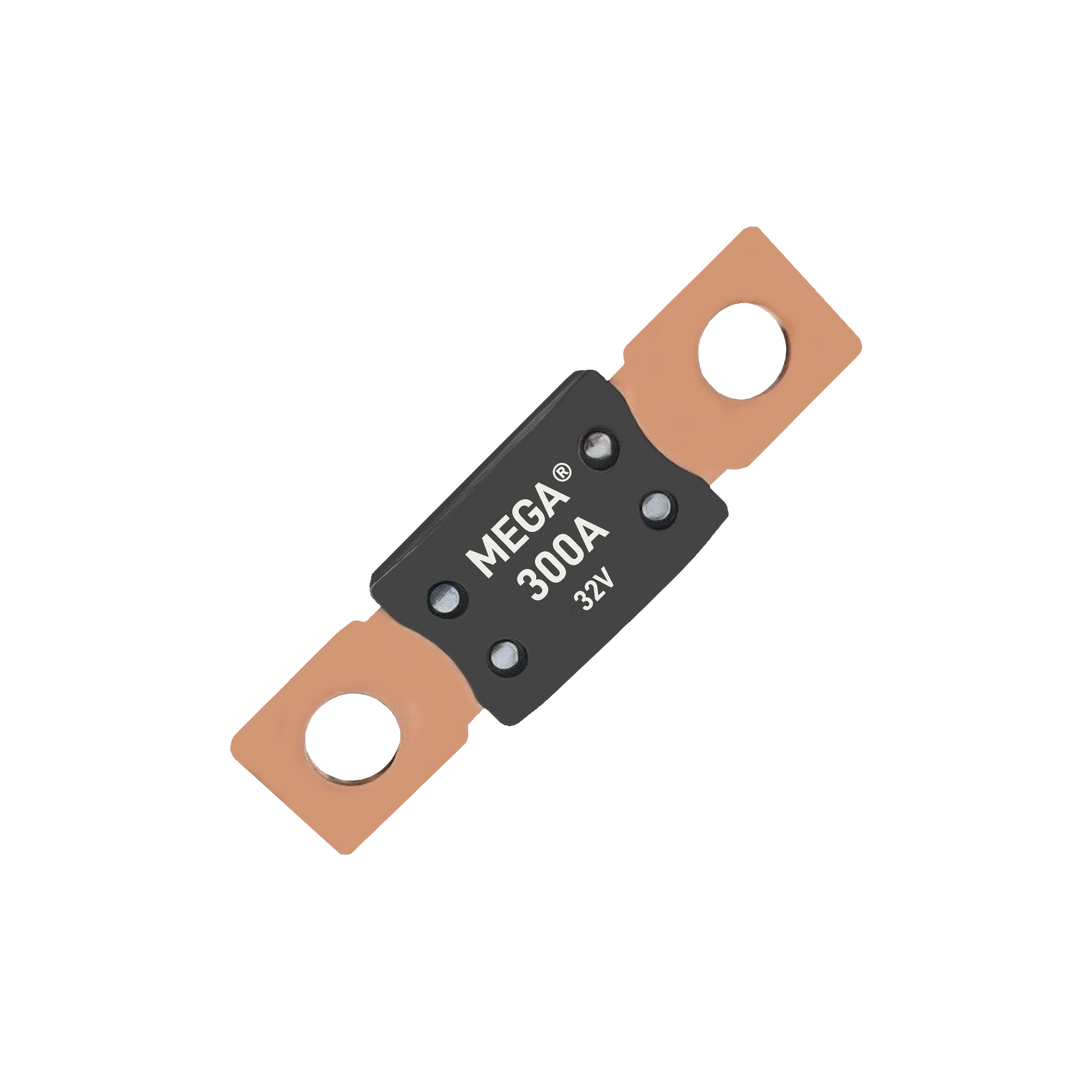

MEGA-fuse 300A/32V (Single Piece)
The Victron MEGA-Fuse 300A / 32V (part code CIP136300010) is part of Victron’s MEGA fuse range designed for high current DC systems. It is ideal for protecting battery banks, alternator circuits, or DC input/output cabling in solar, off-grid or mobile power installations.
Sold as a single unit.
Key Specifications:
- Nominal current: 300 A
- Maximum voltage: 32 V DC
- Approximate voltage drop: 80 mV
- Cold (ambient) resistance: 0.17 mΩ
Integration & Usage:
This single fuse is intended to be installed in Victron’s modular MEGA fuse holders, or in compatible fuse blocks and busbar systems. It pairs well with battery, inverter or DC distribution systems, helping to protect against overcurrent while maintaining efficiency due to its low resistance.
Because the voltage drop is kept low (80 mV), the fuse introduces minimal energy loss in high current paths, which is particularly important in 24 V and 12 V systems where every millivolt counts.
