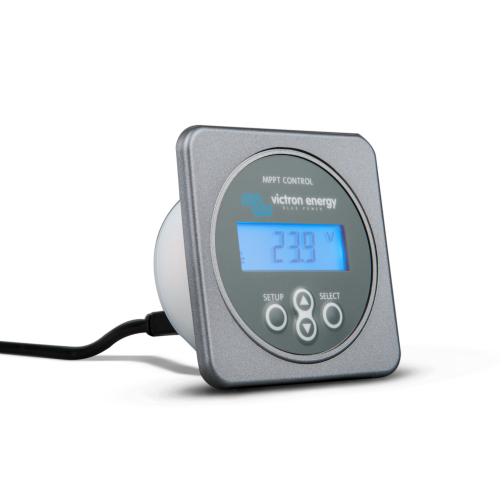

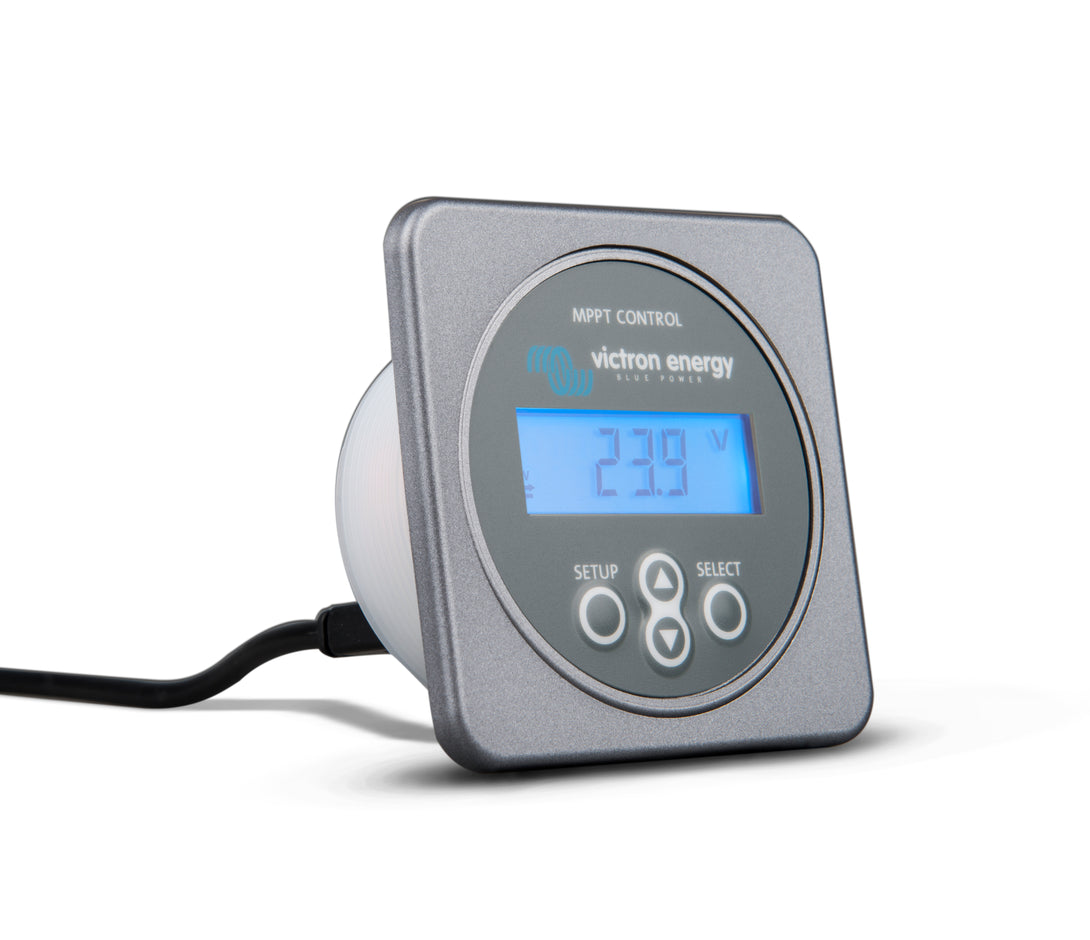

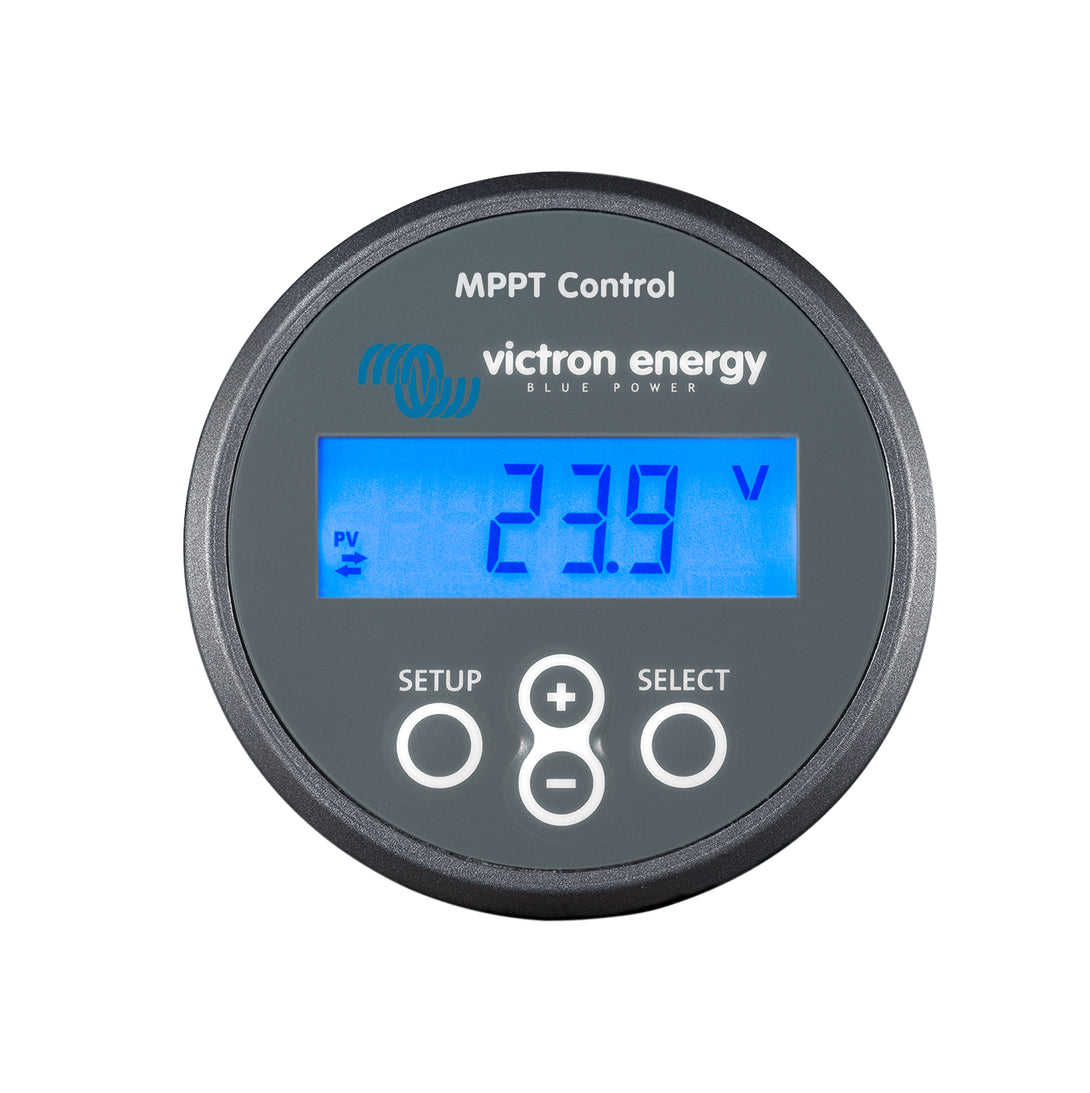

Victron MPPT Control - Screen For MPPT Charge Controllers

Live Monitoring DataThe display provides real-time readout of the following parameters:

• Solar (PV) Data: Voltage, Current, and Power (Watts).
• Battery Data: Voltage, Charge Current, and Charge Stage (Bulk, Absorption, Float, Storage, or Fault).
• Load Output: State (On/Off) and Current (only for controllers equipped with a physical load output).
• Daily Yield: Cumulative solar energy received for the current day.

Historical Data (30-Day & Lifetime)The internal memory allows users to scroll through 30 days of daily history as well as cumulative lifetime values:

• Daily Stats: Yield (kWh), Maximum Power (W), Maximum PV Voltage (V), and Maximum/Minimum Battery Voltage.
• Charge Stage Timing: Daily time spent in Bulk, Absorption, and Float stages.
• Error Logging: Access to the last four active or historical errors.
• Cumulative Data: Total lifetime yield (kWh) and maximum recorded values since the last history reset.

Configurable ParametersThe MPPT Control allows for deep system configuration directly from the front panel:

• Battery Setup: System voltage, battery type (fixed or user-defined), and maximum charge current.
• Voltage Setpoints: Absorption voltage, Float voltage, and Equalisation voltage.
• Charger Logic: Absorption time limits, Bulk time limits, and temperature compensation coefficients.
• Load Output Management: Low-voltage disconnect/reconnect levels and lighting timer modes.
• System Actions: Manual equalization initiation, factory reset, and clearing of historical data.

Product Compatibility

• Supported Range: Entire BlueSolar and SmartSolar MPPT range featuring a VE.Direct port.
• Exception: Not compatible with the long-discontinued BlueSolar MPPT 70/15.
• Recommendation: For solar chargers rated 60A and above, the SmartSolar Control display is often a better-suited alternative for direct plug-in use.

Electrical Specifications

• Supply Voltage (via Battery): 6.5 – 95 Vdc
• Supply Voltage (via VE.Direct): 5 Vdc
• Power Consumption (Backlight Off): < 0.05W
• Operating Temperature Range: -20°C to +50°C
• Power Cable Fuse Rating: 100mA

Mechanical Specifications

• Display Type: Backlit monochrome LCD
• Controls: 4 push buttons for menu navigation
• Installation Type: Flush mount (standard) or surface mount (via optional enclosure)
• Front Diameter: 63 mm (2.5")
• Front Bezel Dimensions: 69 x 69 mm (2.7" x 2.7")
• Body Diameter: 52 mm (2.0")
• Body Depth: 31 mm (1.2")
• Weight: 50 g
