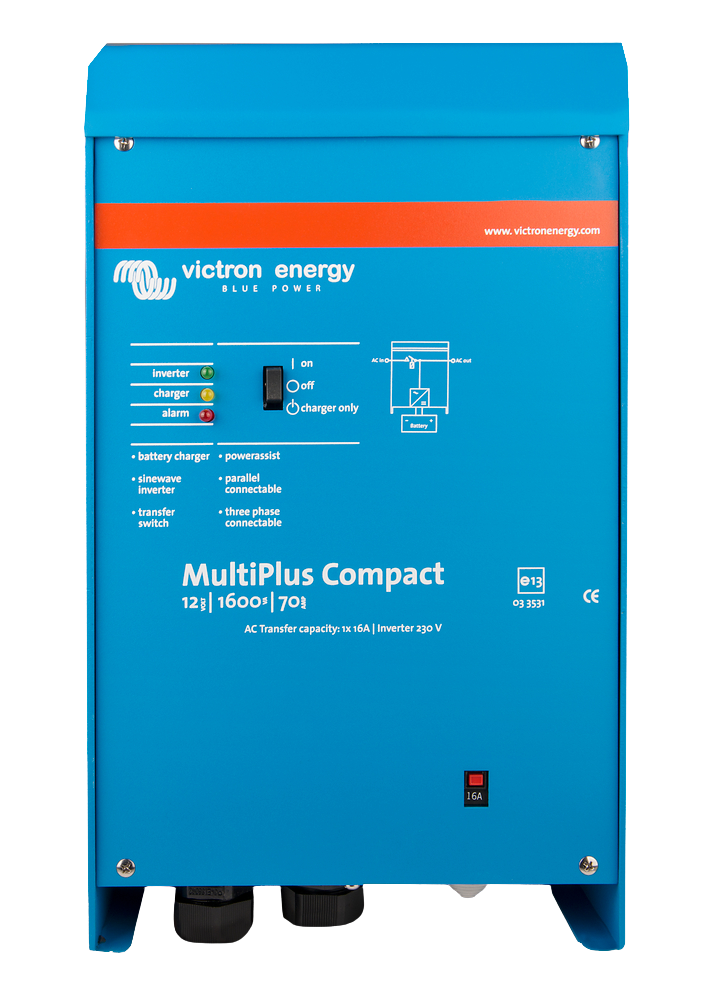

Victron MultiPlus Compact 12/1600/70-16 – 12V 1600VA Inverter/Charger

The Victron MultiPlus Compact 12/1600/70-16 is a versatile 12V inverter/charger offering 1600VA output, 70A charging current, and 16A AC input, all in a compact design.

Integrated Inverter, Charger, and AC Transfer Switch 1600VA Output with 70A Charging Capacity Adaptive Charging Technology for Battery Longevity High-Speed AC Transfer Switch for Uninterrupted Power Compact Design for Easy Installation in Various Applications Dimensions: 375 x 214 x 110mm Weight: 10kg
£1,046.40 £627.84 SAVE £418.56
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: CMP122160000
AVAILABLE IN 7-10 DAYS
Product Details
Product Specifications

Inverter Performance

  • Cont. Output Power at 25°C: 1600 VA
  • Cont. Output Power at 25°C: 1300 W
  • Cont. Output Power at 40°C: 1200 W
  • Cont. Output Power at 65°C: 800 W
  • Peak Power: 3000 W
  • Maximum Efficiency: 93% / 94%
  • Zero Load Power: 8 W / 10 W
  • Zero Load Power (AES Mode): 5 W / 8 W
  • Zero Load Power (Search Mode): 2 W / 3 W
  • Output Voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Input Voltage Range: 9.5 – 17 VDC

Battery Charger

  • AC Input Voltage Range: 187 – 265 VAC
  • Input Frequency: 45 – 65 Hz
  • Charge Voltage 'Absorption': 14.4 VDC
  • Charge Voltage 'Float': 13.8 VDC
  • Storage Mode: 13.2 VDC
  • Charge Current House Battery: 70 A
  • Charge Current Starter Battery: 4 A (Available for 12V and 24V models)
  • Battery Temperature Sensor: Yes
  • Battery Compatibility: Lithium Ion and Lead-acid compatible

Functional Features

  • PowerControl: Manages limited generator or shore side power by setting a maximum current limit. The MultiPlus prioritizes other AC loads and uses whatever is extra for charging, preventing source overload.
  • PowerAssist: Supplements the capacity of shore or generator power with energy from the battery during peak load requirements.
  • Transfer Switch: Integrated 16 A high-speed switch.
  • Scalability: Supports parallel operation (up to 6 units) and three-phase configuration for higher power requirements.
  • Programmable Relay: Can be configured for general alarms, DC under-voltage warnings, or generator start/stop functions.
  • Remote On-Off: Yes.

Environmental & Protection

  • Operating Temperature Range: -40 to +65 °C (fan-assisted cooling)
  • Humidity: Max 95% (non-condensing)
  • Maximum Altitude: 2000 m
  • Integrated Protections: Output short circuit, overload, battery voltage (too high/low), temperature (too high), 230 VAC on inverter output, and input voltage ripple too high.

Mechanical Specifications

  • Enclosure Material: Aluminium
  • Enclosure Color: Blue (RAL 5012)
  • Protection Category: IP20
  • Dimensions (h x w x d): 375 x 214 x 110 mm
  • Unit Weight: 10 kg
  • Battery Connection: 1.5-meter battery cables included
  • 230 VAC Connection: G-ST18i connector

Standards & Compliance

  • Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
  • Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
  • Road Vehicles: ECE R10-4

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron MultiPlus Compact 12/1600/70-16 – 12V 1600VA Inverter/Charger - Manual
Victron MultiPlus Compact 12/1600/70-16 – 12V 1600VA Inverter/Charger - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 1600VA inverter with an estimated continuous output of ~1300W. A comfortable all-rounder for serious motorhome and off-grid base loads.

Inverter size 1600VA
Continuous output ~1300W

Typical appliances you can run

  • Induction hob on a medium setting (around 1000–1300W)
  • Larger inverter air-con (around 900–1200W running)
  • Vacuum cleaner (modern, around 700–900W)
  • Heated clothes airer (around 300W)
  • Dishwasher, heat-pump type (around 900W)
  • Larger dehumidifier (around 400–700W)
  • Bread maker (around 450–800W)
  • Small microwave (around 700–900W)
A 700–900W microwave generally fits well here with sensible headroom, depending on startup demand and the wider system design.
