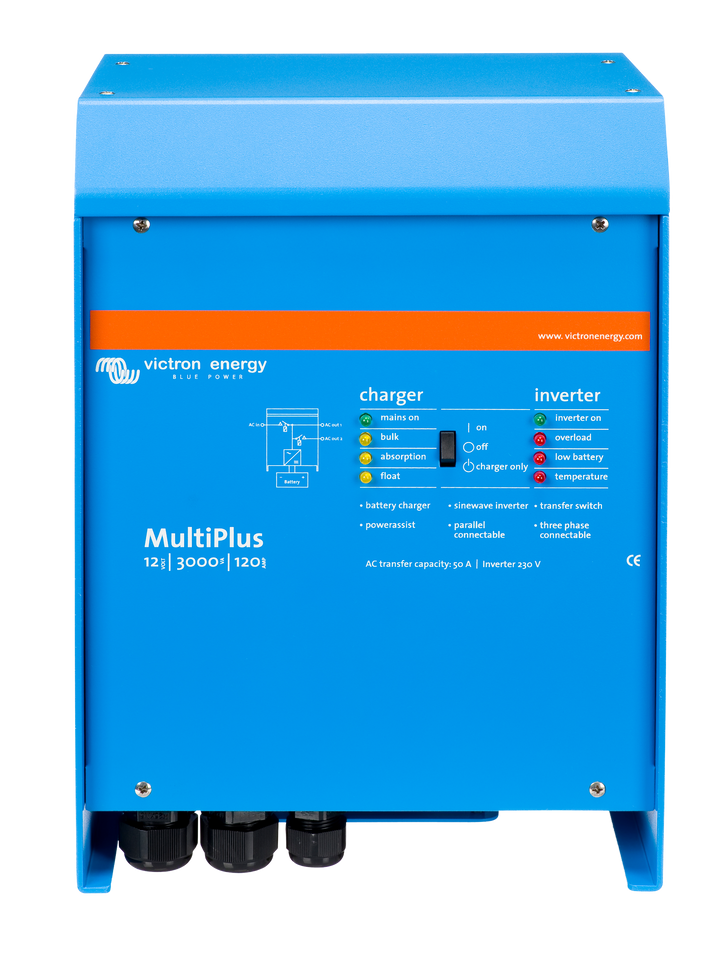

Victron MultiPlus 12V/3000VA Inverter/Charger - 12/3000/120-16 230V VE.Bus

£1,395.00 £920.00 SAVE £475.00
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP122300001
IN STOCK
Receive between -
Product Details

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

Unique PowerAssist feature

The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Virtually unlimited power thanks to parallel operation

Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…

Product Specifications

Technical Specifications

Combined for SKUs: PMP122300001

A CInput Voltage Range1: [187, 250] VAC

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: See our website

Automotive Directive: ECE R10-4

Auxiliary Output: Yes

Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)

Battery Voltage Nominal: 12 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 14.4 VDC

Charge Voltage Float: 13.8 VDC

Charge Voltage Storage: 13.2 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Communication Port General: Yes

Computer Programming: Yes

Continuous Power (VA, 25°C): 3,000 VA

Continuous Power (W, 25°C): 2,400 W

Continuous Power (W, 40°C): 2,200 W

Continuous Power (W, 65°C): 1,700 W

D CInput Current: 250 V

D IPSwitches Programming: Yes

DC Input Voltage Range: [9.5, 17] VDC

Depth: 218 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Fan Assist Cooling: Yes

Frequency Select: 50Hz or 60Hz

Height: 362 mm

Material: Aluminium

Max Altitude: 2,000 m

Max Efficiency: 93 %

Max Humidity: 95 %

Max Output Ac Current: 11 A

Max Output Ac Current Fault: 32 A

Maximum Battery Charge Current: 120 A

Ovciii Icw: 6kA 30mS

Parallel Operation: Yes

Peak Power Rating: 6,000 W

Pollution Degree: 2

Power Assist: Yes

Power Control: Yes

Power Factor: 1

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP20

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1

Starter Battery Charge Current: 4 A

Starter Battery Charge Output: Yes

Temperature Sensor: Included

Three-phase Operation: Yes

Transfer Switch Current Rating: 16 A

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 18 kg

Width: 258 mm

Zero Load Power: 20 W

Zero Load Power (AES): 15 W

Zero Load Power (Search): 8 W

Source: Victron


Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £150.
  • £5.99 for orders under £150.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Polic

Datasheets
Victron MultiPlus 12V/3000VA Inverter/Charger - 12/3000/120-16 230V VE.Bus - Manual
Victron MultiPlus 12V/3000VA Inverter/Charger - 12/3000/120-16 230V VE.Bus - Data Sheet
