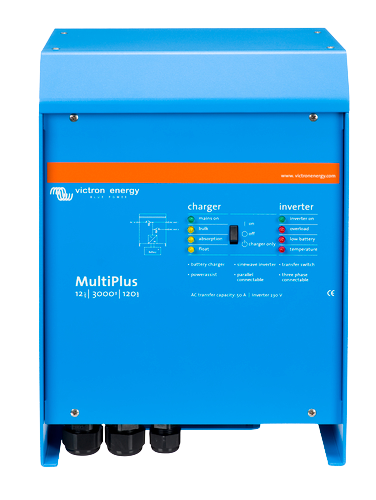

Victron MultiPlus 12V 3000VA Inverter/Charger - 12/3000/120-50 230V VE.Bus

Max consistent power 3000VA off-grid. For 12V systems. Pure sine wave inverter & battery charger in one. Connect with the GX50 touch screen and Cerbo GX.
£1,845.60 £1,204.00 SAVE £641.60
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP123021010
AVAILABLE IN 7-10 DAYS
Product Details

Victron MultiPlus 12/3000/120-50 230V VE.Bus – PMP123021010

Key Features:

Unique PowerAssist Feature:

Prevents overload of a limited AC source, such as a generator or shore power connection.
Automatically reduces battery charging to avoid overload.
Boosts the output of a generator or shore-side supply by utilizing power from the battery.


Uninterrupted AC Power (UPS Function):

Activates the inverter within milliseconds in the event of a grid failure, ensuring uninterrupted power supply to connected loads.
Ideal for powering sensitive electronics and equipment without disruption.


Virtually Unlimited Power with Parallel Operation:

Up to 6 Multis can operate in parallel, allowing for higher power output.
Three-phase or split-phase operation is possible, enhancing flexibility based on your power requirements.


Remote Monitoring and Control:

Coupled with a GX device like Cerbo GX, enables local and remote monitoring and control.
Accessible via the internet from anywhere globally using the free VRM app and VRM portal website.
Offers comprehensive control options, including adjusting the Multi and auto-starting a backup generator.


Seamless Connectivity:

Compatible with Cerbo GX, GX Touch, MFD, and VictronConnect App for remote management.
Bluetooth capability enhances accessibility and control options.
Redefines smart power solutions with advanced connectivity features.


Versatile System Integration:

Perfectly integrates into various systems, offering compatibility with multiple operating systems.
Ensures a high level of control over your power system, providing flexibility and adaptability.


Reliable and Robust Design:

Crafted with durability in mind, the MultiPlus 12/3000/120-50 is built to withstand diverse power demands.
Offers peace of mind with Victron's renowned quality and reliability.

Product Specifications

Technical Specifications

Combined for SKUs: PMP123021010

A CInput Voltage Range1: [187, 250] VAC

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 3,000 VAC

Anti Islanding Standard: See our website

Automotive Directive: ECE R10-4

Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)

Battery Voltage Nominal: 12 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 14.4 VDC

Charge Voltage Float: 13.8 VDC

Charge Voltage Storage: 13.2 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Communication Port General: Yes

Computer Programming: Yes

Continuous Power (VA, 25°C): 3,000 VA

Continuous Power (W, 25°C): 2,400 W

Continuous Power (W, 40°C): 2,200 W

Continuous Power (W, 65°C): 1,700 W

D CInput Current: 250 V

D IPSwitches Programming: Yes

DC Input Voltage Range: [9.5, 17] VDC

Depth: 218 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Fan Assist Cooling: Yes

Frequency Select: 50Hz or 60Hz

Height: 362 mm

Material: Aluminium

Max Altitude: 2,000 m

Max Efficiency: 93 %

Max Humidity: 95 %

Max Output Ac Current: 93 A

Max Output Ac Current Fault: 32 A

Maximum Battery Charge Current: 120 A

Ovciii Icw: 6kA 30mS

Parallel Operation: Yes

Peak Power Rating: 6,000 W

Pollution Degree: 2

Power Assist: Yes

Power Control: Yes

Power Factor: 1

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP20

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1

Starter Battery Charge Current: 4 A

Starter Battery Charge Output: Yes

Temperature Sensor: Included

Three-phase Operation: Yes

Transfer Switch Current Rating: 50 A

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 18 kg

Width: 258 mm

Zero Load Power: 20 W

Zero Load Power (AES): 15 W

Zero Load Power (Search): 8 W

Source: Victron
