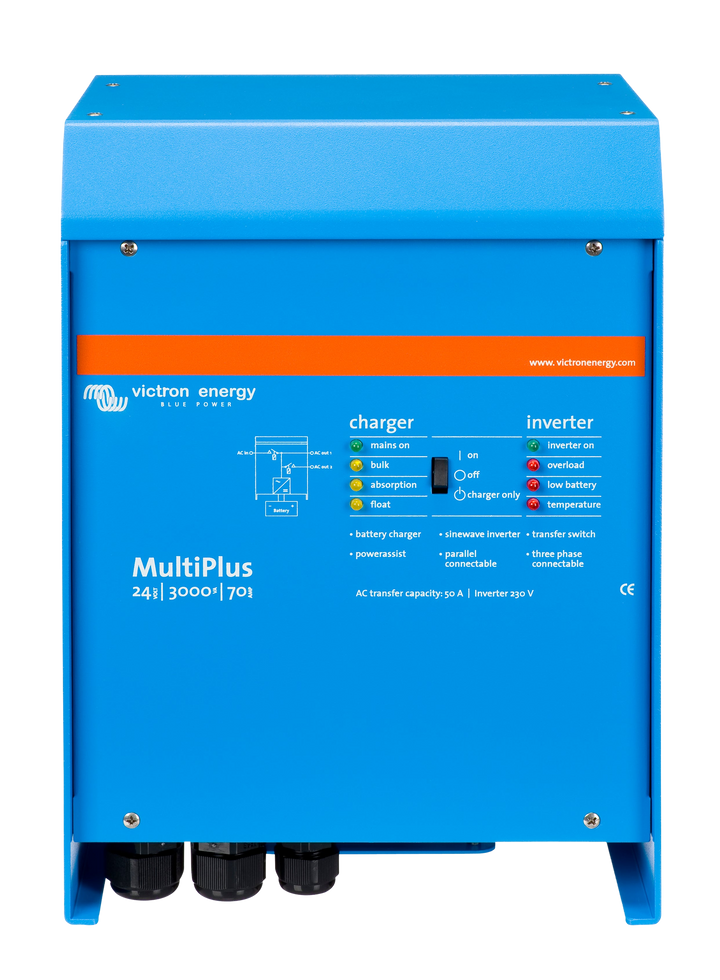

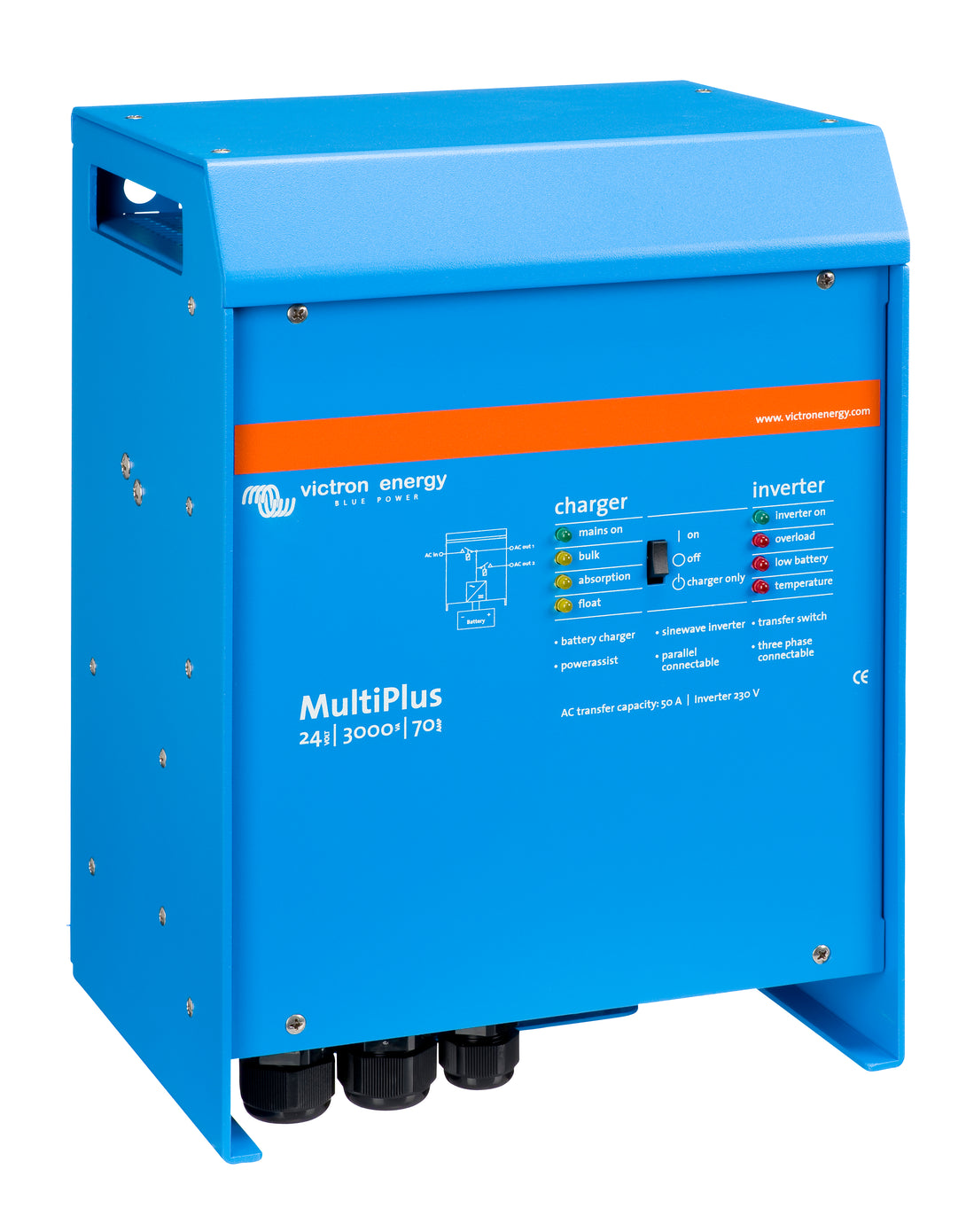

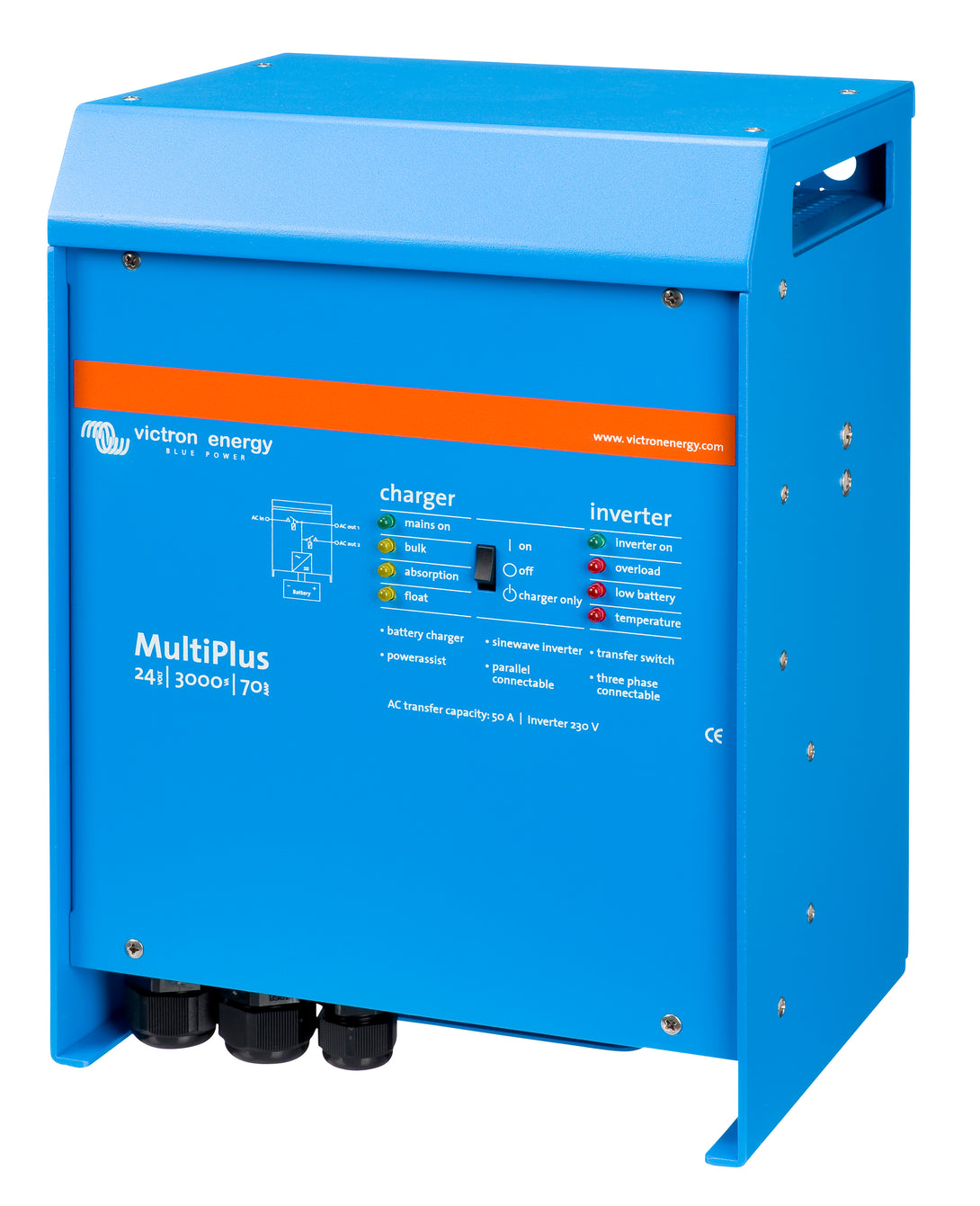

Victron MultiPlus 24/3000/70-50 230V VE.Bus

Inverter Specifications

• Input Voltage Range: 19 – 33 VDC
• Output Voltage: 230 VAC ± 2%
• Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
• Cont. Output Power at 25°C: 3000 VA
• Cont. Output Power at 25°C: 2400 W
• Cont. Output Power at 40°C: 2200 W
• Cont. Output Power at 65°C: 1700 W
• Peak Power: 6000 W
• Maximum Efficiency: 94%
• Zero-Load Power: 20 W
• Zero-Load Power (AES Mode): 15 W
• Zero-Load Power (Search Mode): 10 W
• Maximum Continuous Output Current: 11 A
• Maximum Output Fault Current: 32 A peak (1 second)

Charger Specifications

• AC Input Voltage Range: 187 – 265 VAC
• Input Frequency: 45 – 65 Hz
• Power Factor: 1
• Charge Voltage 'Absorption': 28.8 VDC
• Charge Voltage 'Float': 27.6 VDC
• Storage Mode: 26.4 VDC
• Charge Current House Battery: 70 A (at 25°C ambient)
• Charge Current Starter Battery: 4 A
• Battery Temperature Sensor: Yes

Features & Connectivity

• Two AC Outputs: Main output features "no-break" functionality. The second output is live only when AC is available on the input, preventing heavy loads like water heaters from discharging the battery (available on 3kVA models and higher).
• PowerControl & PowerAssist: Allows setting a maximum generator or shore current limit; the MultiPlus will supplement the source with battery power when peak demand exceeds the limit.
• Parallel Operation: Up to 6 units can be connected in parallel to achieve higher power output.
• Three-Phase Capability: Three units of the same model can be configured for three-phase output.
• Transfer Switch: 50 A
• Programmable Relay: Can be configured for general alarms, DC under-voltage, or generator start/stop functions.
• Auxiliary Output: Yes (16 A)
• VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration.
• Remote On-Off: Yes
• Lithium-Ion Compatible: Yes

Mechanical & Enclosure

• Dimensions (H x W x D): 362 x 258 x 218 mm
• Weight: 18 kg
• Material & Colour: Aluminium (Blue RAL 5012)
• Protection Category: IP21
• Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
• 230V AC Connection: Screw terminals 13 mm² (6 AWG)

Environmental & Standards

• Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
• Humidity: Max 95% (Non-condensing)
• Maximum Altitude: 2000 m
• Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
• Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Road Vehicles: ECE R10-4
• Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
