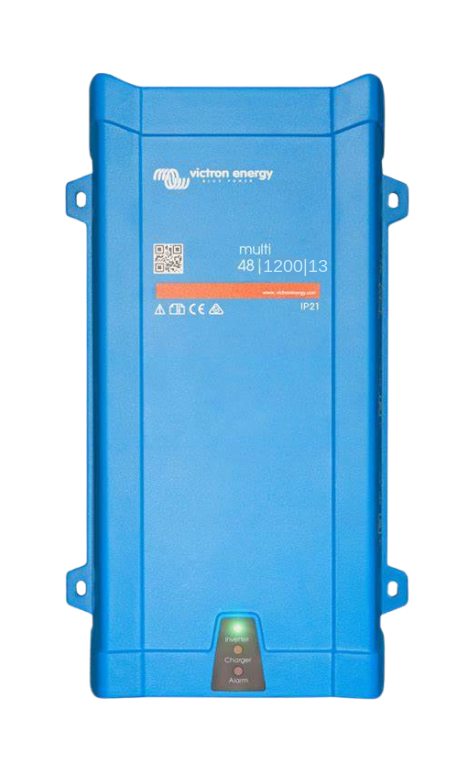

Victron MultiPlus 48V 1200VA Inverter/Charger

Technical Specifications

Combined for SKUs: PMP482120000

A CConnection Terminal Type: G-ST18i plug

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Automotive Directive: ECE R10-4

Battery Voltage Nominal: 48 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 57.6 VDC

Charge Voltage Float: 55.2 VDC

Charge Voltage Storage: 52.8 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Computer Programming: Yes

Continuous Power (VA, 25°C): 1,200 VA

Continuous Power (W, 25°C): 1,000 W

Continuous Power (W, 40°C): 900 W

Continuous Power (W, 65°C): 600 W

D IPSwitches Programming: Yes

DC Input Voltage Range: [38, 66] VDC

Depth: 100 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Fan Assist Cooling: Yes

Height: 406 mm

Internal DCFuse Rating: 50 A

Material: Steel chassis with ABS cover

Max Altitude: 2,000 m

Max Efficiency: 95 %

Max Humidity: 95 %

Maximum Battery Charge Current: 13 A

Parallel Operation: Yes

Peak Power Rating: 2,400 W

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP21

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1

Temperature Sensor: Included

Three-phase Operation: Yes

Transfer Switch Current Rating: 16 A

VE.Bus Terminal Type: One RJ45 terminal, RJ45-spliter ASS030065510 to expand to two ports

Weight: 8.2 kg

Width: 250 mm

Zero Load Power: 10 W

Zero Load Power (Search): 3 W

Source: Victron
