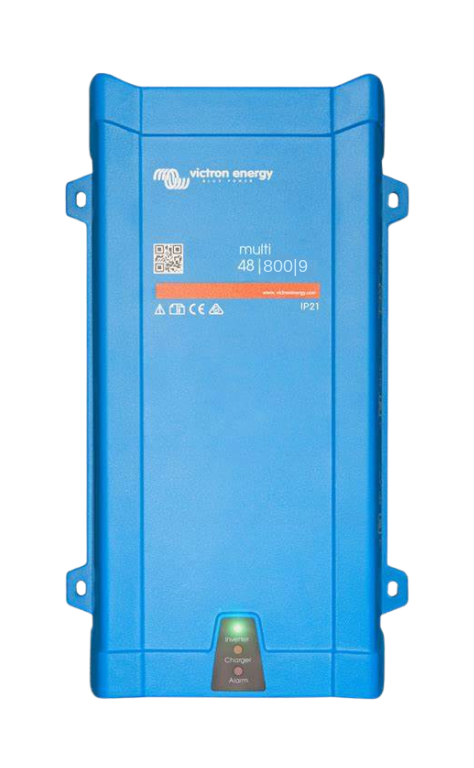

Victron MultiPlus 48V 800VA Inverter/Charger

For 48V systems. Max constant power 800VA off-grid. Use up to 3000VA on shore power. Charge your leisure batteries at 9A on shore power. Pure sine wave inverter and battery charger all in one.
£452.40 £308.99 SAVE £143.41
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP481800000
AVAILABLE IN 7-10 DAYS
Product Details

Victron MultiPlus 48/800/9-16 230V VE.Bus Inverter/Charger – PMP481800000

The Victron MultiPlus 48/800/9-16 is a versatile true sine wave inverter and advanced battery charger designed for off-grid applications. Combining efficiency and intelligence, it converts 48V DC power from leisure batteries to 230V AC power, enabling you to power domestic appliances up to 800VA when off-grid and up to 3000VA when connected to shore power. Here are the key features and details:

Key Features:

800VA True Sine Wave Inverter/Charger:

Powerful inverter with a true sine wave output ensures compatibility with a wide range of 230V appliances.
Sophisticated battery charger integrated into the system.


Seamless Power Source Switching:

Automatically switches between power sources without disruption.
When connected to shore power, appliances are powered directly from the hookup, and batteries recharge. In case of disconnection, the MultiPlus switches to powering appliances from batteries.


Charging Capabilities:

The 48/800/9 model allows for charging leisure batteries at a current of up to 9A.
Off-Grid Use Case:

Ideal for off-grid applications in campervans, motorhomes, RVs, and boats.
Suitable for users with mains power appliances totalling 800VA or less.


Pure Sine Wave Inverter:

Contains a pure sine wave inverter that precisely replicates the 230V AC waveform from household mains.
Ensures compatibility with all 230V appliances, safeguarding sensitive electronics.


Uninterrupted AC Power (UPS Function):

Activates automatically in less than 20 milliseconds during a grid failure, shore, or generator power disconnection.
Provides uninterrupted power supply, allowing computers and electronic equipment to continue operating seamlessly.


Remote Monitoring and Control:

While lacking built-in Bluetooth or smart connectivity, the MultiPlus can be paired with the VE.Bus smart dongle.
Allows monitoring of inverter performance and settings via the VictronConnect app.
Programmable alarms and cut-offs for low and high voltages can be set for added control.


VRM App and Portal Access:

Monitor and control the MultiPlus locally or remotely via the free VRM app and VRM portal website.
Accessible from various devices, including phones, tablets, laptops, and PCs.


Adaptable for Various Systems:

Can be integrated with the Color Control GX or Venus GX for advanced control features.

Product Specifications

Technical Specifications

Combined for SKUs: PMP481800000

A CConnection Terminal Type: G-ST18i plug

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Automotive Directive: ECE R10-4

Battery Voltage Nominal: 48 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 57.6 VDC

Charge Voltage Float: 55.2 VDC

Charge Voltage Storage: 52.8 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Communication Port General: No

Computer Programming: Yes

Continuous Power (VA, 25°C): 800 VA

Continuous Power (W, 25°C): 700 W

Continuous Power (W, 40°C): 650 W

Continuous Power (W, 65°C): 400 W

D IPSwitches Programming: Yes

DC Input Voltage Range: [38, 66] VDC

Depth: 100 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Fan Assist Cooling: Yes

Height: 360 mm

Internal DCFuse Rating: 40 A

Material: Steel chassis and plastic cover

Max Altitude: 2,000 m

Max Efficiency: 94 %

Max Humidity: 95 %

Maximum Battery Charge Current: 9 A

Parallel Operation: Yes

Peak Power Rating: 1,600 W

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1

Temperature Sensor: Included

Three-phase Operation: Yes

Transfer Switch Current Rating: 16 A

VE.Bus Terminal Type: One RJ45 terminal, RJ45-spliter ASS030065510 to expand to two ports

Weight: 6.4 kg

Width: 240 mm

Zero Load Power: 8 W

Zero Load Power (Search): 3 W

Source: Victron


Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £150.
  • £5.99 for orders under £150.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Polic

Datasheets
Victron MultiPlus 48V 800VA Inverter/Charger - Manual
Victron MultiPlus 48V 800VA Inverter/Charger - Data Sheet
