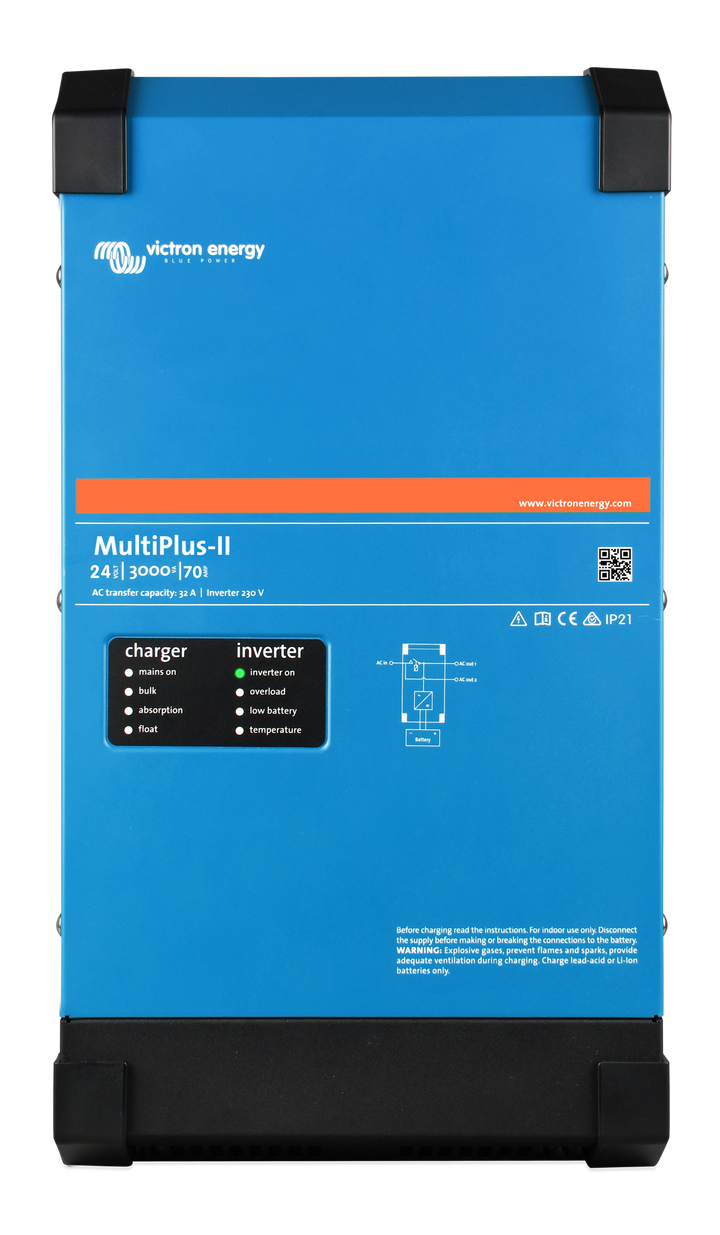

Victron MultiPlus-II 24/3000/70-32 230V

Inverter Specifications

• Nominal DC Input Voltage: 24 V
• Continuous Output Power at 25°C: 3000 VA
• Continuous Output Power at 25°C: 2400 W
• Continuous Output Power at 40°C: 2200 W
• Continuous Output Power at 65°C: 1700 W
• Maximum Apparent Feed-in Power: 3000 VA
• Peak Power: 5500 W
• Maximum Efficiency: 94%
• Zero Load Power: 13 W
• Zero Load Power (AES Mode): 9 W
• Zero Load Power (Search Mode): 3 W
• Output Voltage: 230 VAC ± 2%
• Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)

Charger Specifications

• AC Input Voltage Range: 187 – 265 VAC
• Input Frequency: 45 – 65 Hz
• Charge Voltage 'Absorption': 28.8 V
• Charge Voltage 'Float': 27.6 V
• Storage Mode: 26.4 V
• Maximum Battery Charge Current: 70 A
• Battery Temperature Sensor: Yes

Key Features & Connectivity

• PowerControl & PowerAssist: Prevents overloading a limited AC source (like a generator or shore power) by automatically reducing battery charging and supplementing the supply with battery power during peak loads.
• Two AC Outputs: The main output features "no-break" functionality, taking over the load in less than 20ms during power failures. The second output is active only when AC input is available, ideal for heavy loads that should not discharge the battery.
• Transfer Switch: 32 A
• ESS (Energy Storage System) Ready: Supports self-consumption optimization and grid-feed prevention.
• Parallel and 3-Phase Capability: Up to 6 units can operate in parallel. Three units of the same model can be configured for three-phase output.
• Programmable Relay: Can be set for general alarm, DC under-voltage, or generator start/stop functions.
• VE.Bus Port: For system integration, parallel/three-phase operation, and remote monitoring.

Mechanical Specifications

• Dimensions (H x W x D): 546 x 275 x 147 mm
• Weight: 19 kg
• Enclosure Material: Steel, blue (RAL 5012)
• Protection Category: IP22
• Battery Connection: M8 bolts
• 230V AC Connection: Screw terminals 13 mm² (6 AWG)

Environmental & Standards

• Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
• Humidity: Max 95% (Non-condensing)
• Maximum Altitude: 2000 m
• Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
• Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
