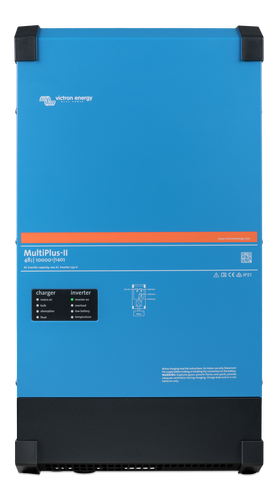

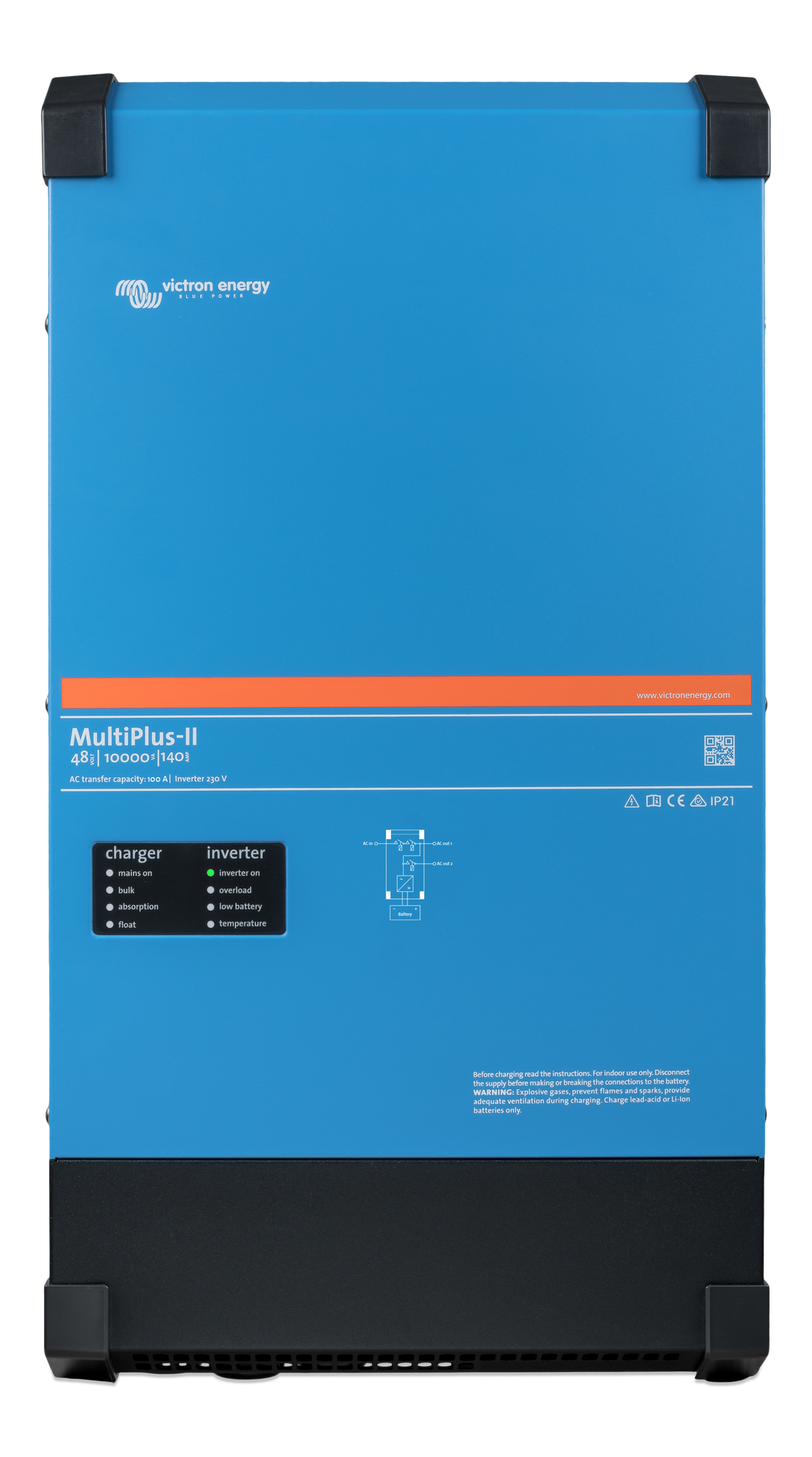

Victron MultiPlus-II 48/10000 48V inverter charger front view showing control panel and blue steel housing.
Side profile of Victron MultiPlus-II 10kVA inverter charger
Victron MultiPlus-II 48V inverter charger panel with AC/DC terminals and VE.Bus connections.
Victron MultiPlus-II 48V inverter charger rear panel with AC/DC terminals and VE.Bus connections.
Fast Delivery
Expert Support

Victron MultiPlus-II 48/10000 – 48V 10kVA Inverter/Charger

48 V 10 kVA inverter/charger combining true sine-wave output, adaptive charging, PowerAssist/PowerControl and expansion-ready parallel/three-phase support for serious power systems.

High-capacity output – 10 000 VA continuous inverter output (approx. 8 000 W) and top efficiency for major power loads. Advanced power management – Features PowerAssist and PowerControl to manage grid or generator limitations and supply peak loads from battery power. Scalable system architecture – Supports parallel connection and three-phase operation, enabling the system to grow with your power needs. Professional build quality – Steel enclosure, IP22 rated, standard size and weight, built for reliable installation in homes, mobile units or commercial setups. UPS-style continuity – Switches over to battery power in under 20 milliseconds for uninterrupted supply to critical loads. Highly compatible with popular battery brands - Victron, Pytes, Fogstar, etc. Dimensions: 677 x 363 x 206mm Weight: 49kg
£1,918.00 £1,109.00 SAVE £809.00
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP483105000
IN STOCK
Receive between -
Product Details
Product Specifications

Inverter Specifications

  • Continuous Output Power at 25°C: 10,000 VA
  • Continuous Output Power at 25°C: 8,000 W
  • Continuous Output Power at 40°C: 7,000 W
  • Continuous Output Power at 65°C: 6,000 W
  • Peak Power: 18,000 W
  • Maximum Apparent Feed-in Power: 10,000 VA
  • Maximum Efficiency: 96%
  • Zero-Load Power: 38 W
  • Zero-Load Power (AES Mode): 27 W
  • Zero-Load Power (Search Mode): 4 W
  • Output Voltage: 230 VAC ± 2%
  • Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)

Charger Specifications

  • AC Input Voltage Range: 187 – 265 VAC
  • Input Frequency: 45 – 65 Hz
  • Charge Voltage 'Absorption': 57.6 V
  • Charge Voltage 'Float': 55.2 V
  • Storage Mode: 52.8 V
  • Maximum Battery Charge Current: 140 A (at 25°C ambient)
  • Battery Temperature Sensor: Yes
  • Auxiliary Output: Yes (50 A)

Features & Connectivity

  • PowerControl & PowerAssist: Yes (Boosts grid or generator capacity by supplementing with battery power)
  • Transfer Switch: Integrated high-speed switch (less than 20ms transfer time)
  • Parallel Operation: Up to 6 units (Note: 10k models require an external AC transfer switch for parallel operation)
  • Three-Phase Operation: Yes
  • VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration
  • General Purpose Com. Ports: 2x
  • Programmable Relay: Yes (Configurable for general alarm, DC under voltage, or generator start/stop)
  • Remote On-Off: Yes
  • External AC Current Sensor (Optional): 50 A or 100 A

Mechanical & Enclosure

  • Dimensions (H x W x D): 677 x 363 x 206 mm
  • Weight: 49 kg
  • Material & Colour: Steel, blue (RAL 5012)
  • Protection Category: IP22
  • Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
  • 230V AC Connection: M6 Bolts

Environmental & Standards

  • Operating Temperature Range: -40 to +65 °C (Fan-assisted cooling)
  • Humidity (non-condensing): Max 95%
  • Maximum Altitude: 2,000 m
  • Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
  • Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
  • Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
