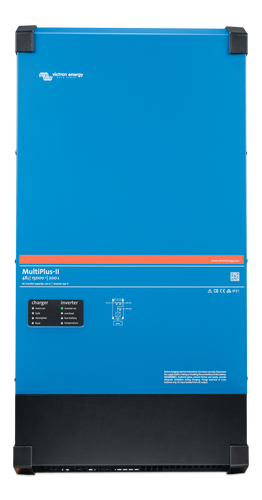

Victron MultiPlus-II 48/15000/200-100 230V inverter charger front view in blue steel housing
Side angle of Victron MultiPlus-II 48V 15kVA unit
Side angle of Victron MultiPlus-II 48V 15kVA unit
Victron MultiPlus-II 15kVA inverter charger showing AC and DC connection ports
Victron MultiPlus-II 15kVA inverter charger showing AC and DC connection ports
Fast Delivery
Expert Support

Victron MultiPlus-II 48/15000 – 48V 15kVA Inverter/Charger

48 V, 15 kVA inverter/charger with 200 A charger, PowerAssist & PowerControl, true sine-wave output and expandable architecture. Ideal for high-power homes, off-grid systems and commercial use.

High-output capacity – 15 000 VA inverter with 12 000 W continuous output at 25 °C for demanding loads. 200 A high-capacity charger – Supports rapid battery recharging in large systems. Smart power management – PowerAssist and PowerControl enable battery support during peak demand or limited AC supply. Uninterrupted supply for critical loads – Transfer to inverter mode in under 20 ms for UPS-style performance. Scalable and professional build – Steel housing, 48 V system support, parallel and three-phase ready and full GX/VRM integration. Free Tracked Delivery!
£5,991.60 £2,089.00 SAVE £3,902.60
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP483150000
AVAILABLE IN 7-10 DAYS
Product Details

The Victron MultiPlus-II 48/15000/200-100 230 V is a high-capacity inverter/charger designed for 48 V battery systems in demanding installations. Delivering 15 000 VA of continuous inverter output (12 000 W at 25 °C) and offering a 200 A battery charger, this model is ideal where serious power is required.

Housed in a steel enclosure finished in Victron blue with IP22 protection rating, the unit is built for robust, professional use.

It supports the advanced PowerControl and PowerAssist functions, allowing the system to manage limited AC source capability and draw on battery power during peak loads.

In the event of a grid failure or generator input loss, the MultiPlus-II switches to inverter mode in under 20 milliseconds, ensuring uninterrupted supply to critical loads.

It also offers parallel and three-phase operation for future expansion, making it suitable for large off-grid homes, commercial systems or hybrid energy storage solutions.

With true sine-wave output, anti-islanding real-time monitoring and full integration with the Victron GX ecosystem and VRM portal, this unit gives retail buyers a professional solution to meet high-power requirements in homes, workshops, mobile service units or commercial installations.

Product Specifications

Technical Specifications

Combined for SKUs: PMP483150000

A CConnection Terminal Type: M6 bolts

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: Please consult the certificates on our website

Auxiliary Output: Yes

Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)

Battery Voltage Nominal: 48 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 57.6 VDC

Charge Voltage Float: 55.2 VDC

Charge Voltage Storage: 52.8 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Communication Port General: Yes

Computer Programming: Yes

Continuous Power (VA, 25°C): 15,000 VA

Continuous Power (W, 25°C): 12,000 W

Continuous Power (W, 40°C): 10,000 W

Continuous Power (W, 65°C): 7,000 W

DC Input Voltage Range: [38, 66] VDC

Depth: 217 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

External Ac Current Sensor: 50A or 100A (optional)

Fan Assist Cooling: Yes

Height: 810 mm

Material: Steel

Max Ac Input Current: 100 A

Max Altitude: 2,000 m

Max Apparent Feed-in Power: 15,000 VA

Max Efficiency: 95 %

Max Humidity: 95 %

Maximum Battery Charge Current: 200 A

Parallel Operation: Yes

Peak Power Rating: 27,000 W

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP22

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2

Temperature Sensor: Included

Three-phase Operation: Yes

Transfer Switch Current Rating: 100 A

Ups Standard: Please consult the certificates on our website

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 80 kg

Width: 405 mm

Zero Load Power: 55 W

Zero Load Power (AES): 39 W

Zero Load Power (Search): 6 W

Source: Victron


Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £150.
  • £5.99 for orders under £150.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Polic

Datasheets
Victron MultiPlus-II 48/15000 – 48V 15kVA Inverter/Charger - Manual
Victron MultiPlus-II 48/15000 – 48V 15kVA Inverter/Charger - Data Sheet
