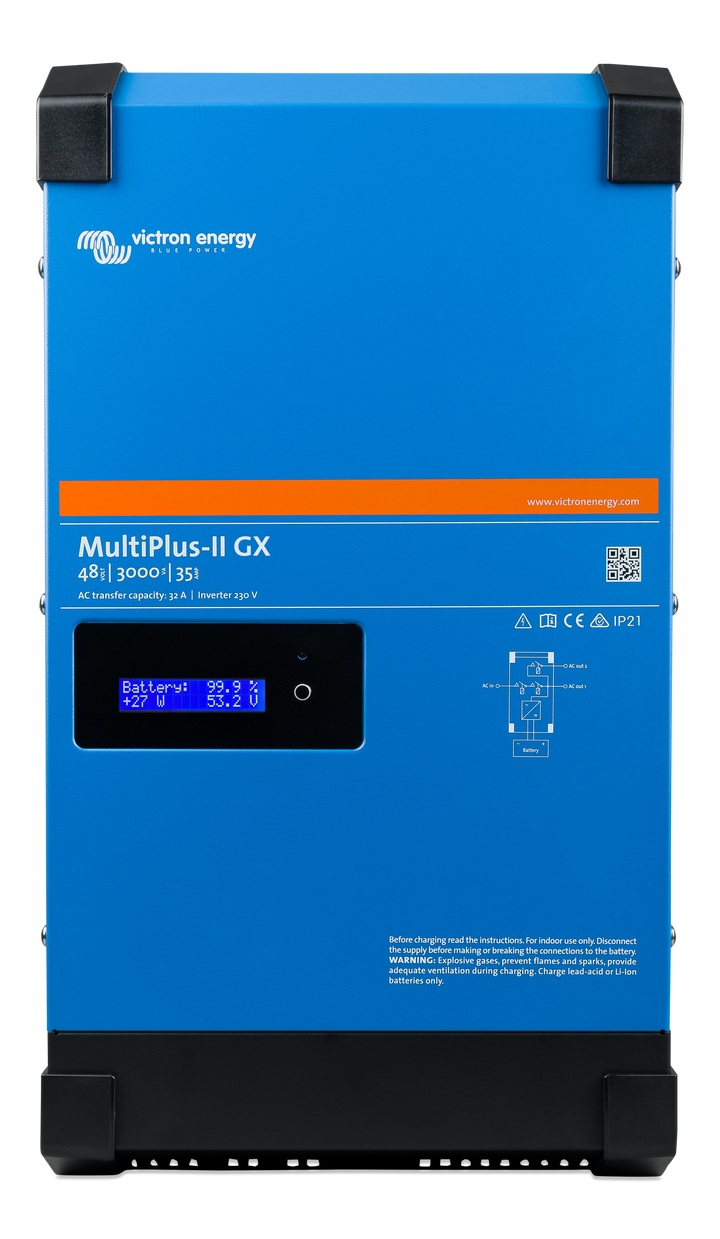

Victron MultiPlus-II 48/3000 – 48V 3000VA Inverter/Charger – GX Version

£1,148.40 £696.95 SAVE £451.45
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP482306000
AVAILABLE IN 7-10 DAYS
Product Details

Victron Victron MultiPlus-II 48/3000/35-32 230V GX – PMP482306000

  • Suitable for 48V systems
  • Max constant power 3000VA off-grid
  • Pure sine wave inverter & battery charger in one
  • Charge your batteries at 35A when connected to hookup
  • GX version allows for system monitoring via Bluetooth

The Victron MultiPlus-II 48/3000/35-32 GX is an advanced Inverter/Charger equipped with built-in device networking, offering seamless communication with solar chargers, batteries, and other devices. Engineered for versatile applications, this device provides efficient control in grid-connected, off-grid, or remote power installations. With parallel operation capabilities, three-phase supply configuration, and an array of advanced features, the MultiPlus-II GX delivers precision power control and monitoring.

Key Features:

Integrated GX Functionality with LCD:

Combines a MultiPlus-II inverter/charger with a GX device featuring a 2 x 16 character display.
Enables clear visibility into battery, inverter, and solar charge controller parameters.


Display and Wi-Fi Connectivity:

The display provides real-time information on essential parameters.
Wi-Fi connectivity allows users to access parameters using smartphones or other Wi-Fi-enabled devices.


Comprehensive GX Device:

Features a BMS-Can interface for connecting to a compatible CAN-bus managed battery.
Equipped with USB, Ethernet, and VE.Direct ports for versatile connectivity options.


Applications:

Ideal for applications requiring additional interfacing and remote monitoring, such as on-grid or off-grid energy storage systems and select mobile applications.
Parallel and Three-Phase Operation:

Capable of parallel operation for increased power output and battery charge rates.
Suitable for three-phase supply configurations.
Remote Monitoring and Control:

Enables local and remote monitoring and control when coupled with a Cerbo GX.
Accessible via the internet using the free VRM app and VRM portal website, offering control from various devices.


Bluetooth Capability:

Utilize the separate GX Touch, a MFD, or the VictronConnect App with added Bluetooth capability for direct access.
Flexible Control Options:

Adjust the MultiPlus-II settings, initiate auto-start for backup generators, and more, providing a high level of control.


Compatibility and Expansion:

Compatible with the Interface MK3-USB, facilitating connection to a computer for configuration and firmware updates.
Allows for easy expansion and integration with other Victron products.

Product Specifications

Technical Specifications

Combined for SKUs: PMP482306000

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: Please consult the certificates on our website

Battery Connection Terminal Type: M8 bolts

Battery Voltage Nominal: 48 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 57.6 VDC

Charge Voltage Float: 55.2 VDC

Charge Voltage Storage: 52.8 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Direct,VE.Bus,VE.Can,BMS-Can,WiFi,Ethernet

Communication Port General: Yes

Computer Programming: Yes

Continuous Power (VA, 25°C): 3,000 VA

Continuous Power (W, 25°C): 2,400 W

Continuous Power (W, 40°C): 2,200 W

Continuous Power (W, 65°C): 1,700 W

DC Input Voltage Range: [38, 66] VDC

Depth: 147 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

External Ac Current Sensor: 50A or 100A (optional)

Fan Assist Cooling: Yes

Height: 506 mm

Material: Steel

Max Ac Input Current: 32 A

Max Altitude: 2,000 m

Max Apparent Feed-in Power: 3,000 VA

Max Efficiency: 95 %

Max Humidity: 95 %

Maximum Battery Charge Current: 35 A

Parallel Operation: Yes

Peak Power Rating: 5,500 W

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP22

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2

Temperature Sensor: Included

Three-phase Operation: Yes

Transfer Switch Current Rating: 32 A

Ups Standard: IEC 62040-1

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 20 kg

Width: 275 mm

Zero Load Power: 11 W

Zero Load Power (AES): 7 W

Zero Load Power (Search): 2 W

Source: Victron


Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £150.
  • £5.99 for orders under £150.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Polic

Datasheets
Victron MultiPlus-II 48/3000 – 48V 3000VA Inverter/Charger – GX Version - Manual
Victron MultiPlus-II 48/3000 – 48V 3000VA Inverter/Charger – GX Version - Data Sheet
