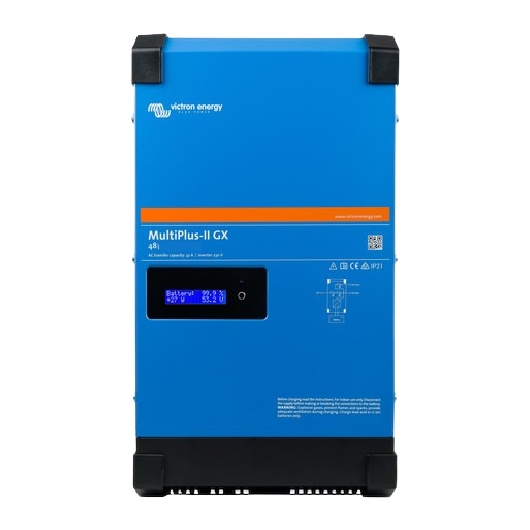

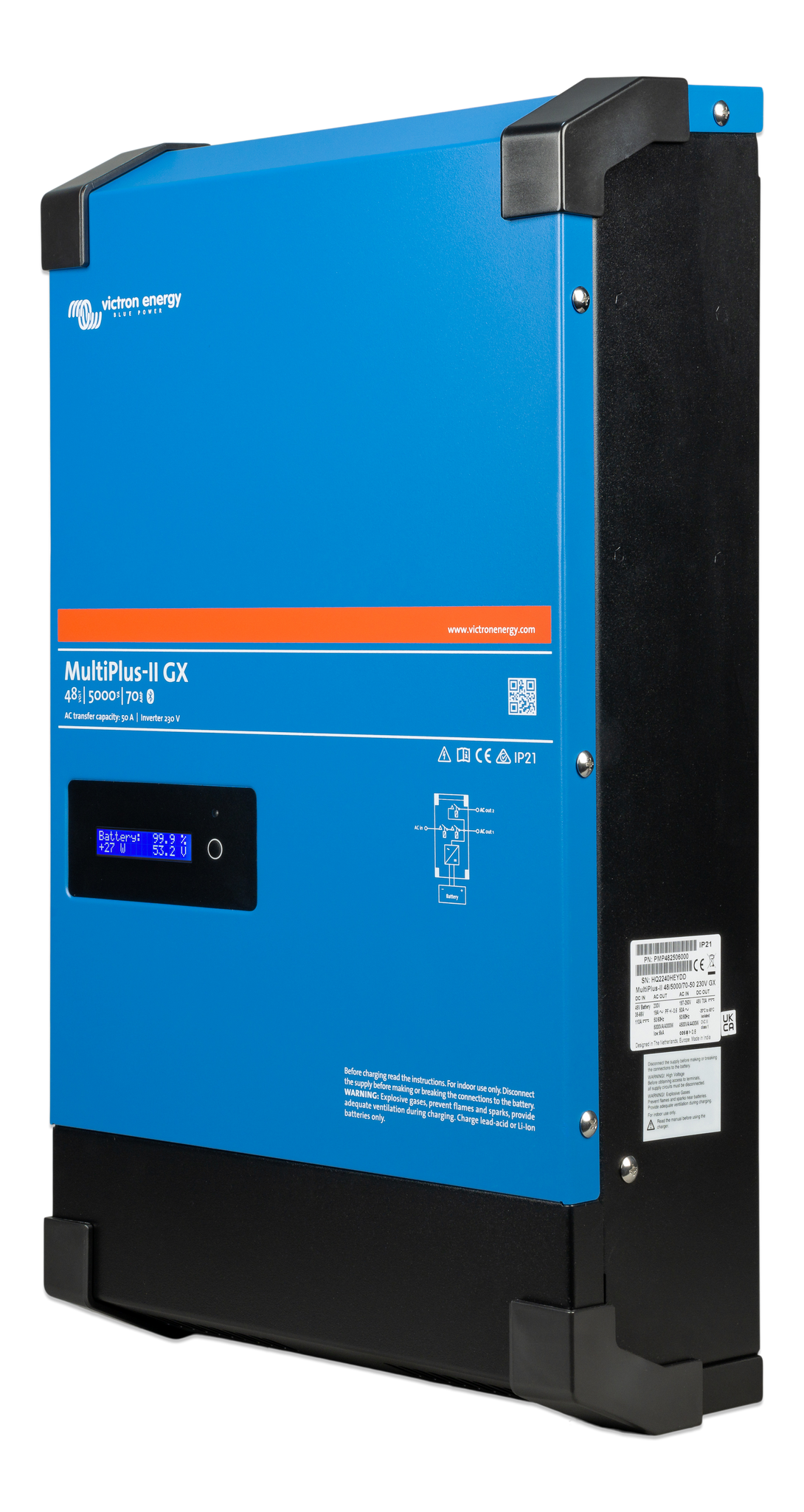

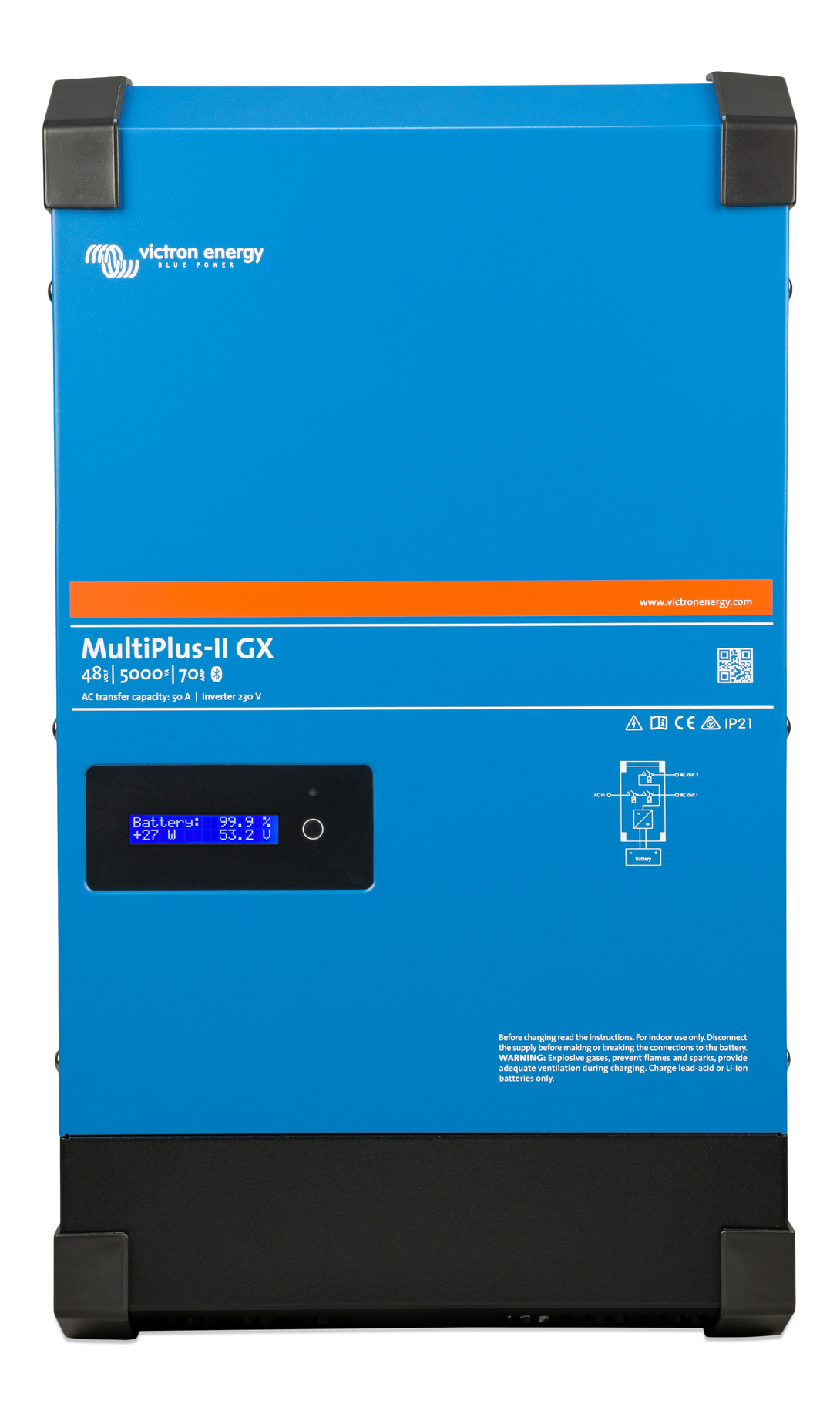

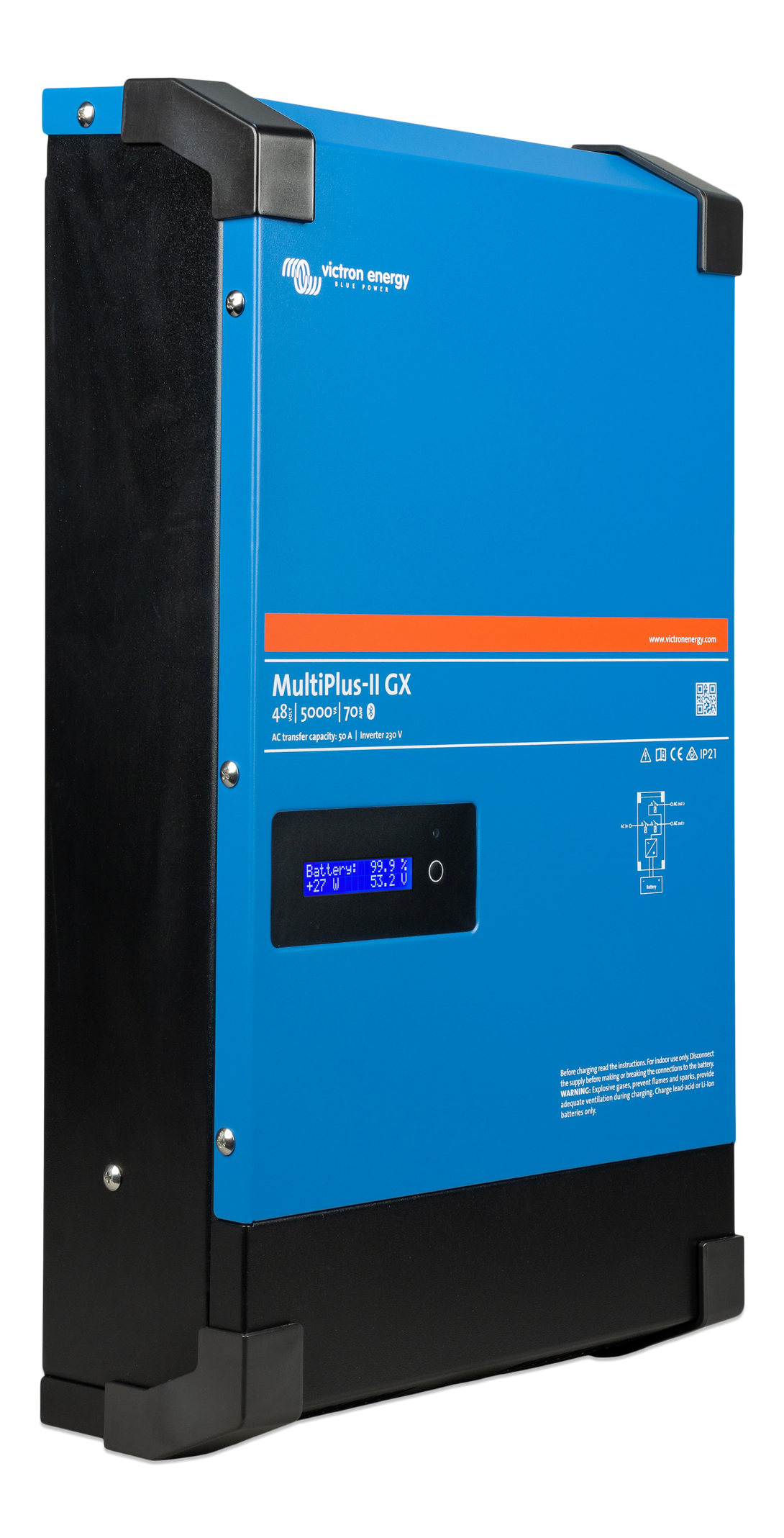

Victron MultiPlus-II 48/5000 – 48V 5000VA Inverter/Charger – GX Version

Performance & Electrical Specifications (Inverter)

• Nominal Battery Voltage: 48 V
• Input Voltage Range: 38 – 66 V
• Continuous Output Power at 25°C: 5000 VA
• Continuous Output Power at 25°C: 4000 W
• Continuous Output Power at 40°C: 3700 W
• Continuous Output Power at 65°C: 3000 W
• Peak Power: 9000 W
• Maximum Efficiency: 96%
• Zero Load Power: 18 W
• Zero Load Power (AES Mode): 12 W
• Zero Load Power (Search Mode): 2 W
• Output Voltage: 230 VAC ± 2%
• Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)

Charger Specifications

• AC Input Voltage Range: 187 – 265 VAC
• AC Input Frequency: 45 – 65 Hz
• Charge Voltage 'Absorption': 57.6 V
• Charge Voltage 'Float': 55.2 V
• Storage Mode: 52.8 V
• Maximum Battery Charge Current: 70 A
• Battery Temperature Sensor: Included

Key Features & System Integration

• Integrated GX Device: Includes an internal communication hub (equivalent to a Cerbo GX) for system configuration, monitoring, and control. It enables connection to the Victron Remote Management (VRM) portal for remote access and data logging.
• PowerControl & PowerAssist: Prevents overloading limited AC sources (such as a generator or shore power) by automatically adjusting battery charging. PowerAssist supplements the source with battery power during peak demand periods.
• Two AC Outputs: The main output features "no-break" functionality, taking over the supply to connected loads in less than 20 milliseconds during a grid failure. The second output is live only when AC is available on the input, preventing non-essential loads (like water heaters) from discharging the battery.
• Parallel and Three-Phase Operation: Up to 6 units can be connected in parallel to increase power output. Three units of the same model can also be configured for three-phase output.
• External Current Sensor Option: Allows for the extension of PowerControl and PowerAssist functions to 50 A or 100 A.
• Programmable Relay: Features a relay that can be configured for general alarms, DC under-voltage, or generator start/stop functions.

Mechanical Specifications

• Enclosure Material & Colour: Steel, Blue RAL 5012
• Protection Category: IP22

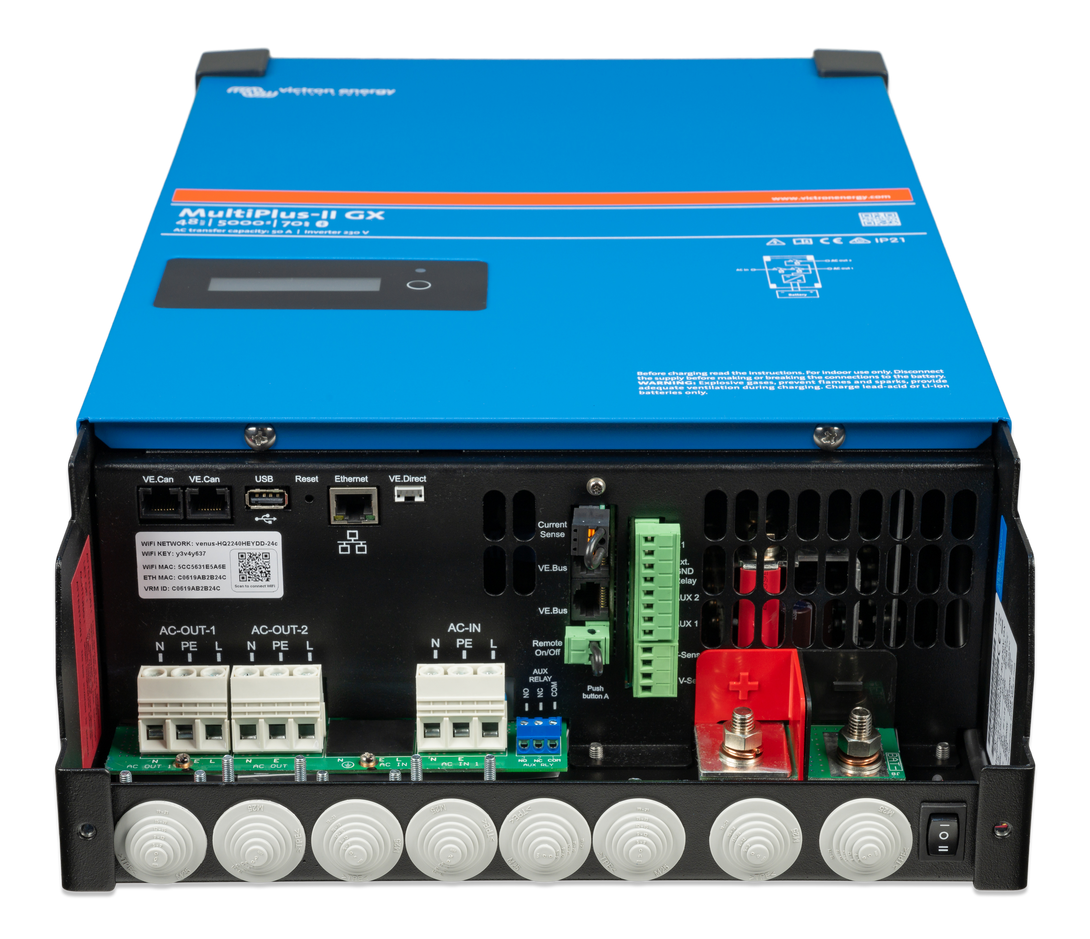

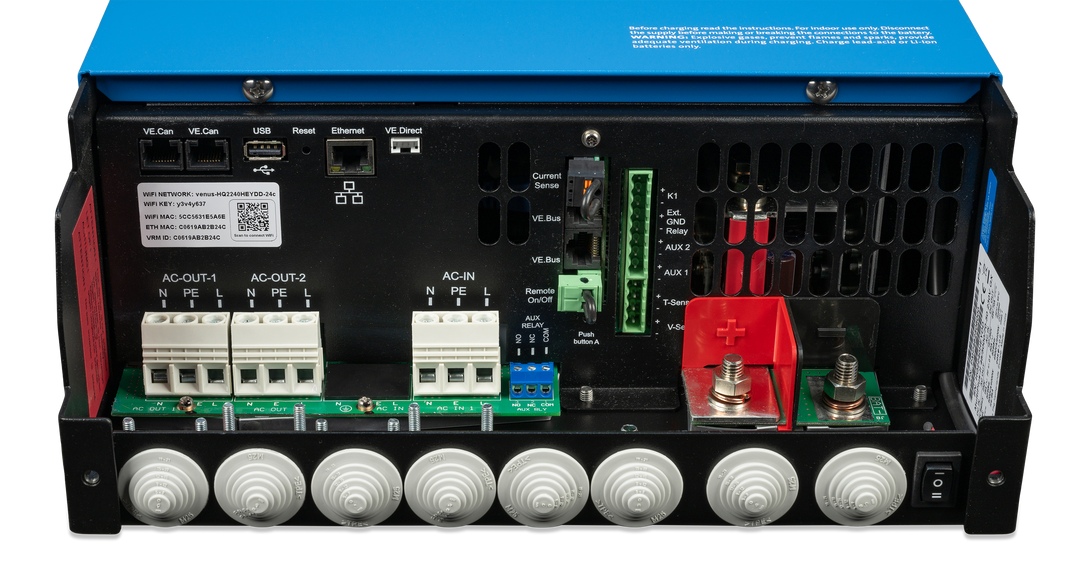

• Battery Connection: Four M8 bolts (2 plus and 2 minus connections)
• 230 VAC Connection: M6 bolts
• Weight: 30 kg
• Dimensions (h x w x d): 607 x 330 x 149 mm

Environmental & Standards

• Operating Temperature Range: -40 to +65 °C (fan assisted cooling)
• Humidity (non-condensing): Max 95%
• Maximum Altitude: 2000 m
• Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
• EMC Standards: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
