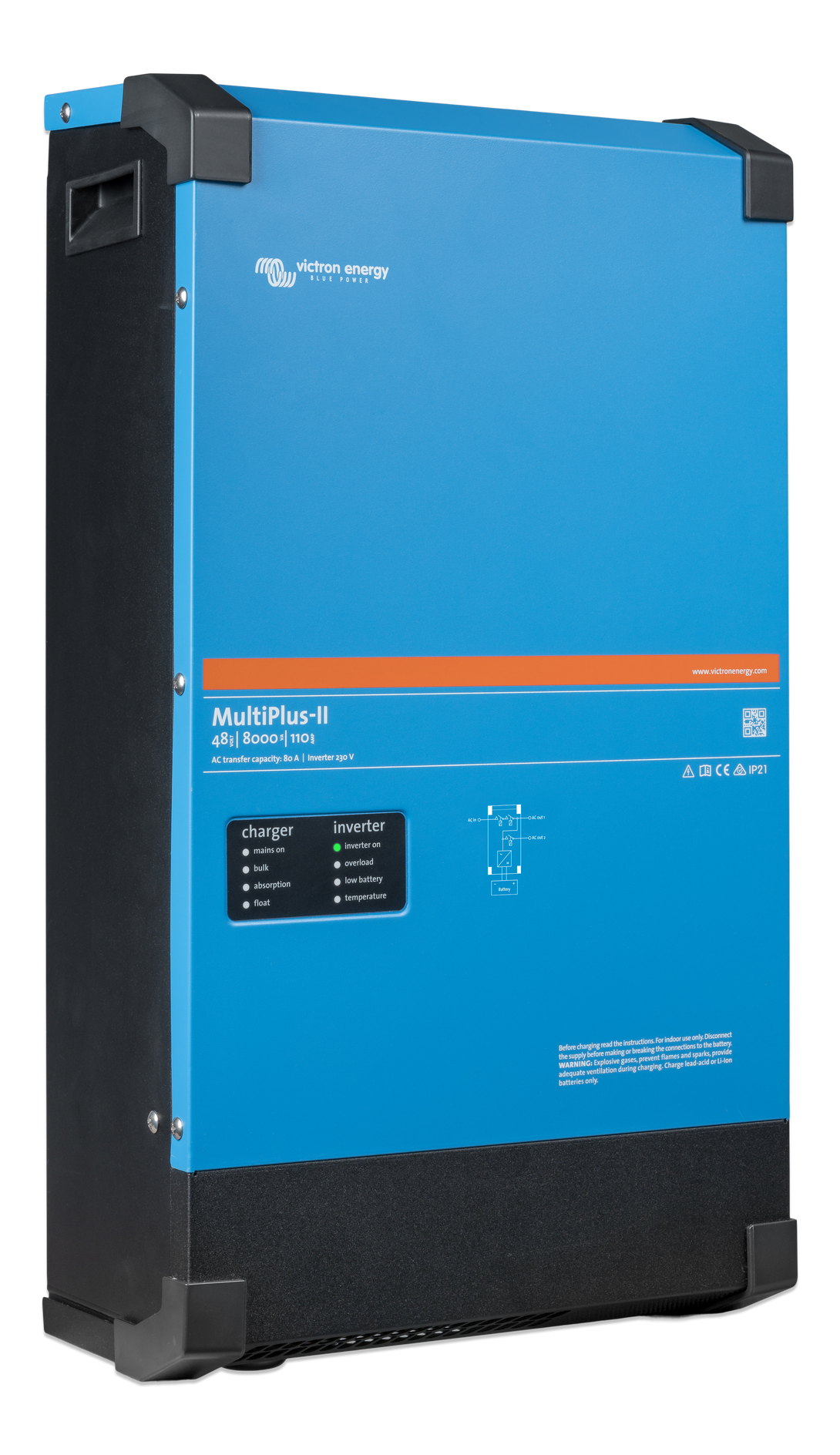

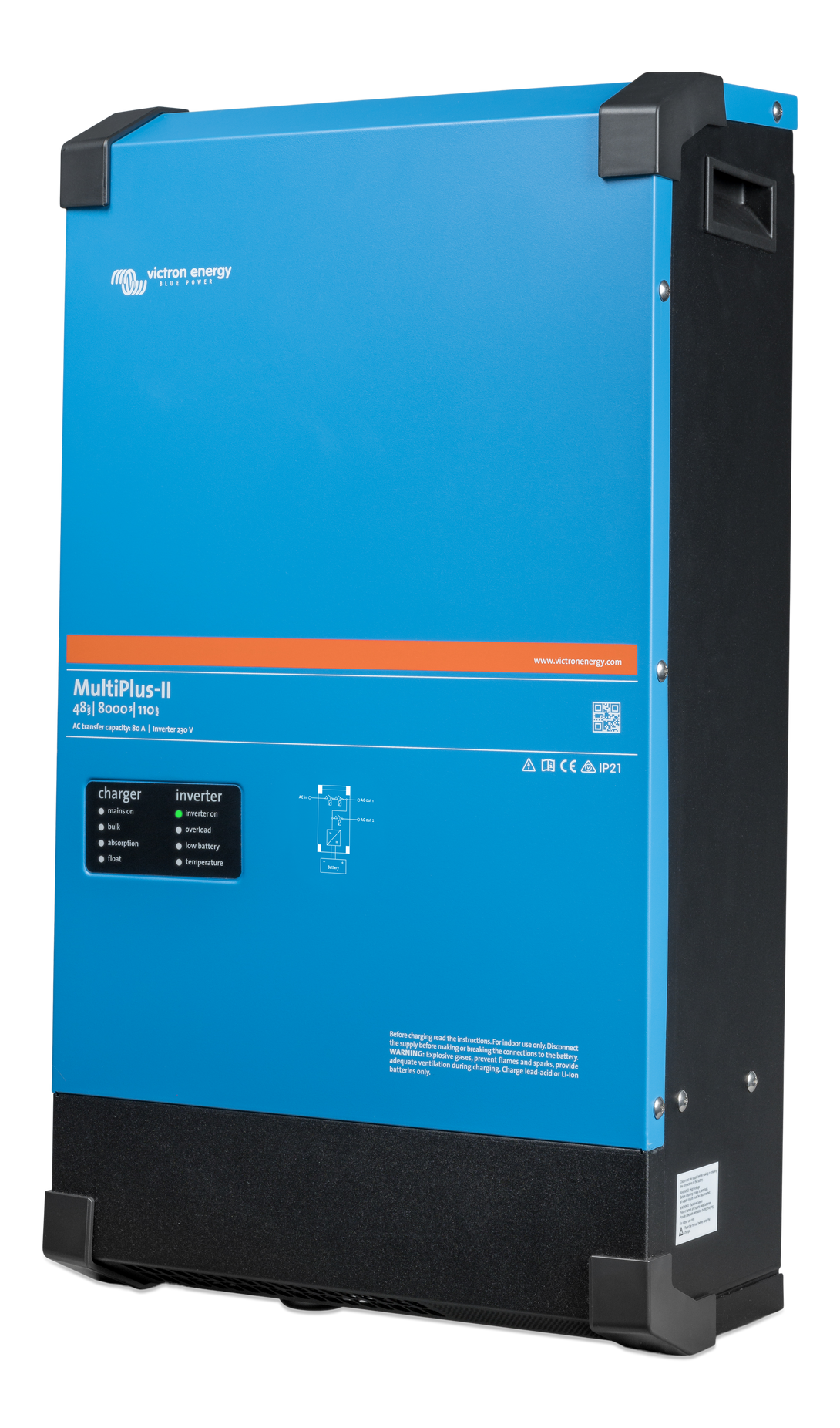

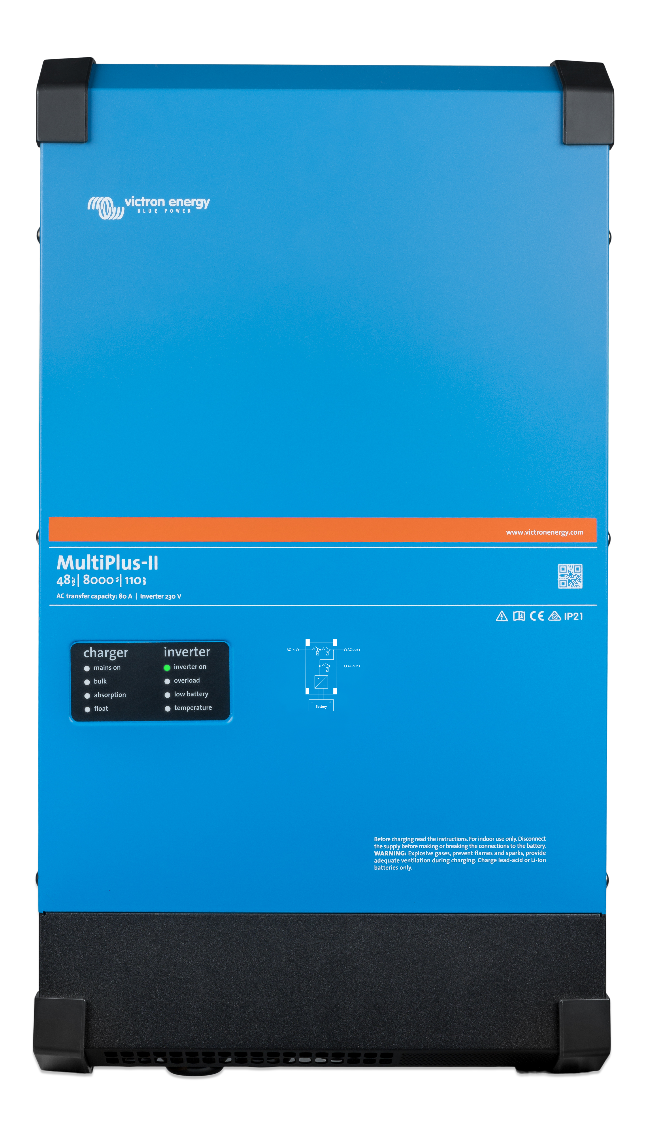

Victron MultiPlus-II 48/8000 – 48V 8000VA Inverter/Charger

Suitable for 48V systems. Max constant power 8000VA off-grid. Pure sine wave inverter & battery charger in one. Charge your batteries at 110A when connected to mains.
£3,812.40 £1,300.00 SAVE £2,512.40
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP482805000
IN STOCK
Receive between -
Product Details

Victrons new 48V inverter/charger for use off grid on or on grid with 110A AC - DC Charger


The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).  It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

PowerAssist
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems
The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control
Monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Multi to auto starting a back generator and more...

Product Specifications

Technical Specifications

Combined for SKUs: PMP482805000

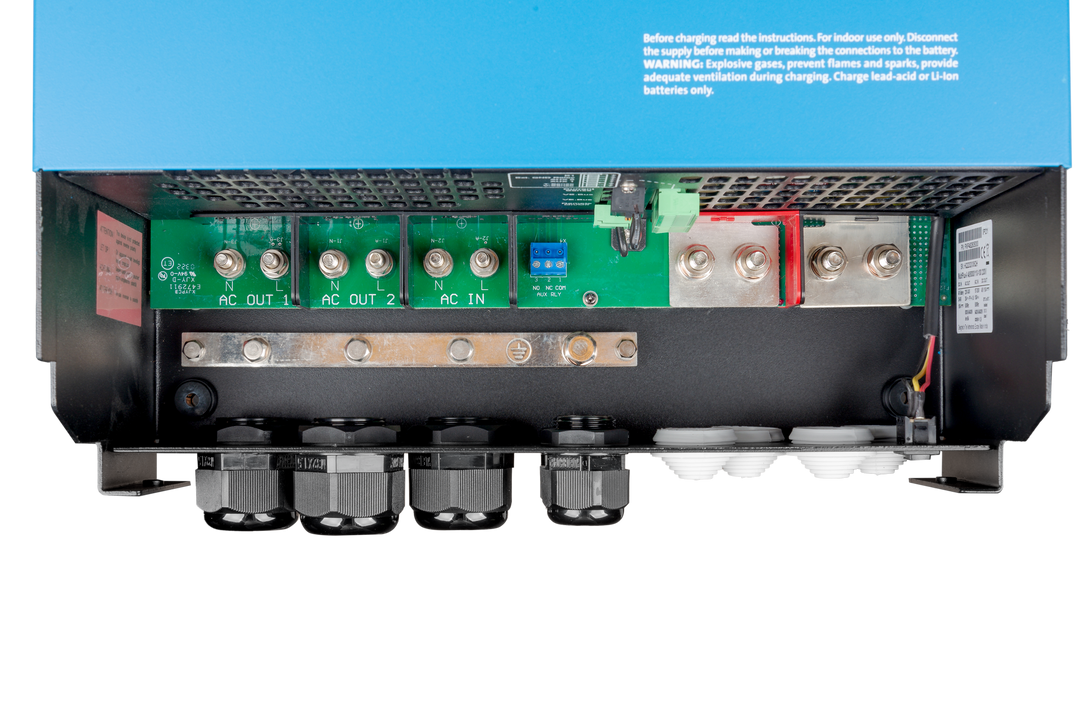

A CConnection Terminal Type: M6 bolts

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: Please consult the certificates on our website

Auxiliary Output: Yes

Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)

Battery Voltage Nominal: 48 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 57.6 VDC

Charge Voltage Float: 55.2 VDC

Charge Voltage Storage: 52.8 VDC

Colour: Blue (RAL 5012)

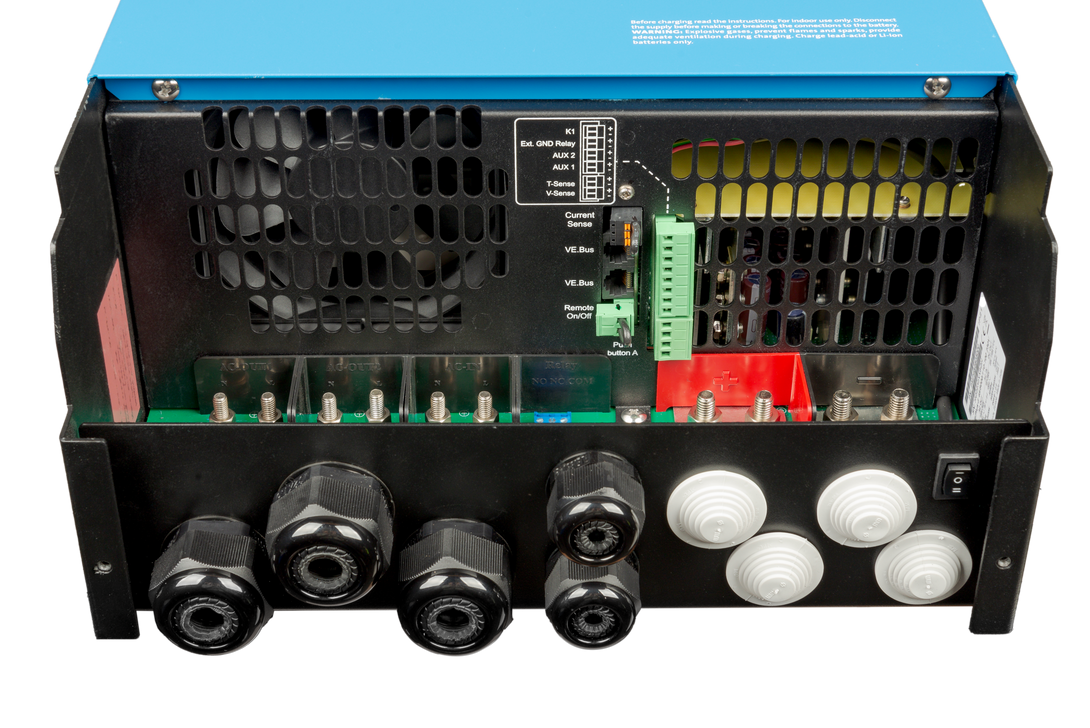

Communication Port: VE.Bus

Communication Port General: Yes

Computer Programming: Yes

Continuous Power (VA, 25°C): 8,000 VA

Continuous Power (W, 25°C): 6,400 W

Continuous Power (W, 40°C): 5,500 W

Continuous Power (W, 65°C): 4,000 W

DC Input Voltage Range: [38, 66] VDC

Depth: 206 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

External Ac Current Sensor: 50A or 100A (optional)

Fan Assist Cooling: Yes

Height: 642 mm

Material: Steel

Max Ac Input Current: 100 A

Max Altitude: 2,000 m

Max Apparent Feed-in Power: 8,000 VA

Max Efficiency: 95 %

Max Humidity: 95 %

Maximum Battery Charge Current: 110 A

Parallel Operation: Yes

Peak Power Rating: 15,000 W

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP22

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2

Temperature Sensor: Included

Three-phase Operation: Yes

Transfer Switch Current Rating: 100 A

Ups Standard: Please consult the certificates on our website

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 42 kg

Width: 363 mm

Zero Load Power: 29 W

Zero Load Power (AES): 19 W

Zero Load Power (Search): 3 W

Source: Victron


Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £150.
  • £5.99 for orders under £150.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Polic

Datasheets
Victron MultiPlus-II 48/8000 – 48V 8000VA Inverter/Charger - Manual
Victron MultiPlus-II 48/8000 – 48V 8000VA Inverter/Charger - Data Sheet
