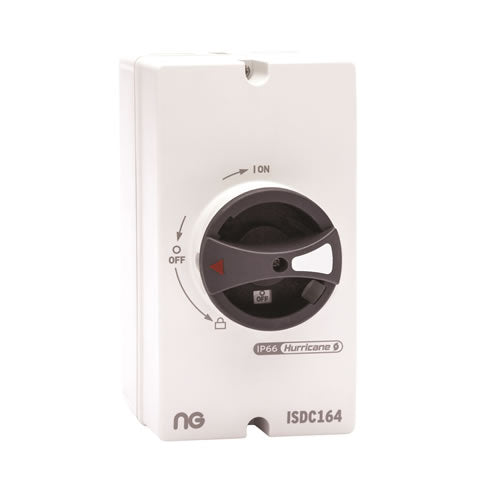

Niglon Enclosed DC Switch Disconnector - ISDC164
16 A, 4-pole rating with high insulation voltage (1,500 V DC) for demanding solar or DC systems
IP66/67 rated enclosure for reliable performance in outdoor or harsh environments
Compact form-factor: 160 mm H × 83 mm W × 86 mm D (116 mm with handle)
Built‐in padlock facility and MC4-compatible M12 knock-outs for enhanced installation flexibility
Manufactured by Niglon, trusted for quality and compliance with EN 60947-3 standard
or pay interest-free installments
IN STOCK
Receive between -
Product Details
The Niglon ISDC164-16A is a professional-grade enclosed DC switch disconnector tailored for solar and other DC-powered systems.
Key specifications:
- Rated current: 16 A (DC-21B)
- Insulation voltage: 1,500 V DC
- Number of poles: 4
- Dimensions: height 160 mm, width 83 mm, depth 86 mm; with handle, depth extends to 116 mm.
- Terminal capacity: cables 4 mm² (flex) / 6 mm² (stranded)
- Enclosure rating: IP66 / IP67 - ideal for outdoor and demanding installations.
- Durable polycarbonate casing, M12 knock-outs for MC4 connector compatibility, padlock provision in OFF position for safety and maintenance.
This switch disconnector meets the standard EN 60947-3 and has been certified for reliable performance in demanding DC switching environments.
Whether for a photovoltaic array, battery storage system or other DC setup, the ISDC164 offers secure isolation, robust build quality and suitability for outdoor or exposed mounting.
